Quick Details
-
Fork Length:
-
1200mm
-
Fork Width:
-
180mm
-
Overall Dimensions:
-
9590*3200*3800mm
-
Weight (KG):
-
40000 kg
-
Product Name:
-
30t counterbalance heavy duty forklift for port using
-
Engine brand:
-
Weichai engine
-
Engine model:
-
WP10G240E341 9.726L
-
Engine power:
-
178KW/2200rpm
-
Mast type:
-
Two stage/Three stage
-
Standard lifting height:
-
3500mm
-
Load Center:
-
600mm
-
Loading Capacity:
-
40000kg
-
Drive mode:
-
Front wheel driving, rear wheel steering
-
Tire type:
-
Pnenumatic tyre
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SOCMA
-
Fork Length:
-
1200mm
-
Fork Width:
-
180mm
-
Overall Dimensions:
-
9590*3200*3800mm
-
Weight (KG):
-
40000 kg
-
Product Name:
-
30t counterbalance heavy duty forklift for port using
-
Engine brand:
-
Weichai engine
-
Engine model:
-
WP10G240E341 9.726L
-
Engine power:
-
178KW/2200rpm
-
Mast type:
-
Two stage/Three stage
-
Standard lifting height:
-
3500mm
-
Load Center:
-
600mm
-
Loading Capacity:
-
40000kg
-
Drive mode:
-
Front wheel driving, rear wheel steering
-
Tire type:
-
Pnenumatic tyre

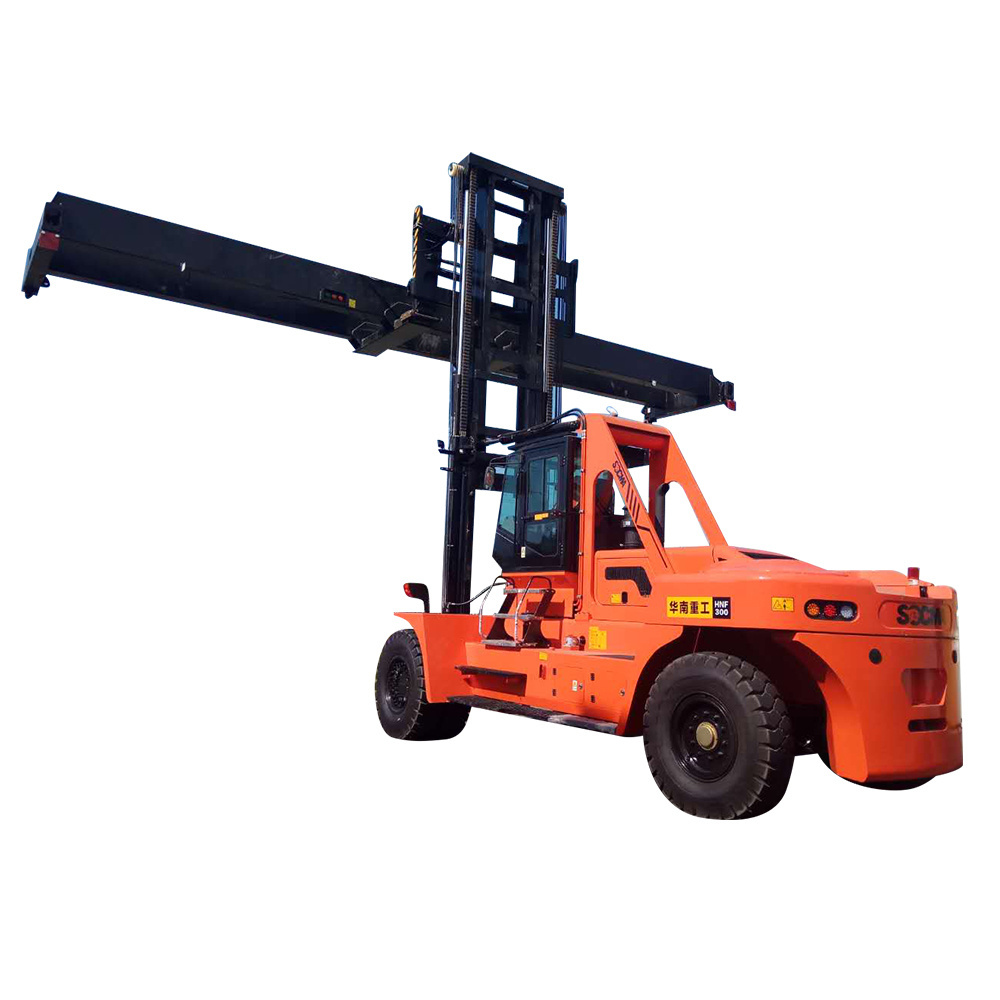

Product Overview
HNF-300
30 Ton Froklift
PRODUCT SPECIFICATIONS
|
Item
|
|
Units
|
HNF-300E
|
|
|
Features
|
Rated Load
|
Q（t）
|
30
|
|
|
|
Load center
|
c（mm）
|
1250
|
|
|
|
Wheelbase
|
y（mm）
|
4800
|
|
|
Weight
|
Weight
|
kg
|
40000
|
|
|
Chassis
|
Tyre Specs.:Front
|
|
14.00-24-32PR
|
|
|
|
Tyre Specs.:Rear
|
|
14.00-24-32PR
|
|
|
|
Tyres Qty,front/rear(X-drive wheels)
|
|
4\2
|
|
|
|
Wheel tread:Front
|
b10（mm）
|
2420
|
|
|
|
Wheel tread:Rear
|
b11（mm）
|
2390
|
|
|
Dimension
|
Mast/carriage tilt angle(front/rear)
|
Degree（°）
|
6\12
|
|
|
|
Mast height(fork lowering)
|
h1（mm）
|
3950
|
|
|
|
Mast lifting height
|
h3（mm）
|
3500
|
|
|
|
Free Lifting Height
|
|
|
|
|
|
Max.lifting height
|
h4（mm）
|
5700
|
|
|
|
Height to head guard(height to cab)
|
h6（mm）
|
3800
|
|
|
|
Overall height(with forks)
|
l1（mm）
|
9590
|
|
|
|
Fork front vertical surface to the rear end of the vehicle
|
l2（mm）
|
7150
|
|
|
|
Overall width
|
b1/b2（mm）
|
3200
|
|
|
|
Fork dimension
|
s/e（mm）
|
2440X320X110
|
|
|
|
Fork carriage width
|
b3（mm）
|
3100
|
|
|
|
Mast min ground clearance(with load)
|
m1（mm）
|
350
|
|
|
|
Wheelbase center min ground clearance(with load)
|
m2（mm）
|
410
|
|
|
|
Min.Turning radius
|
Wa（mm）
|
7260
|
|
|
|
Travel speed(with load/without load)
|
km/h
|
24/28
|
|
|
Performance
|
Max.lifting speed(with load/without load)
|
mm/s
|
260/280
|
|
|
|
Max.Lowering speed(with load/without load)
|
mm/s
|
250/180
|
|
|
|
Traction
|
kN
|
220
|
|
|
|
Gradeablity(with load/without load)
|
％
|
20/21
|
|
|
|
Driving brake
|
|
Hydraulic clamp disc
|
|
|
|
Engine brand/model
|
Optional one
|
Weichai engine
|
|
|
Engine
|
|
|
WP10G240E341
9.726L 178KW 2200rpm |
|
|
|
|
Optional two
|
GuangXi Cummins
|
|
|
|
|
|
QSL9.3-C240
9.3L 176KW 2200rpm |
|
|
|
Cylinder No.
|
|
6
|
|
|
Others
|
Transmission gears(Front/rear)
|
|
2\1
|
|
|
|
Attachments working pressure
|
bar
|
180
|
|
|
|
Attachments using oil amount
|
l/min
|
80
|
|
|
Turning Radius (Outside)
|
≤5550mm
|
|
|
|
|
Tire
|
Numbers (Front/Rear)
|
4/2
|
|
|
|
|
Tire Specifications (Front/Rear)
|
12.00-20/11.00-20
|
|
|
