Quick Details
-
Power Source:
-
Electric, Solar, Vehicle Power Supply
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Leader
-
Model Number:
-
RH-IR
-
Surface Temperature Range:
-
400~1000°C
-
Working life:
-
5000Hours
-
Outside Diameter:
-
8mm~50mm, also can be customized
-
Insulation:
-
Quartz tube
-
Length:
-
100mm~3000mm, also can be customized
-
Operation Methods:
-
Horizontai and Vertical
-
Heating Wire:
-
Tungsten wire, carbon fiber wire or alloy heating wire
-
Shape:
-
Straight, circle, U-shape or Customized
-
Colour:
-
Clear, red, half-white coated or half-golden coated
Quick Details
-
After-sales Service Provided:
-
Onsite Installation
-
Warranty:
-
1 Year
-
Application:
-
Car, RV, Outdoor, Hotel, Garage, Household
-
Power Source:
-
Electric, Solar, Vehicle Power Supply
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Leader
-
Model Number:
-
RH-IR
-
Surface Temperature Range:
-
400~1000°C
-
Working life:
-
5000Hours
-
Outside Diameter:
-
8mm~50mm, also can be customized
-
Insulation:
-
Quartz tube
-
Length:
-
100mm~3000mm, also can be customized
-
Operation Methods:
-
Horizontai and Vertical
-
Heating Wire:
-
Tungsten wire, carbon fiber wire or alloy heating wire
-
Shape:
-
Straight, circle, U-shape or Customized
-
Colour:
-
Clear, red, half-white coated or half-golden coated

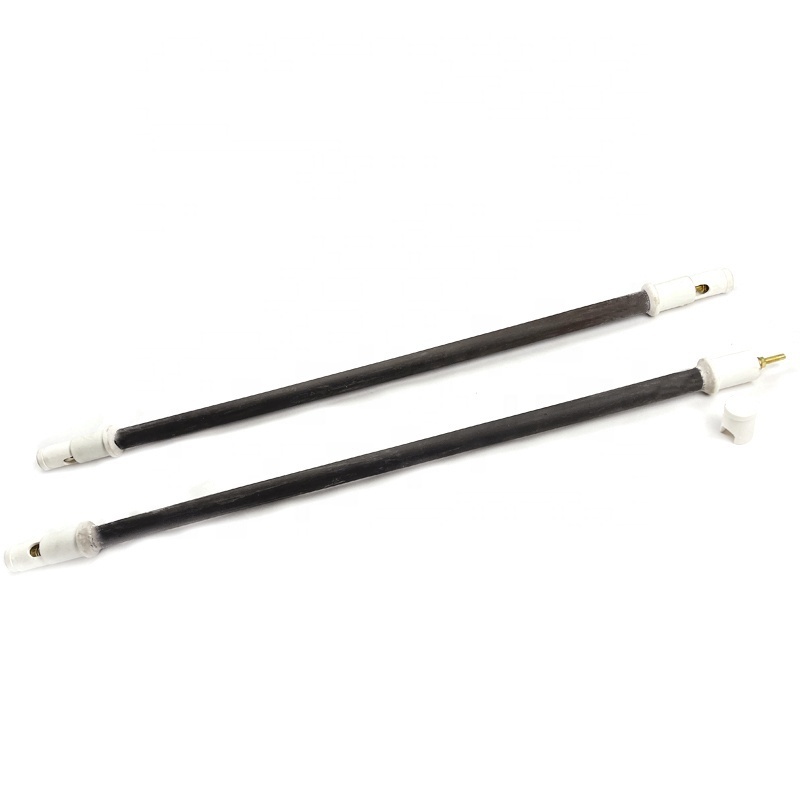

Product Description
● Infrared heating elements can be widely used for heating, drying and thermal insulation heating in the home appliance industry, industrial machinery and equipment, medical instruments and other fields.
● The shapes can be customised as: straight, round, U-shaped, M-shaped, NU-shaped, Ω-shaped and various other shapes.
● Quartz tube appearance can be customised as: transparent, frosted, ruby, gold plated, semi-gold plated, semi-white plated, etc.
● Customized parameters: Customized voltage range 5V-500V, power range 1W-9000W and other specifications.
● Infrared heating element main materials: carbon fibre heating wire, high purity quartz tube, high purity gas, high temperature resistant molybdenum metal
● Infrared heating element principle: energised to produce infrared rays and irradiate and heat surrounding objects.
● Advantages of the infrared heating element: rapid production of large quantities of near, medium and far infrared rays; quartz tube insulation, water and electricity separation, acid and alkali corrosion resistance, life expectancy up to 10,000 hours.
Product Paramenters
|
Voltage (V)
|
5V~500V; Customizable
|
|
Power rate (W)
|
Customizable
|
|
Power tolerance (%)
|
±3%
|
|
Length (mm)
|
Customizable
|
|
Pipe diameter φ (mm)
|
8．10．12．14．18．22．28．32mm
|
|
Length tolerance (mm)
|
±2mm
|
|
Pipe diameter tolerance (mm)
|
±0.05mm
|
|
Maximum heating temperature (℃)
|
1000℃
|
|
Electricity to heat conversion efficiency (%)
|
≥99%
|
|
Color temperature (K)
|
800~2500K
|
|
Average service life (H)
|
≥5000H
|
|
Leakage current (mA)
|
1.36 times voltage ≤0.5mA
|
|
Shape
|
U-shaped, Straight, Round, C-shaped and many other shapes available
|
|
Heating wire
|
Carbon Fiber and Nickel-chromium Aluminum wire Optional
|
|
Reflector
|
half white coated, gold coated
|
Details Images
Application
● Various heating and far-infrared health care industries such as life heaters, bathroom heaters, far-infrared physiotherapy, beauty equipment, etc.
● Food drying machinery, tea drying machinery, wig drying and other drying and drying equipment, as well as various far-infrared drying (drying) ovens.
● Various drying tunnels such as baking varnish, spray molding, and plastic equipment.
● Fields such as vegetable greenhouse thermal insulation planting, pump room drying and dehumidification.
● Household appliances such as disinfection cabinets, convection ovens, toasters, toasters, and food ovens.
● Various types of acid heating, chemical reaction kettles and other chemical industries.
......
How to order ?
Pls provide this informations as the following pictures:
1. Heater length : the total length of the heater
2. Heater Reflector :gold/ceramic/clear
3.Vottage :380V,240V, 220V,200V,110V and other can be customized.
4.Wattage :200W,250W and other can be customized.
5.Heater Tube Diameter.
if have the heater photos, pls send first
