Quick Details
-
Throat Depth (mm):
-
410 mm
-
Width of Working Table (mm):
-
200 mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HANSITUO
-
Year:
-
2024
-
Weight (KG):
-
13000
-
Motor Power (kw):
-
15 kw
-
Marketing Type:
-
New Product 2023
-
Main Electrical Components:
-
Schneider
-
Relay Switch:
-
OMRON
-
Switching Mode Power Supply:
-
Taiwan MEAN WELL
-
Ball Screw:
-
Taiwan HIWIN
-
Oil Cylinder:
-
Shanghai Heyan
-
0il Pump:
-
Sunny 0il Pump
-
Grating Ruler:
-
Italy GIVI
-
Hydraulic Valve:
-
German Bosch-Rexroth
-
System Program:
-
DA53T
Quick Details
-
Machine Type:
-
Synchronized
-
Length of Working Table (mm):
-
4100
-
Slider Stroke (mm):
-
200 mm
-
Throat Depth (mm):
-
410 mm
-
Width of Working Table (mm):
-
200 mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HANSITUO
-
Year:
-
2024
-
Weight (KG):
-
13000
-
Motor Power (kw):
-
15 kw
-
Marketing Type:
-
New Product 2023
-
Main Electrical Components:
-
Schneider
-
Relay Switch:
-
OMRON
-
Switching Mode Power Supply:
-
Taiwan MEAN WELL
-
Ball Screw:
-
Taiwan HIWIN
-
Oil Cylinder:
-
Shanghai Heyan
-
0il Pump:
-
Sunny 0il Pump
-
Grating Ruler:
-
Italy GIVI
-
Hydraulic Valve:
-
German Bosch-Rexroth
-
System Program:
-
DA53T

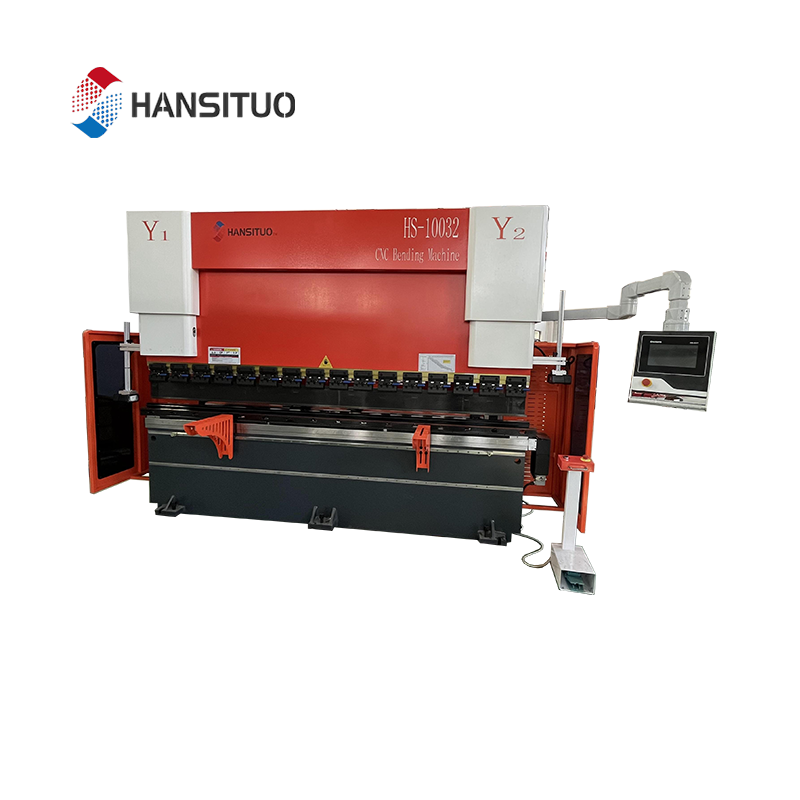

The machine body adopts an overall welded and machined structure, and the main components of the machine body are analyzed using ANSYS finite element analysis software to ensure the reliability and accuracy of the machine.
The numerical control system adopts a dedicated numerical control system for electro-hydraulic servo bending machines, which enables graphical programming of bending angles, angle correction compensation, automatic calculation and adjustment of bending pressure, automatic calculation of workbench deformation compensation, workpiece unfolding length, bottom pressing bending pressure, opening distance, automatic backstop compensation, and other functions.
--DA53T System
* "Hot-key”touch navigation
* 10.1" high resolution colour TFT
* Up to 4 axes (Y1,Y2 + 2 aux. axes)
* Crowning control
* Tool / material / product library
* Servo and frequency inverter control
* Advanced Y-axis control algorithms forclosed-loop as well as open-loop valves
* TandemLink (option)
* USB memory stick interfacing
* Profile-T offline software
* "Hot-key”touch navigation
* 10.1" high resolution colour TFT
* Up to 4 axes (Y1,Y2 + 2 aux. axes)
* Crowning control
* Tool / material / product library
* Servo and frequency inverter control
* Advanced Y-axis control algorithms forclosed-loop as well as open-loop valves
* TandemLink (option)
* USB memory stick interfacing
* Profile-T offline software
|
No.
|
Part Name
|
Manufacturer's Brand
|
Optional Brands
|
|
1
|
System Program
|
DA53T
|
EL15/ CT12/ S630/DA66T/DA58T/DA69T……
|
|
2
|
Hydraulic Valve
|
German Bosch-Rexroth
|
German HAWE/Shanghai Dengpai……
|
|
3
|
Grating Ruler
|
Italy GIVI
|
|
|
4
|
0il Pump
|
United States FIRST
|
|
|
5
|
Oil Cylinder
|
Shanghai Heyan
|
|
|
6
|
Ball Screw
|
Taiwan HIWIN
|
|
|
7
|
Oil Seal
|
Japan NOK
|
|
|
8
|
Bearing
|
Japan NSK
|
|
|
9
|
Servo Drive
|
Inovance
|
VEICHI
|
|
10
|
Servo Motor
|
Inovance
|
VEICHI
|
|
11
|
Switching Mode Power Supply
|
Taiwan MEAN WELL
|
|
|
12
|
Relay Switch
|
OMRON
|
|
|
13
|
Main Electrical Components
|
Schneider
|
|
|
14
|
Oil Tube
|
High Temperature And High Pressure Resistant Taper Pipe
|
|
|
15
|
Hydraulic motor
|
Made In China
|
|
|
16
|
Transformer
|
Made In China
|
|
Q:
How to get a accurate quotation from us ?
A:
Please provide us the details of material , max thickness and max width .
A: We are a manufacturer .
Q:Can you do OEM service ?
Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q: How long is your delivery time?
A: The standard model is 15-30 days, the customized model is 30-60 days.
Q: How to choose the model of machines?
A: The thickness, width and material.
Q: What is your term of payment ?
A:30% T/T in advance, the balance before shipment.
Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets and h
otel expenses and daily salary
.
