Quick Details
-
Controller Type:
-
MPPT, MPPT Solar Controller
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE, ROHS,EMC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Anern
-
Model Number:
-
AN-MPSG-T
-
Output Voltage (V):
-
24V/48V
-
Output Frequency:
-
50~60HZ, 50/60HZ
-
Work Time (h):
-
48 Hours
-
RATED POWER:
-
3000W/5000W
-
Battery Voltage:
-
24V/48V
-
Output Wave:
-
Pure Sine Wave
-
Built-in Lithium Battery:
-
2600WH(Single battery box)~9000WH(Double battery box)
-
Communication:
-
WIFI(optional)
-
MPPT efficiency:
-
≥99%
-
Display:
-
Touch Screen
-
Rated Charge Current:
-
30A(MPPT)~60A(MPPT)
-
Keyword:
-
5kw commercial solar generator
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
MPPT, MPPT Solar Controller
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE, ROHS,EMC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Anern
-
Model Number:
-
AN-MPSG-T
-
Output Voltage (V):
-
24V/48V
-
Output Frequency:
-
50~60HZ, 50/60HZ
-
Work Time (h):
-
48 Hours
-
RATED POWER:
-
3000W/5000W
-
Battery Voltage:
-
24V/48V
-
Output Wave:
-
Pure Sine Wave
-
Built-in Lithium Battery:
-
2600WH(Single battery box)~9000WH(Double battery box)
-
Communication:
-
WIFI(optional)
-
MPPT efficiency:
-
≥99%
-
Display:
-
Touch Screen
-
Rated Charge Current:
-
30A(MPPT)~60A(MPPT)
-
Keyword:
-
5kw commercial solar generator
Product Information
Product Advantage:
1. Excellent performance because of double CPU intelligent control technology;
2. 6000 cycles lithium battery and has a 5 years service life ;
3. MPPT Controller greatly improving the charging efficiency more than 20%;
4. Touch screen can view system data more convenient;
5. 2 working modes are programmable. The Grid power first mode / battery power first mode.
6. WiFI Smart Monitoring: The solar storage system status would be shown by mobile phone APP or webpage of computer.
7. Anern exclusively designed the appearance of the model, outer shell is made of flame-retardant materials with high safety.
Product Specification:
|
Model
|
MPSG-T-S3000
|
MPSG-T-S5000
|
MPSG-T-D5000
|
|||
|
Battery Voltage
|
24V
|
48V
|
48V
|
|||
|
Inverter
|
|
|
|
|||
|
RATED POWER
|
3000W
|
5000W
|
5000W
|
|||
|
Input Voltage Range
|
170-275VAC
|
|
|
|||
|
Input Frequency
|
45-65
|
|
|
|||
|
Output Voltage
|
110/220
|
|
|
|||
|
Output Frequency
|
50/60
|
|
|
|||
|
Output Wave
|
Pure Sine Wave
|
|
|
|||
|
Speficifation Of Built-in Lithium Battery
|
2600WH(Single battery box)
|
4500WH(Single battery box)
|
9000WH(Double battery box)
|
|||
|
Communication
|
WIFI(optional)
|
|
|
|||
|
MPPT Solar Input
|
|
|
|
|||
|
Max. PV Power
|
1500W
|
1500W
|
3000W
|
|||
|
Range Of Charging Voltage
|
30-150VDC
|
60-150VDC
|
60-150VDC
|
|||
|
Rated Charge Current
|
60A(MPPT)
|
30A(MPPT)
|
60A(MPPT)
|
|||
|
MPPT efficiency
|
≥99%
|
|
|
|||
|
Voltage For Floating Charge
|
24.9VDC
|
49.8VDC
|
49.8VDC
|
|||
|
Low Voltage Recovery Voltage
|
23.4VDC
|
46.8VDC
|
46.8VDC
|
|||
|
Low Voltage Protecton Voltage
|
18.6VDC
|
37.2VDC
|
37.2VDC
|
|||
|
DC Output
|
|
|
|
|||
|
Mobile output
|
TYPE C-PD60 / USB QC3.0 / USB-5VDC 2.4A/2 units
|
|
|
|||
|
12VDC Output Ports
|
2 units /MAX 2A
|
|
|
|||
|
PHYSICAL
|
|
|
|
|||
|
Heat Dissipation/Cooling
|
Temperature control by intelligent exhaust fan
|
|
|
|||
|
Display
|
Touch Screen
|
|
|
|||
|
External Size：W*D*H（mm）
|
536*480*505mm
|
|
536*480*735mm
|
|||
Product Details
Touch Screen
Touch Screen can view system data more convenient.
Double CPU.
Excellent performance because of double CPU intelligent control technology.
Lithium battery
6000 cycles lithium battery and has a 5 years service life.
MPPT Controller.
MPPT Controller greatlly improving the charging efficiency more than 20%.
WIFI Smart monitoring
The system's working status would be shown by mobile phone APP through wifi module.

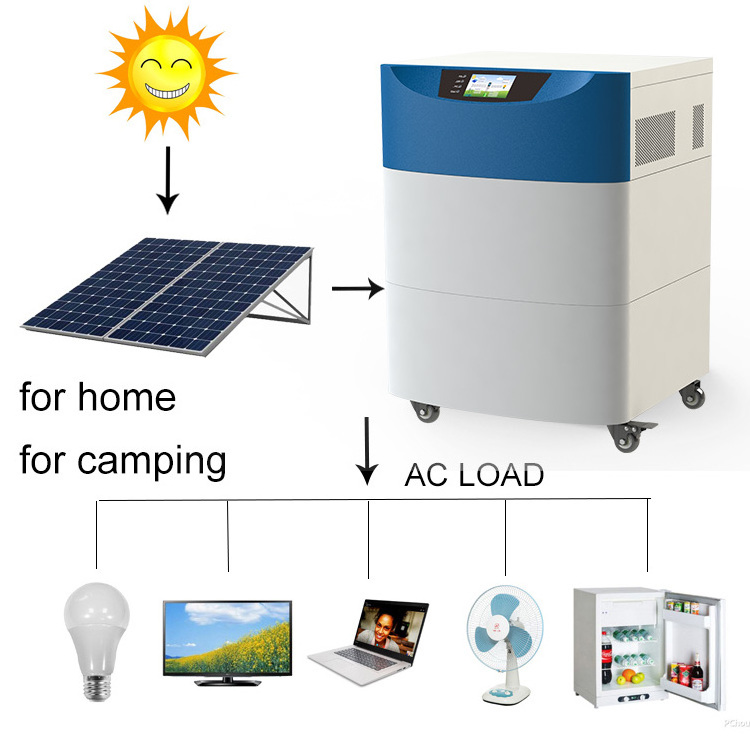

Application
Certifications
Anern products are
ISO9001, CE, ROHS,TUV, ISO, FC approved and MSDS, UN38.3
for lithium battery, meeting various certification requirements for different countries, Our products have been exported to more than 200 countries and regions.We also have participated in many important governmental projects over the world.
