Quick Details
-
Brand Name:
-
SOMPOM
-
Model Number:
-
OEM
-
Output Frequency:
-
N/A
-
Output Current:
-
OEM
-
Protections:
-
Shortcuit Overtemp Overload Overvolt
-
Efficiency:
-
>85%
-
Type:
-
Constant Voltage
-
Ripple/noise:
-
<80mv
-
Warranty:
-
2 Years
-
MOQ:
-
1 Piece
-
Certification:
-
CE RoHS ISO9001 FCC
-
Material:
-
Aluminum Housing
-
Cooling:
-
Air Cooling
-
Packing:
-
50-100PCS
Quick Details
-
Input Voltage:
-
85-220V AC
-
Output Voltage:
-
12V/24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SOMPOM
-
Model Number:
-
OEM
-
Output Frequency:
-
N/A
-
Output Current:
-
OEM
-
Protections:
-
Shortcuit Overtemp Overload Overvolt
-
Efficiency:
-
>85%
-
Type:
-
Constant Voltage
-
Ripple/noise:
-
<80mv
-
Warranty:
-
2 Years
-
MOQ:
-
1 Piece
-
Certification:
-
CE RoHS ISO9001 FCC
-
Material:
-
Aluminum Housing
-
Cooling:
-
Air Cooling
-
Packing:
-
50-100PCS
Product Description

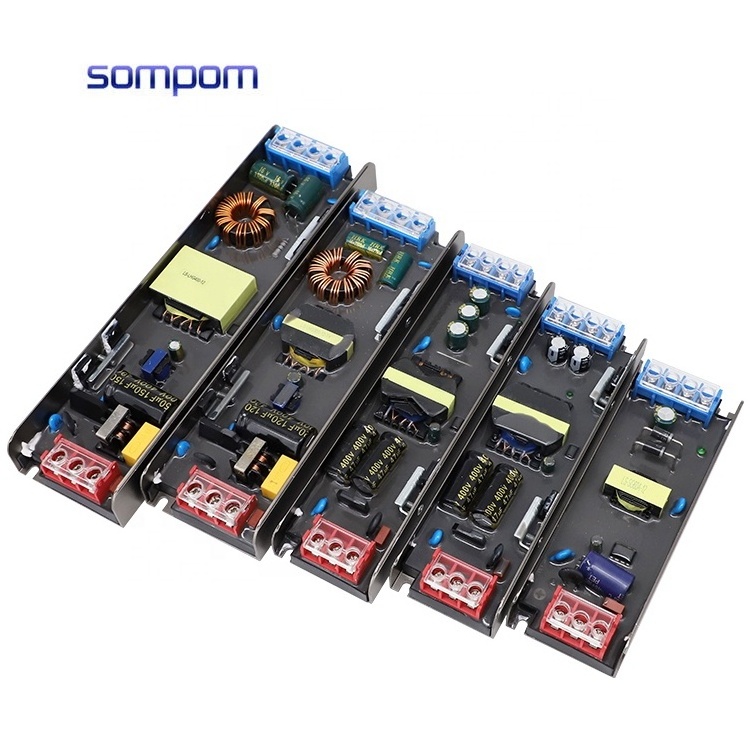

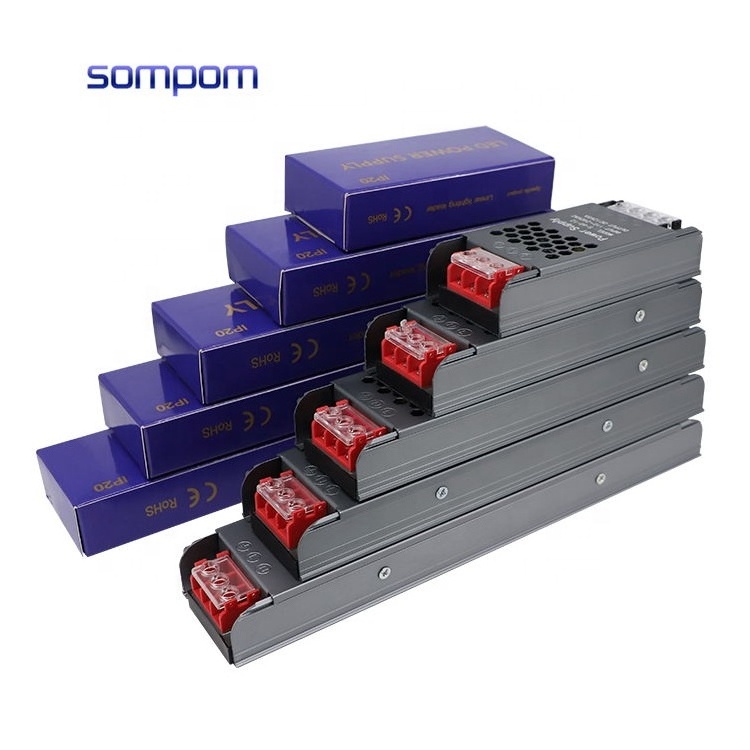

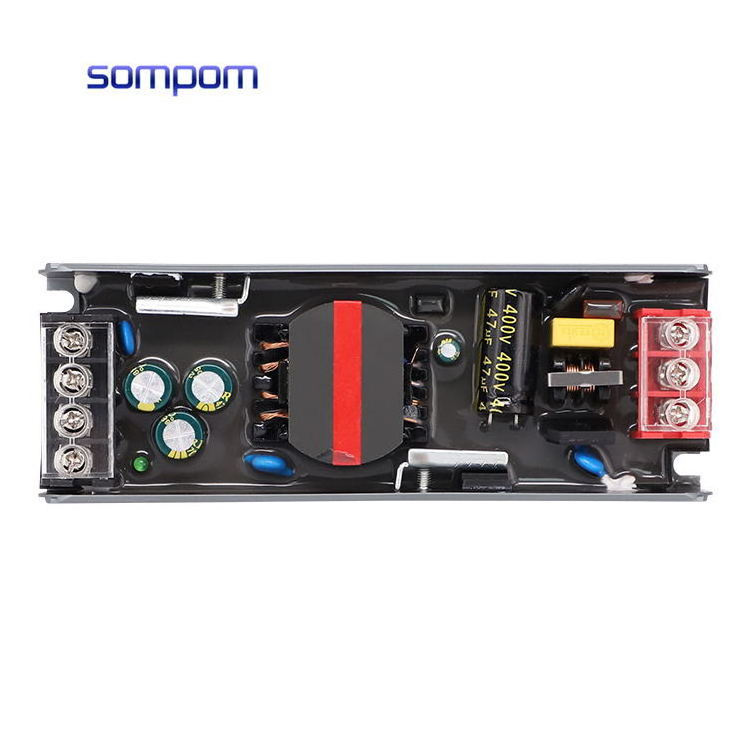

SOMPOM Slim&Thin Switching Power Supply
|
DC Output
|
DC Voltage: 12V 24V
|
|
DC Output
|
Ripple & Noise: 80MV
|
|
|
DC Adjustable Range: ±10% Rated Voltage
|
|
|
Voltage Tolerance: ±2.0%
|
|
|
Line Regulation: ±0.5%
|
|
|
Load Regulation: ±1%
|
|
|
Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC
|
|
AC Input
|
AC Voltage Range: 110-220VAC
|
|
|
Frequency Range: 47-63Hz
|
|
|
Efficiency:>85%
|
|
|
AC Current:0.65A/115V 0.4A/230V
|
|
|
AC Inrush Current:20A/115V 40A/230V
|
|
|
Leakage Current< 0.5mA /240VAC
|
|
Protection
|
Over-load: 105%-150% hiccup mode,Auto-recovery
|
|
|
Over-voltage: 115%-135% Cut Off the Output,Auto-recovery
|
|
|
Over-temp. : Shut down O/P voltage, Auto-recovery
|
|
Environment
|
Working temp.: -10~ +60C° (Refer to output load derating curve)
|
|
|
Working Humidity:20 ~ 90% RH, non-condensing
|
|
|
Storage Temp.: -10~ +60C°
|
|
|
Storage Humidity: 10 ~ 95% RH
|
|
Safety
|
Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH
|
|
|
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
|
Safety standards: CE,RoHS,FCC,ISO9001
|
SOMPOM Resources And Capabilities!
1.Technical Support.
Factory trained&100% power focused engineering team. Experienced application support. Highest qualifications of power products knowledge.
2.Warehousing.
Expansive power supply inventory. Quickly delivery. Professional warehouse logistics team to accurately fulfill orders. Fast shipping all over the world !
3.Competitive Price.
SOMPOM focus on Power Supply more than 20 year, lots of products ready to ship.
Related products
ABOUT US
SOMPOM
is focusing on offering LED switch power, waterproof switch power,rainproof switch power,AC-DC power adapter and CCTV camera power. Withe the
over load protection, over voltage protection and high temperature protection
.
SOMPOM
wins customer’s favor by its high efficiency, reliability and long life span. Each of the switch power is extremely safe and stable after
5 times testing
. All of our powers have the
ISO9001,CE,FC,ROHS
certification. Our switch powers are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting engineering.
Our certificate
FAQ
Q1:What is your MOQ of switch power?
A:Our MOQ is 1 piece.
Q2:How many year warranty of your Led driver?
A:Two years.
Q3:Do you offer sample of power?
A:Yes,We offer free sample,but you need pay the shippment.
Q4:Do you have switch power factory?
A:Yes,we are OEM & ODM manufacturer in Dongguan.
Q5:Is your power with copper transform or something?
A:We can do with complete copper transform and copper cladding aluminum.
Q6:What is your MOQ of switch power?
A:Yes,we have CE,RoHS,FCC and ISO9001 right now.If you need other certification with large order,
We can apply for it.
A:Our MOQ is 1 piece.
Q2:How many year warranty of your Led driver?
A:Two years.
Q3:Do you offer sample of power?
A:Yes,We offer free sample,but you need pay the shippment.
Q4:Do you have switch power factory?
A:Yes,we are OEM & ODM manufacturer in Dongguan.
Q5:Is your power with copper transform or something?
A:We can do with complete copper transform and copper cladding aluminum.
Q6:What is your MOQ of switch power?
A:Yes,we have CE,RoHS,FCC and ISO9001 right now.If you need other certification with large order,
We can apply for it.
