Quick Details
-
Brand Name:
-
HW
-
Use:
-
Enterprise
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
68 Gbit/s
-
Forwarding Performance:
-
15 Mpps
-
Product Family:
-
Campus Switch & WLAN
-
Pack Dimension(D*W*H mm):
-
370*380*90
-
Function:
-
LACP, POE, QoS, SNMP, Stackable, VLAN Support
-
Product Line:
-
Enterprise Networking
-
Downlink:
-
8 x 10/100/1,000 Base-T electrical ports
-
Uplink:
-
2 x 1,000 Base-X optical ports
Quick Details
-
Type:
-
Enterprise Switch
-
Model Number:
-
S1720-10GW-2P
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HW
-
Use:
-
Enterprise
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
68 Gbit/s
-
Forwarding Performance:
-
15 Mpps
-
Product Family:
-
Campus Switch & WLAN
-
Pack Dimension(D*W*H mm):
-
370*380*90
-
Function:
-
LACP, POE, QoS, SNMP, Stackable, VLAN Support
-
Product Line:
-
Enterprise Networking
-
Downlink:
-
8 x 10/100/1,000 Base-T electrical ports
-
Uplink:
-
2 x 1,000 Base-X optical ports

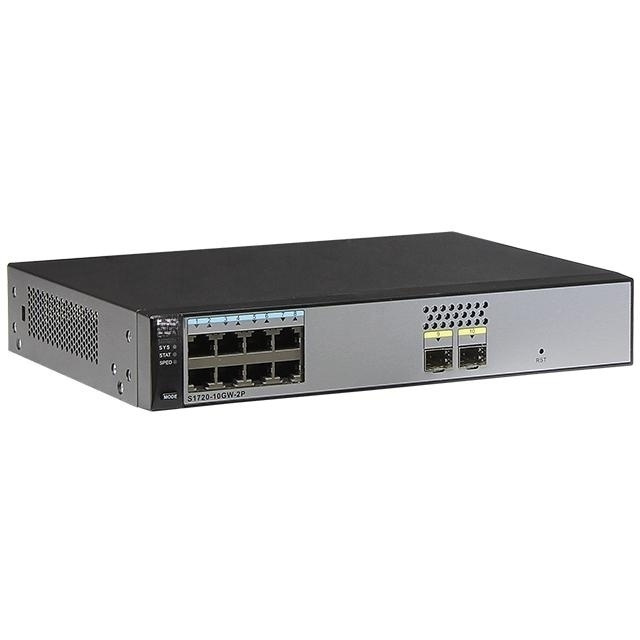

S1720 Series S1720-10GW-2P 8 Ports Ethernet Switch
The S1700 series enterprise switches (S1700) are next-generation energy-saving Ethernet access switches. The S1700 uses high-performance hardware, which offers a wide array of features to help customers build secure, reliable, high-performance networks. The S1700 is easy to install and maintain, and is ideal for small-sized and medium-sized enterprises, Internet cafes, hotels, and schools.
The S1700 consists of unmanaged switches, web-managed switches, and web/SNMP-based switches:
Unmanaged switches include the S1700-24-AC, S1700-52R-2T2P-AC, S1724G, S1700-24GR, S1700-16G, S1700-28GR-4X, and S1700-52GR-4X.
The web-managed switches include the S1720-10GW-2P, S1720-10GW-PWR-2P, S1720-28GWR-4P, S1720-28GWR-4X, S1720-28GWR-PWR-4P, S1720-28GWR-PWR-4X, S1720-28GWR-PWR-4TP, S1720-52GWR-4P, S1720-52GWR-4X, S1720-52GWR-PWR-4P, S1720-52GWR-PWR-4X, S1720X-16XWR, and S1720X-32XWR.
Web/SNMP-based switches include the S1700-28FR-2T2P-AC, S1700-28GFR-4P-AC, S1700-52FR-2T2P-AC, S1700-52GFR-4P-AC, S1720-10GW-2P, S1720-28GFR-4TP, S1720-10GW-2P-E, S1720-10GW-PWR-2P-E, S1720-28GWR-4P-E, S1720-28GWR-4X-E, S1720-28GWR-PWR-4P-E, S1720-28GWR-PWR-4TP-E, S1720-28GWR-PWR-4X-E, S1720-52GWR-4P-E, S1720-52GWR-4X-E, S1720-52GWR-PWR-4P-E, S1720-52GWR-PWR-4X-E, S1720X-16XWR-E, and S1720X-32XWR-E.
| Item | S1720-10GW-2P S1720-10GW-PWR-2P | |
| Downlink port | 8 Ethernet 10/100/1000 ports | |
| Uplink port | 2 Gig SFP | |
| MAC ADDRESS TABLE | 16K MAC | |
| Routing Feature | supportIPv4,IPv6 static routing | |
| Dimensions mm (W*D*H)) | 250×180×43.6 320×220×43.6(PoE) | |
- Trade terms: FOB, CIF , CFR , etc
- Price Terms:T/T,Western Union,Paypal,RMB
- Payment Terms: T/T in advance
- MOQ: 1 pc
- Port: Shanghai
- Lead time: Within 5-45 working days after receipt payment.(According to configuration)
- Shipment: Express, Air, Sea
- Sample availability: Yes (not free)
-
Package information: Standard carton package with the original package
