Material : Limestone
Max feeding size : 630mm
Output size : 0-5mm 5-20mm 20-40mm
This is 100 ton per hour limestone crushing and screening production line , max feeding size 750mm, final product size 0-5mm 5-20mm 20-40mm, primary crusher is Pe600x900 jaw crusher, secondary crusher is PF1315 impact crusher . this design only suitable
to crush soft stone like limestone concrete etc.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Hysan
-
Dimension(L*W*H):
-
2400*1920*2520
-
Weight:
-
9.45 KG
-
Name:
-
PF1214 PF1315 Secondary Hard Stone Impact Crusher
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Keyword:
-
impact crusher price
-
Installation:
-
Engineer Guide
-
Color:
-
Red
-
Quality:
-
Advanced Technology
-
Feeding size:
-
0-350mm
-
Output size:
-
0-40mm
-
Usage:
-
Mining Crushing
-
Market:
-
Global
Quick Details
-
Application:
-
stone crusher
-
Capacity(t/h):
-
30-280t/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hysan
-
Dimension(L*W*H):
-
2400*1920*2520
-
Weight:
-
9.45 KG
-
Name:
-
PF1214 PF1315 Secondary Hard Stone Impact Crusher
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Keyword:
-
impact crusher price
-
Installation:
-
Engineer Guide
-
Color:
-
Red
-
Quality:
-
Advanced Technology
-
Feeding size:
-
0-350mm
-
Output size:
-
0-40mm
-
Usage:
-
Mining Crushing
-
Market:
-
Global
Product Overview

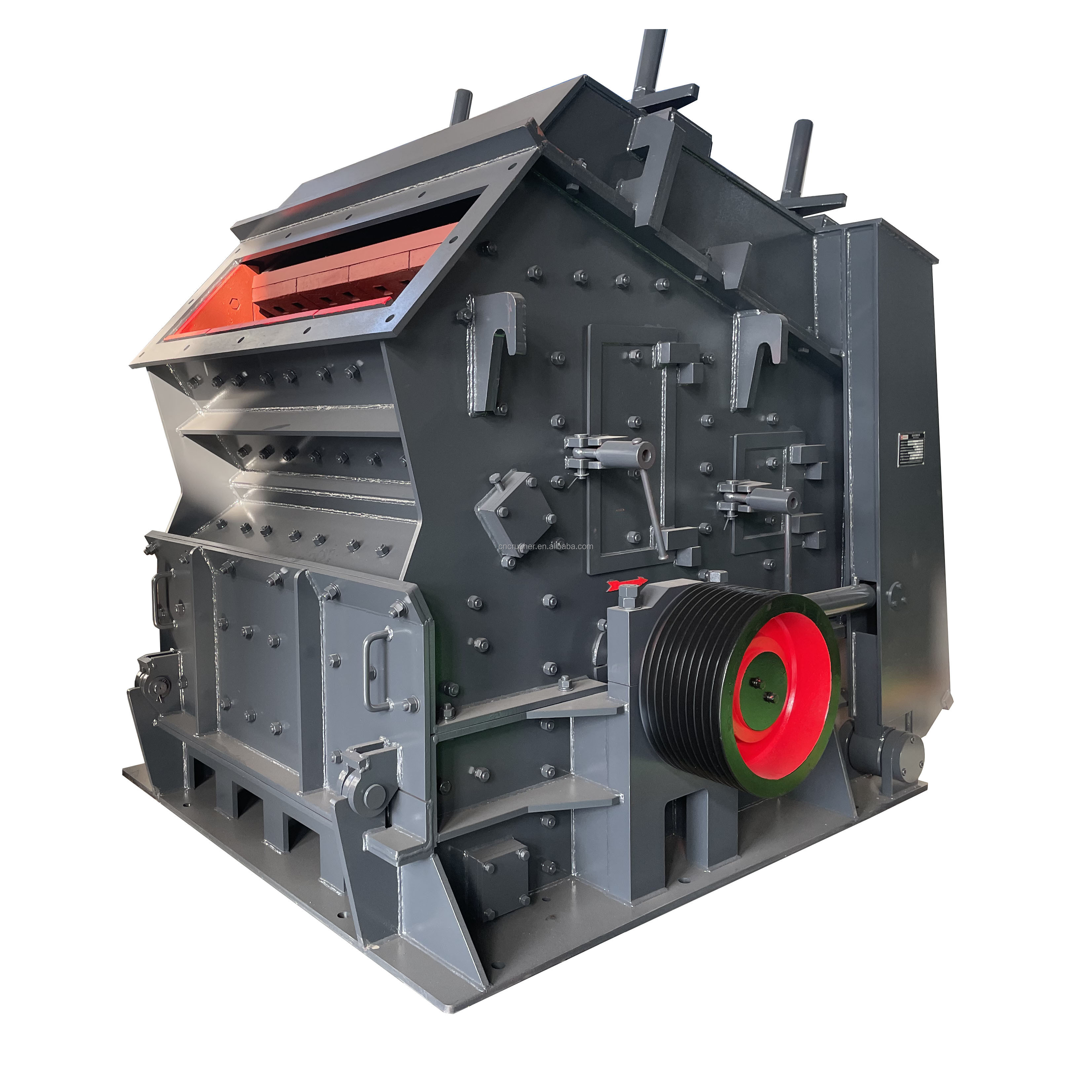

Primary Limestone Impact Crusher PF1214 PF1315 Secondary Hard Stone Impact Crusher
Impact type stone crusher is what we often say impact crusher machine, the main characteristic is large crushing ratio, low energy consumption, commonly used in the secondary crushing stage, is a crusher recommended for the processing of fine materials, The popular models of impact crusher are: 1010, 1210, 1214, 1315, 1320, 1820, etc. The 1315 type of impact breaker is the most popular choice by customers. The reason why it is called 1315 impact breaker is that it is equipped with a rotor specification of φ1320 ×1500mm. The larger the rotor, the stronger its production capacity.
professional Impact Crusher / counterattack /impactor /impact rotory crusher for sale
Impact crushers are simplified crushing process, simple structure, easy to manufacture.
This crusher can crush materials with size smaller than 500mm and resisting strength less than 350MPa, such as granite, limestone, and concrete aggregate, etc.
This crusher can crush materials with size smaller than 500mm and resisting strength less than 350MPa, such as granite, limestone, and concrete aggregate, etc.
PRODUCT SPECIFICATIONS
|
Model
|
Specification
|
Max Input szie
(mm)
|
Output size(mm)
|
Capacity(t/h)
|
Motor Power(kw)
|
Overall size
(mm)
|
|
PF-1010
|
1000X1000
|
250
|
0-80
|
30-60
|
55-90
|
2400*1920*2520
|
|
PF-1210
|
1250X1050
|
300
|
0-80
|
60-100
|
90-132
|
2700*2100*2850
|
|
PF-1214
|
1250X1400
|
300
|
0-80
|
70-140
|
132-185
|
2700*2400*2850
|
|
PF-1315
|
1325X1500
|
300
|
0-80
|
100-150
|
220
|
3200*2750*2600
|
|
PF-1320
|
1325X2000
|
400
|
0-80
|
180-320
|
280
|
3340*3200*2880
|
|
PF-1515
|
1500X1500
|
350
|
0-80
|
180-280
|
280
|
3600*2850*3350
|
|
PF-1620
|
1600X2000
|
400
|
0-80
|
350-400
|
250x2
|
3590*3520*3560
|
PRODUCT CONFIGURATION
Impact crusher wear parts
Impact crusher blow bar
Impact crusher rotor
Impact crusher
SALES AND SERVICE NETWORK
PF1010 impact crusher and spares delivery for Philippines
Successful Project
Impact crusher machine is mainly used for the crushing of soft materials, using the hitting crushing principle, the finished product of good grain shape, less powder, rarely there will be trouble, can save customer maintenance costs.
Impact crusher can be widely used in water conservancy and hydro power, high-speed railway, building materials mine and other basic construction industries for building sand and stone aggregate processing crusher urban construction waste treatment of coarse, medium and fine crushing operation. It can be used in fixed production line and mobile production line with other crushing equipment.
Impact crusher can be widely used in water conservancy and hydro power, high-speed railway, building materials mine and other basic construction industries for building sand and stone aggregate processing crusher urban construction waste treatment of coarse, medium and fine crushing operation. It can be used in fixed production line and mobile production line with other crushing equipment.
Limestone crushing plant
Packaging & Shipping
The machine is nude packing , motor and other accessories are packing in wooden box
