- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1850*950*1650mm
-
Weight:
-
590 KG
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Online Support
-
Raw material:
-
Oil Seeds
-
Product name:
-
Oli Press Machine
-
Function:
-
Making Edible Oil
-
Name:
-
Oil Refinery Equipment
-
Application:
-
Edible Oil Production
-
Advantage:
-
Energy Saving
-
Keyword:
-
Mini Oil Expeller
-
Feature:
-
High Oil Yield Efficiency
-
Material:
-
304 Stainless Steel
Quick Details
-
Max Capacity:
-
100KG/H
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PANDA
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1850*950*1650mm
-
Weight:
-
590 KG
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Online Support
-
Raw material:
-
Oil Seeds
-
Product name:
-
Oli Press Machine
-
Function:
-
Making Edible Oil
-
Name:
-
Oil Refinery Equipment
-
Application:
-
Edible Oil Production
-
Advantage:
-
Energy Saving
-
Keyword:
-
Mini Oil Expeller
-
Feature:
-
High Oil Yield Efficiency
-
Material:
-
304 Stainless Steel

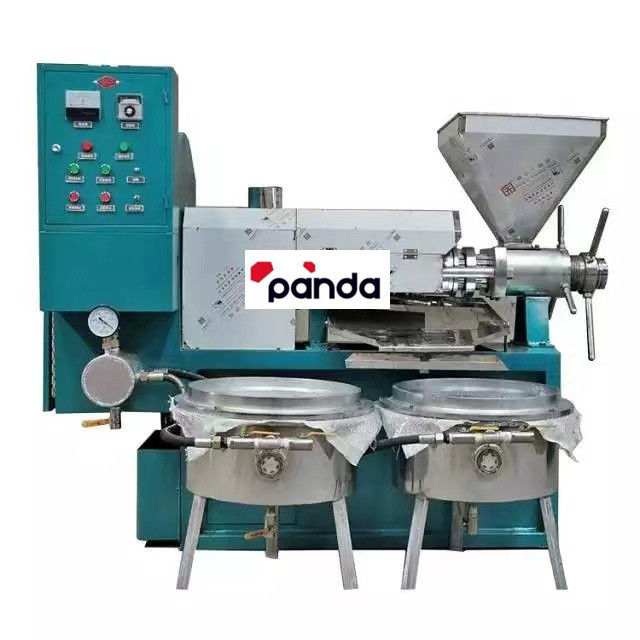

Product show
|
Raw material
|
castor, mustard,soybean,flaxseed,hemp,peanut oil
|
|
Oil yield
|
99%
|
|
Material
|
Iron, stainless steel
|
|
Application
|
Edible oil production
|
|
Capacity
|
100kg/hour
|
|
Warranty
|
12 Months
|
|
Function
|
Making Edible Oil
|
|
Advantage
|
Energy Saving
|
|
Heater
|
include
|
|
Electricity box
|
include
|
|
Product Keywords
|
vegetable spiral type oil press,vegetable seeds oil press,vegetable seeds edible oil press
|
Products Description
Features:
1.This automatic screw oil press machine is the quite advanced one among the processing machinery of oil plants .
2.It can be applied to the coconuts, olive, sunflower, soybean,cotton seeds , tee seeds rice bran, flaxseeds, sesame, peanuts,
rape, cocoa,etc.
This type of automatic screw oil press equipment is able to do both cold press and hot press.
Principle and Structure of panda oil press machine:
Screw expeller pressing is to separate the oil from oil bearing materials by the pressing power which comes from the change of
chamber volume, drive from screw worm, resistance of curve teeth at press rings and extrusion friction between oil materials.
Under the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings.
Either big scale and small scale of screw oil expeller, they have similar theories in screw expeller pressing. Because the screw
type seed oil expeller is mainly used by extrusion theory, so it is also called as oil extruder or oil extrusion process.
Features of panda screw oil press machine:
Cast iron machine base;
Special gear box structure make the rotating speed averagely;
Main parts of chamber through the processing of high-temperature tempering and low temperature quenching;
Cake thickness can be adjusted once the machine stop running;
Superior grade oil cake;
Compact structure, stable function, simple maintenance.
Applications of panda oil press machine:
Small oil pressing line is fully adopted mechanical driven, it connects a series small oil processing equipment together to
realize continuous oil extraction with easier operation and higher rate of oil yield. The small oil pressing line or you can say
small oil processing plant is able to process a great many of vegetable oil seeds, such as soybeans, peanuts, cotton seeds,
sunflower seeds, sesame seeds, palm kernel, coconut etc. Small investment, fewer land space, labor saving and wide application,
the small oil pressing line is your first choice to start the oil making business .
1.This automatic screw oil press machine is the quite advanced one among the processing machinery of oil plants .
2.It can be applied to the coconuts, olive, sunflower, soybean,cotton seeds , tee seeds rice bran, flaxseeds, sesame, peanuts,
rape, cocoa,etc.
This type of automatic screw oil press equipment is able to do both cold press and hot press.
Principle and Structure of panda oil press machine:
Screw expeller pressing is to separate the oil from oil bearing materials by the pressing power which comes from the change of
chamber volume, drive from screw worm, resistance of curve teeth at press rings and extrusion friction between oil materials.
Under the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings.
Either big scale and small scale of screw oil expeller, they have similar theories in screw expeller pressing. Because the screw
type seed oil expeller is mainly used by extrusion theory, so it is also called as oil extruder or oil extrusion process.
Features of panda screw oil press machine:
Cast iron machine base;
Special gear box structure make the rotating speed averagely;
Main parts of chamber through the processing of high-temperature tempering and low temperature quenching;
Cake thickness can be adjusted once the machine stop running;
Superior grade oil cake;
Compact structure, stable function, simple maintenance.
Applications of panda oil press machine:
Small oil pressing line is fully adopted mechanical driven, it connects a series small oil processing equipment together to
realize continuous oil extraction with easier operation and higher rate of oil yield. The small oil pressing line or you can say
small oil processing plant is able to process a great many of vegetable oil seeds, such as soybeans, peanuts, cotton seeds,
sunflower seeds, sesame seeds, palm kernel, coconut etc. Small investment, fewer land space, labor saving and wide application,
the small oil pressing line is your first choice to start the oil making business .
