Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Manyyear
-
Model Number:
-
MLC929E
-
Material:
-
Alloy steel, alloy steel
-
Application:
-
body scale,baby scale,personal scale
-
Load range:
-
50kg,75kg
-
Dimension:
-
28*28*h (mm)
-
Comprehensive error:
-
0.2%FS
-
Rated output:
-
1.0±0.03mV/V
-
Zero balance:
-
1±0.1%FS
-
Excitation voltage:
-
5~10VDC
-
Certification:
-
Reach
-
Defend grade:
-
IP66
-
Color:
-
NA
Quick Details
-
Power Supply:
-
NA
-
Display Type:
-
NA
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Manyyear
-
Model Number:
-
MLC929E
-
Material:
-
Alloy steel, alloy steel
-
Application:
-
body scale,baby scale,personal scale
-
Load range:
-
50kg,75kg
-
Dimension:
-
28*28*h (mm)
-
Comprehensive error:
-
0.2%FS
-
Rated output:
-
1.0±0.03mV/V
-
Zero balance:
-
1±0.1%FS
-
Excitation voltage:
-
5~10VDC
-
Certification:
-
Reach
-
Defend grade:
-
IP66
-
Color:
-
NA
Product Description

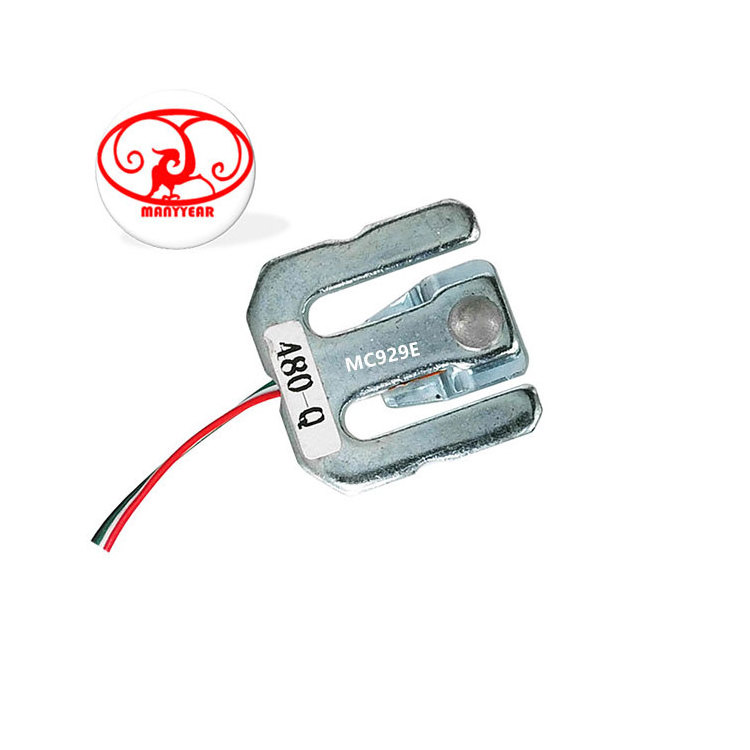

MLC929E Body scale personal scale half bridge micro load cell weight sensor 75kg
Model: MLC929E
Category: Micro load cell
Load Range: 50kg,75kg
Dimension:28*28*h (mm)
Material:alloy steel
Application:body scale,baby scale,personal scale, micro force test equipment
Technology Specification
Below spec is only for customer design reference. we can provide ODM product.
|
Comprehensive error:
|
0.2%FS
|
Output resistance:
|
1000±10Ω
|
|
Rated output:
|
1.1±0.15mV/V
|
Insulation resistance:
|
≥2000MΩ(100VDC)
|
|
Non-linearity:
|
0.3%FS
|
Excitation voltage:
|
5~10VDC
|
|
Hysteresis:
|
0.2%FS
|
Compensated temp:
|
-10~+40ºC
|
|
Repeatability:
|
0.1%FS
|
Use temperature:
|
-20~+55ºC
|
|
Creep:
|
0.1%FS/10min
|
Temp effect on zero:
|
0.3%FS/10ºC
|
|
Zero balance:
|
1±0.3%FS
|
Temp effect on span:
|
0.3%FS/10ºC
|
|
Input resistance:
|
1000±10Ω
|
Defend grade:
|
IP66
|
Product Assembly Structure
Blow force structure is for reference.
Product Process
for the load cell product process, include total 26 word step, take about 20days.
Product Application
this load cell can apply to pricing scale, packing scale, platform scale.
Delivery and Shipment
this load cell can apply to pricing scale, packing scale, platform scale.
