- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Pc Dripper
-
Usage:
-
Water-saving Irrigation System
-
Application:
-
Agriculture Irrigaiton
-
Function:
-
Drip Irrigation
-
Feature:
-
Easy Installation
-
Dripper spacing:
-
10/15/20/30cm etc.
-
Keyword:
-
Drip irrigation arrow
-
MOQ:
-
accept sample
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yibiyuan
-
Model Number:
-
16mm
-
Product name:
-
Pc Dripper
-
Usage:
-
Water-saving Irrigation System
-
Application:
-
Agriculture Irrigaiton
-
Function:
-
Drip Irrigation
-
Feature:
-
Easy Installation
-
Dripper spacing:
-
10/15/20/30cm etc.
-
Keyword:
-
Drip irrigation arrow
-
MOQ:
-
accept sample
Products Description

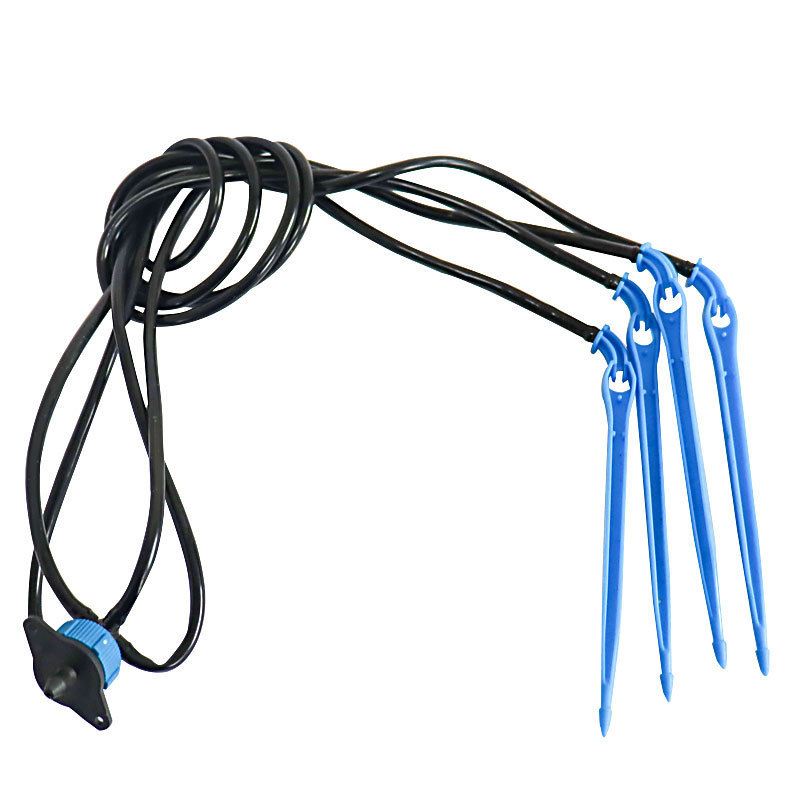

Arrow Drippers For Garden Irrigation
Arrow drippers set is a kind of farm or garden irrigation device commonly used with drip irrigation system
|
Product name:
|
Bend arrow dripper
|
|
|
||
|
Material:
|
PE
|
Type:
|
Single-dripper, 2-way, 4-way drippers
|
||
|
Capillary lenth:
|
50cm
|
Arrow length:
|
10cm
|
||
|
Working pressure:
|
0.02~0.2 MPa
|
Flow rate:
|
1 ~ 3 L/H
|
||
Arrow Drippers For Garden Irrigation
Arrow drippers set is a kind of farm or garden irrigation device commonly used with drip irrigation system. They are so named for their arrow-like shape. There are usually two kinds: crooked and straight arrows. The length of the arrow part at the front end is about 10cm, which is used for inserting into the soil or cultivation medium to guide the flow. The length of the handle is about 5cm, and there is a fine labyrinth flow channel. Better designed handles like Yibiyuan’s contain a filter at the starting point, and the handle part is inserted into a fine hose with an inner diameter of about 3mm.
Each set of arrow drippers is actually a steady-flow cluster of drip arrow group composed of a water divider, a capillary tube and arrow drippers(1-4 water outlets). The outlet of the water divider is connected to one end of the PE capillary tube while the other end of the capillary is connected with the arrow drippers. Set of dripper arrow connections. Arrow-shape dripper system for pots are widely used in agriculture, gardening, greenhouse nursery, etc.
Features of dripper system for pots:
• The handle features a labyrinth-style long water channel, with a filter window.
• Can be used as drippers with good low-pressure performance.
• Either used alone or connected with a multi-outlet water distributor.
• Usually coupled with a pressure-compensated dripper to roduce uniform flow.
•There are straight arrows, curved arrows, long arrows, and short arrows to choose from.
• The handle features a labyrinth-style long water channel, with a filter window.
• Can be used as drippers with good low-pressure performance.
• Either used alone or connected with a multi-outlet water distributor.
• Usually coupled with a pressure-compensated dripper to roduce uniform flow.
•There are straight arrows, curved arrows, long arrows, and short arrows to choose from.
