Quick Details
-
Brand:
-
four star
-
Packaging:
-
carton
-
Description:
-
7/8" eia connector adapter
-
Material:
-
Brass and PTFE
-
Plating:
-
Nickel and Silver
-
Connector type:
-
7/8" EIA and 3-1/8" EIA
-
VSWR:
-
≤1.07@DC-1000MHz
-
Impedance:
-
50ohm
-
Frequency Range:
-
DC-3GHz
-
Weatherproof Rate:
-
IP67
-
Certification:
-
CE/ISO9001/RoHS
-
HS code:
-
8536909000
-
Product name:
-
7/8" EIA Flange connector to 3-1/8 "EIA Flagne connector adaptor
Quick Details
-
Type:
-
RF Adapters
-
Model Number:
-
7/8EIA/25/8EIA-JJ
-
Place of Origin:
-
Jiangsu, China
-
Brand:
-
four star
-
Packaging:
-
carton
-
Description:
-
7/8" eia connector adapter
-
Material:
-
Brass and PTFE
-
Plating:
-
Nickel and Silver
-
Connector type:
-
7/8" EIA and 3-1/8" EIA
-
VSWR:
-
≤1.07@DC-1000MHz
-
Impedance:
-
50ohm
-
Frequency Range:
-
DC-3GHz
-
Weatherproof Rate:
-
IP67
-
Certification:
-
CE/ISO9001/RoHS
-
HS code:
-
8536909000
-
Product name:
-
7/8" EIA Flange connector to 3-1/8 "EIA Flagne connector adaptor
Product Description

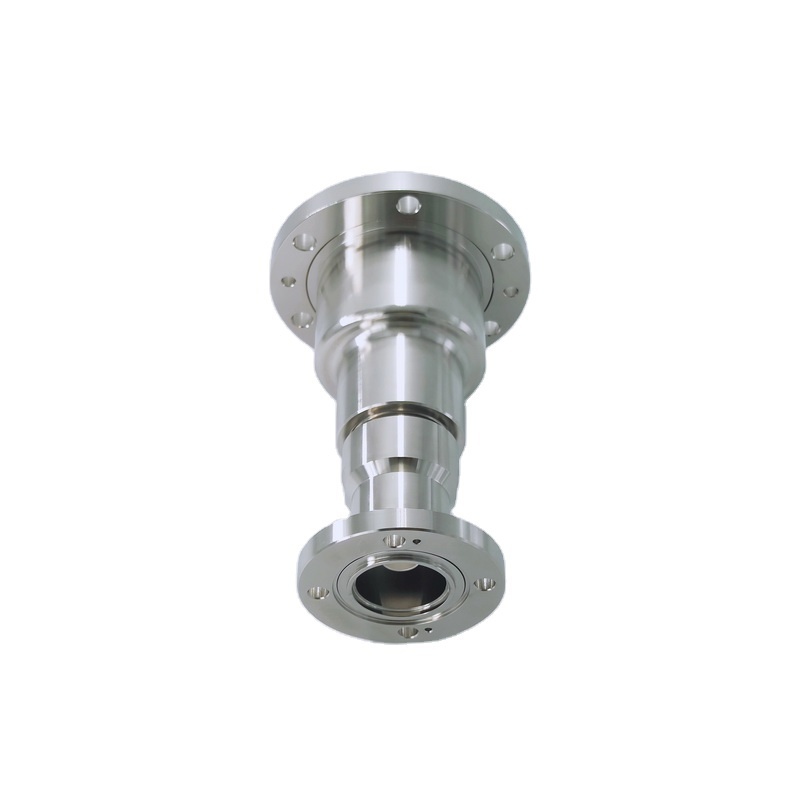

7/8" EIA Flange connector to 3-1/8 "EIA Flagne connector adapter
Specification
|
Model No.
|
7/8EIA/25/8EIA-JJ
|
|
|
|
Interface
|
25/8″ EIA Flange& 7/8" EIA FLANGE
|
|
|
|
Electrical
|
|
|
|
|
Characteristic Impedance
|
50ohm
|
|
|
|
Frequency Range
|
DC-3GHz
|
|
|
|
VSWR
|
≤1.07@DC-1000MHz
|
|
|
|
Dielectric Withstanding Voltage
|
≥6000V RMS,50Hz,at sea level
|
|
|
|
Working Vlotage
|
≤2100V RMS,50Hz,at sea level
|
|
|
|
Dielectric Resistance
|
≥5000MΩ
|
|
|
|
Average Power
|
3.4KW@900MHz
|
|
|
|
Peak Power Maximum
|
90KW
|
|
|
|
Contact Resistance
|
Center Contact ≤1.5mΩ
|
Outer Contact ≤1.5mΩ
|
|
|
Mechanical
|
|
|
|
|
Durability( Mating times)
|
Mating cycles≥100
|
|
|
|
Material and Plating
|
|
|
|
|
Parts Name
|
Material
|
Plating
|
|
|
Body
|
Brass
|
Ni
|
|
|
Insulator
|
PTFE
|
—
|
|
|
Center conductor
|
Phosphor bronze
|
Ag
|
|
|
Coupling flange
|
Brass
|
Ni
|
|
|
Gasket
|
Silicone rubber
|
—
|
|
|
Hardware kits
|
Stainless steel
|
—
|
|
|
Environmental
|
|
|
|
|
Temperature Range
|
-45℃～+85℃
|
|
|
|
Waterproof Rate
|
IP 67
|
|
|
|
RoHS Compliant
|
Yes
|
|
|
