Quick Details
-
Combinations:
-
15 Groups
-
Programs:
-
16 ON/OFF per Day
-
Power Supply:
-
200~250VAC 50/60Hz
-
Output:
-
Voltage output 1NO
-
Interval:
-
1 Min
-
Dustproof Cover:
-
NO
-
Battery:
-
1.2V/40mAh inside
-
Channel:
-
1
-
Certificate:
-
CE RoHS EMC LVD
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Function:
-
7 Days 24hrs Programmable Time Switch
-
Combinations:
-
15 Groups
-
Programs:
-
16 ON/OFF per Day
-
Power Supply:
-
200~250VAC 50/60Hz
-
Output:
-
Voltage output 1NO
-
Interval:
-
1 Min
-
Dustproof Cover:
-
NO
-
Battery:
-
1.2V/40mAh inside
-
Channel:
-
1
-
Certificate:
-
CE RoHS EMC LVD
Digital timer monthly relay time switch power off delay timer monthly 220v programmable digital timer switch

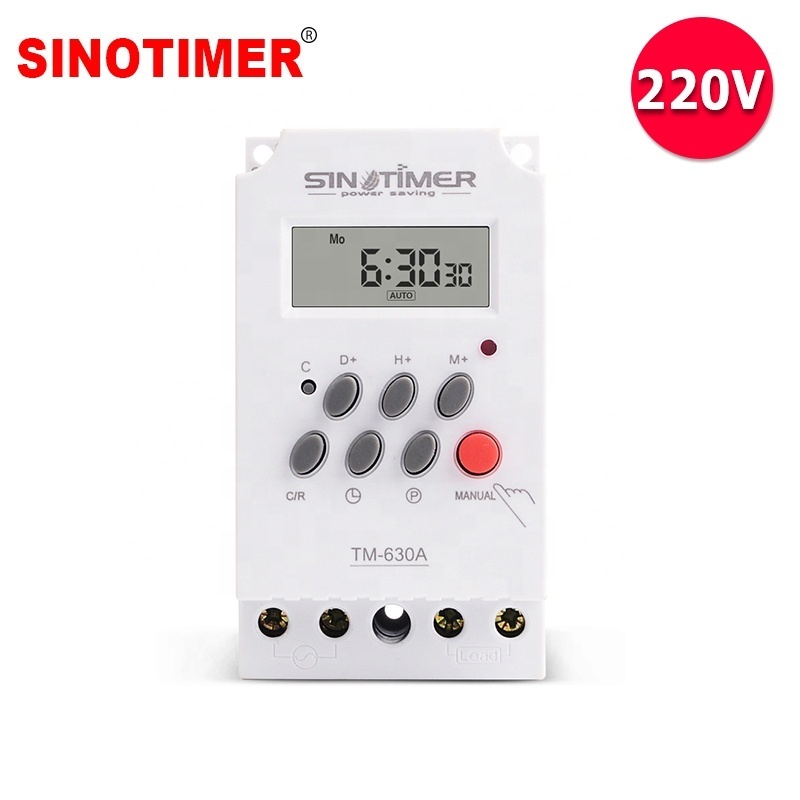

TM630A can automatically switch on and switch off various kinds of electric equipment at a preset time
Application:
- streetlight
- neon light (sign)
- lamp
- water heater
- air conditioner
- billboard
- electric cooker
- booster, sprayer
- bottler
- preheater
- pool
- gate
- sprinkler
- agriculture facilities
- broadcasting equipment
Characteristics:
* Ideal for household use in pannel mounted
* 5000 Watt / 30 Amps, 1NO
* 24 hours / 7 days a week programmable
* Built-in Battery for saving the memory when power failure
* Auto time error correction +/- 30 sec, weekly
* Repeat programs with 16 on/off settings, and setting on/off manually
Specification:
|
Model |
TM-630A |
|
Temp.range: -20°C+50°C |
Power Supply: 220-240V AC |
|
Power consumption 4.5 VA (MAX) |
Display: LCD |
|
Switching contact: 1 changeover switch |
Programs:16 on/off each day or week |
|
Hysteresis 2 sec/day (25°C) |
Mini interval: 1min |
|
Capacity: 30A 250V AC |
Black-out: 60 days |
|
Timer range: 1min~168hr |
Recharge battery: 3V |
|
Average error: 1s/24h, 25°C |
Weight: 0.15kg |
Package infos:
unit weight:0.12kgs
packing: 100pcs/ctns, 13kgs (GW)
dimensions:42*29*32cm
