Quick Details
-
Place of Origin:
-
Guangdong, China
-
Video surveillance:
-
audio video cable
Quick Details
-
Brand Name:
-
ADP or OEM
-
Model Number:
-
RG58
-
Type:
-
RG58, Coaxial
-
Place of Origin:
-
Guangdong, China
-
Video surveillance:
-
audio video cable

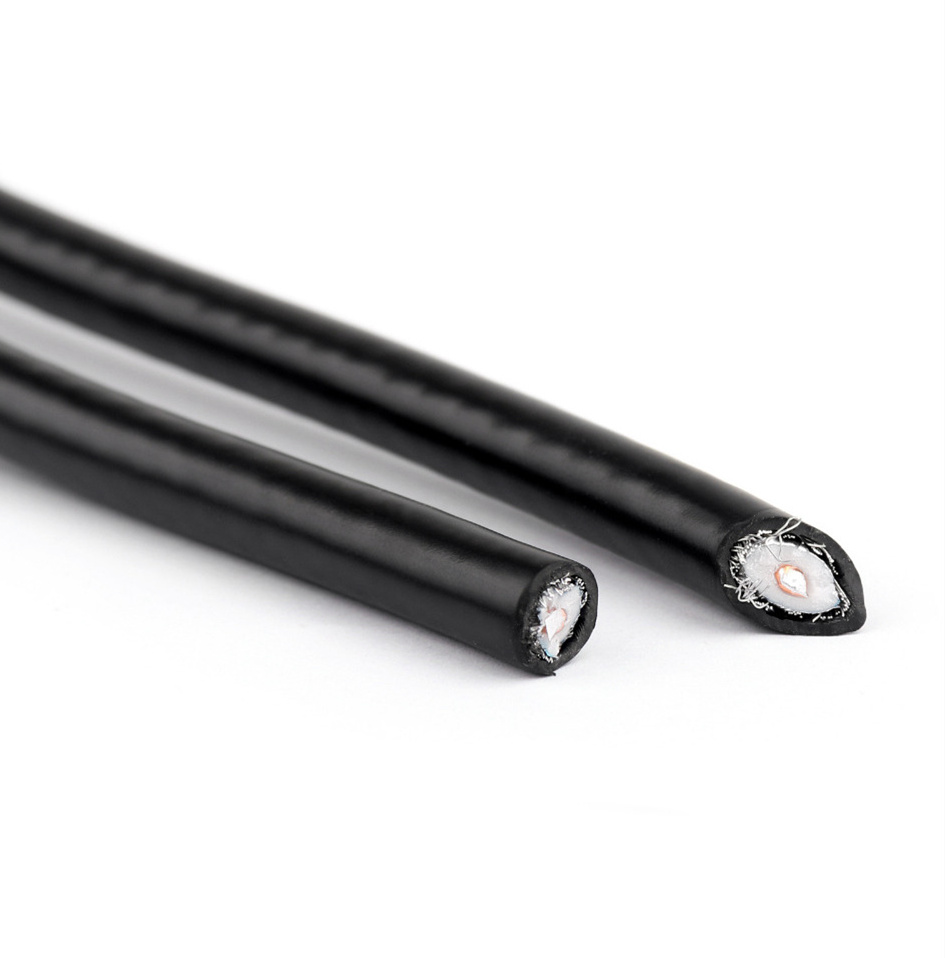

RG58 Video cable coaxial cable. 50 ohm
*
19X0.18mm TinnedCopper+2.95mmSolid PE + + 95% Tinned Copper Braiding+4.95mmPVC
* Customers' specifications are welcomed
* Color:black& white
| Item | RG58/U | RG58A/U | RG58C/U | RG59 | RG-59A/U | RG-59B/U | RG11/U | RG11A/U |
| Conductor | BC:Bare copper, TC:Tinned copper, CCS:Copper clad steel,CCA:Copper clad alumium | |||||||
| inner conductor material | BC | TC | TC | CCS | CCS | CCS | TC | TC |
| Diameter of inner conductor(mm) | 1*0.813 | 19*0.18 | 19*0.18 | 1*0.643 | 1*0.643 | 1*0.584 | 7*0.404 | 7*0.404 |
| Material of dielectric(mm) | LDPE | LDPE | LDPE | LDPE | LDPE | LDPE | LDPE | LDPE |
| Diameter of dielectric(mm) | 2.95 | 2.95 | 2.95 | 3.71 | 3.71 | 3.71 | 7.24 | 7.24 |
| Material of sheild | Al foil and braiding | |||||||
| Coverage | 30%-95% | |||||||
| Diameter of 1st outer conductor | 16/8/.128 | 16/8/.128 | 16/8/.128 | 16/7/0.160 | 16/7/0.160 | 16/7/0.160 | 24/9/0.1 | 24/9/0.1 |
| Diameter of 2nd outer conductor | / | |||||||
| Jacket Material | PVC` | PVC | CNPVC | PVC | CNPVC | CNPVC | CNPVC | PVC |
| OD(Diameter of Jacket) | 4.95±0.15 | 4.95±0.15 | 4.95±0.15 | 6.15±0.15 | 6.15±0.15 | 6.15±0.15 | 10.30±0.2 | |
| Impedence(ohm) | 53.5 | 50 | 50 | 73 | 73 | 73 | 75 | 75 |
Note:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
and double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 80, 96, 120,128 ,144 and more available;
6) Braiding coverage: Between 80- 97% available;
7) PVC jacket of Flame retardant ,UV.
Application:
* CCTV Camera,TV,CATV,video and audio cables
