laundry soap making machine/chemicals for making liquid soap/bar soap making machine

laundry soap making machine/chemicals for making liquid soap/bar soap making machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $11000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 1150

Place of Origin:: Guangzhou

After-sales Service Provided:: Service Machinery Overseas

Function:: Mixer/Heating/Cooling

Material:: SUS 304/316L

Voltage:: 220V/380V 50HZ

Usage:: Produce Soap

Power:: 2.2KW~4.0KW

Packaging Type:: PE film covered inside and then plywood case packing

Mixer Type:: Agitator and Scraper

Quick Details

Brand Name:: Ailusi, Ailusi

Type:: Soap Making Machines

Applicable Industries:: Daily chemical factory

Weight (KG):: 1150

Place of Origin:: Guangzhou

After-sales Service Provided:: Service Machinery Overseas

Function:: Mixer/Heating/Cooling

Material:: SUS 304/316L

Voltage:: 220V/380V 50HZ

Usage:: Produce Soap

Power:: 2.2KW~4.0KW

Packaging Type:: PE film covered inside and then plywood case packing

Mixer Type:: Agitator and Scraper

Product Overview

AILUSI MACHINERY
Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP Standard

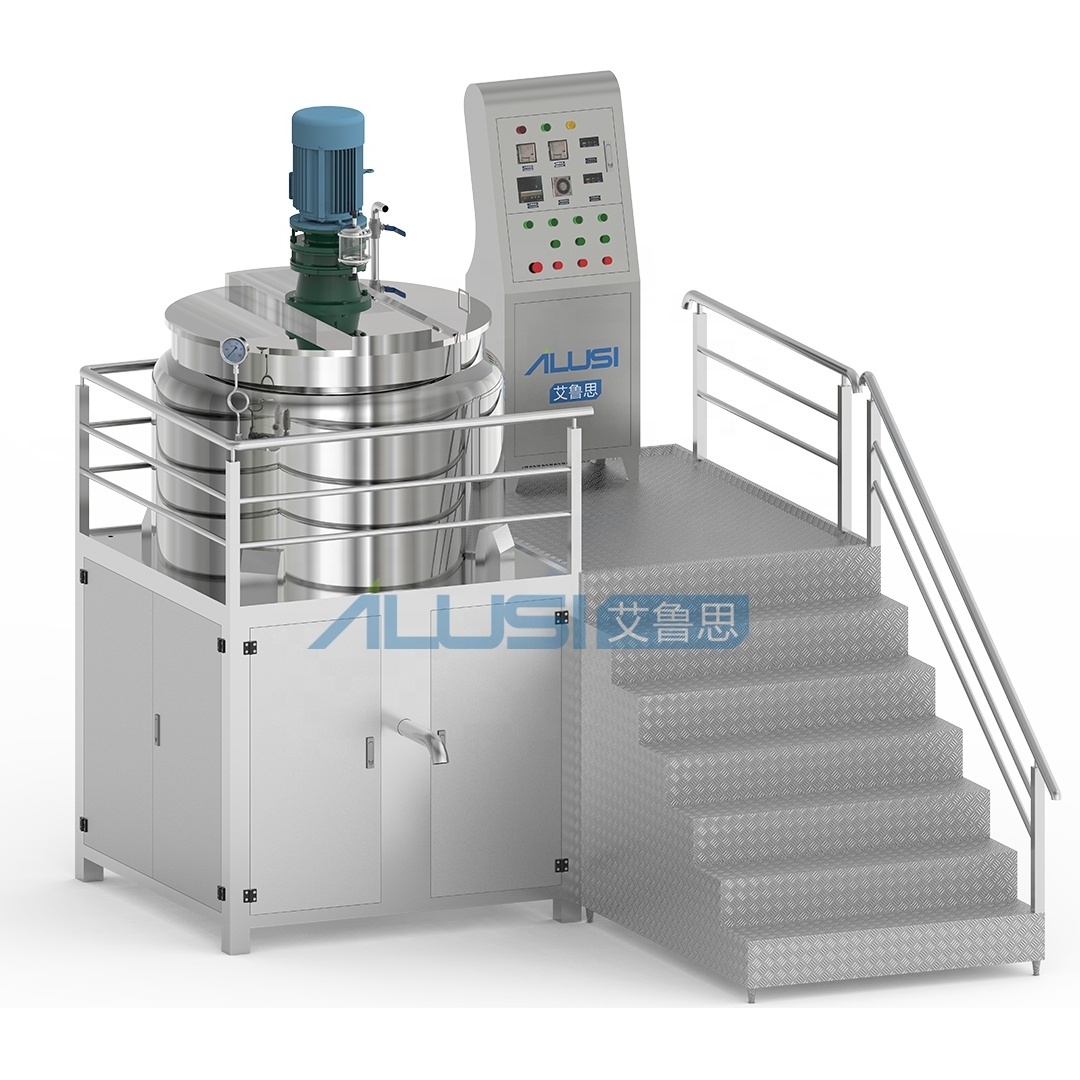

Liquid detergent homogenizing mixer machine

Homogenizing mixer machine has high-speed disperser, mixing and disperse viscously, solid and liquid, etc. various kind of raw material will be dissolved which is such as AES, AESA LSA, during liquid production which can save energy consumption and shorten production the and shorten production period. To produce liquid washing products, like shampoo, liquid soap, bath shower, dishwashing, hand washing, lubricating oil, etc.

FEATURES AT A GLANCE

1. The Omnidirectional wall scraping and mixing adopts a frequency converter to adjust the speed. At low temperatures and high viscosity, it can reduce the formation of bubbles.

2. Jacket heating and cooling function (steam/electric heating)

3. The pot body is welded by three layers of stainless steel plates, mirror polished, in line with GMP requirements.

4. High-speed shearing homogenizer 3600rpm, strong mixing of solid and liquid raw materials.

5. Schneider switch control button, Delta inverter, Omron temperature control

Left elevation

OIverlook elevation

Back elevation

PRODUCT SPECIFICATIONS

Model	AHM-1000	Working capacity	1000L
Heating method	Steam/electric	Mixer	Frame wall scraper mixing
Mixing motor power	5.5KW	Mixing frequency	5.5KW
Mixing Speed	0-65rpm	Homogenizer frequency	7.5KW
Bottom Homogenizer power	7.5KW	Homogenizer type	Internal and external circulation(option)
Control method	Button control	Frequency converter	Delta/Panasonic/Mitsubishi
Electrical components	Schneider/Delixi	Tank materials	Inner layer 6mm/SUS316 Middle layer 6mm/SUS304 Outer layer 3mm/SUS304

Capacity	Mixing power(KW)	Heating(KW)	Homogenizer(KW)	Size(mm)
50L	1.1	6/Steam	2.2	12005001600
100L	1.5	9/Steam	3	13006001700
200L	2.2	12/Steam	4	15008001800
300L	2.2	12/Steam	4	215014501900
500L	3	18/Steam	5.5	230016002500
1000L	5.5	27/Steam	7.5	270019002700
1500L	7.5	36/Steam	11	285024002850
2000L	7.5	36/Steam	15	290028003200
3000L	11	48/Steam	22	300033003700
5000L	15	72/Steam	30	340038004100

PRODUCT CONFIGURATION

Lid

-- SUS304, half open hinged lid, GMP hygiene standards

Tank

-- SUS316L&304

-- Inside and exposed parts polishing＜0.4μm; The inner - middle layer for heating and cooling; The Middle - outer layer for Rock wool insulation;

-- Steam heating or electrical heating

Mixer

-- Frame type wall scraper mixing, with one fixed propeller

-- Speed: 0-65rpm, frequency inverter

-- PTFE material, remove product from the wall

Button homogenizer

-- 0-3600rpm , frequency inverter

-- SUS316L, rotor and stator high shearing homogenizer

Console

Governor,Delta

Temperature table, WINKPARK

Breaker, Delixi

Relay, Delixi

Button, Schneider

Ammeter, Delixi

AC contactor, Delixi

Time delayer

Platform & stair

-- SUS04

Stator and rotor

rotor

Materials SUS304&316L (TISCO)

Siemens BEIDE Motor

Reducer

Delta Frequency inverter

Burgmann Mechanical seal

NSK Bearing

Omron temperature controller

Indicator light, Schneider

Button , Schneider

Current Transformer, Delixi

Time Relay

Breaker

AC contactor

Certifications

Material Sources

Packing & Delivery

Packaging
Size	1800(L) * 1600 (W) *2400 (D)
Weight	900KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
