Quick Details
-
Max. Resolution:
-
203dpi
-
Brand Name:
-
DiligenCe
-
Place of Origin:
-
Guangdong, China
-
Accessory specification:
-
USB cable/Adapter/Paper
-
Battery(rechargeable Li-ion battery):
-
7.4VDC/1500mA
-
Printing Method:
-
Thermal Line Printing
-
Paper type:
-
Thermal Receipt Paper
-
Print command:
-
ESC/P0S Command
-
Driver:
-
XP/Win7/Win8/Win10/ios/Android/Linux/MacOS
-
Paper thickness:
-
0.06~0.08mm
-
Print Head LIfe:
-
50 Km
-
Power adapter:
-
9V/1.5A
-
Keyword:
-
80mm USB POS Thermal Printer
-
OEM/ODM:
-
Warmly Welcomed
Quick Details
-
Max Paper Size:
-
80mm
-
Black Print Speed:
-
90mm/s
-
Color Print Speed:
-
NA
-
Max. Resolution:
-
203dpi
-
Brand Name:
-
DiligenCe
-
Place of Origin:
-
Guangdong, China
-
Accessory specification:
-
USB cable/Adapter/Paper
-
Battery(rechargeable Li-ion battery):
-
7.4VDC/1500mA
-
Printing Method:
-
Thermal Line Printing
-
Paper type:
-
Thermal Receipt Paper
-
Print command:
-
ESC/P0S Command
-
Driver:
-
XP/Win7/Win8/Win10/ios/Android/Linux/MacOS
-
Paper thickness:
-
0.06~0.08mm
-
Print Head LIfe:
-
50 Km
-
Power adapter:
-
9V/1.5A
-
Keyword:
-
80mm USB POS Thermal Printer
-
OEM/ODM:
-
Warmly Welcomed

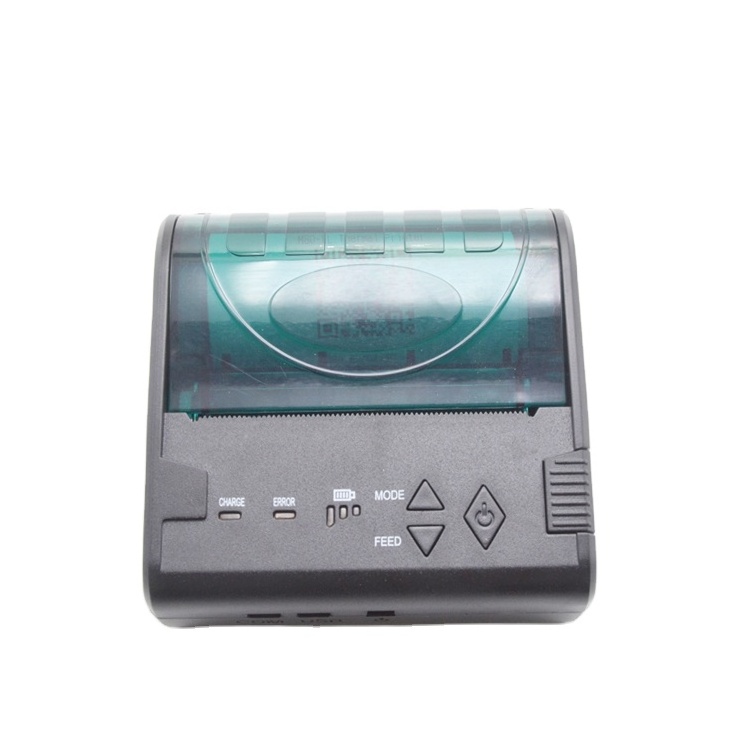

80mm bluetooth handheld wireless barcode receipt thermal printer for Android IOS win system with pos 80 printer thermal driver
|
Specification
|
|
|
Printing Method |
Thermal line printing |
|
Print speed |
Up to 90mm/sec |
|
Reliability TPH Life |
100km |
|
Resolution |
203DPI (8dot/mm) |
|
Printing Width |
76 mm (384dot) |
|
Paper Width |
80 ±01mm |
|
Roll Diameter |
φ≤40mm |
|
Paper Type |
Thermal Paper |
|
Power supply (optional) |
rechargeable lithium batteries |
|
Battery |
Lithium : 7.4VDC/ 20 00mA, |
|
Charging mode |
DC 9V/1.5A |
|
support |
the battery display function |
|
Language |
support multiple languages |
|
Print parameters |
support to download the Logo trademark |
|
Character size |
384 dots/line ; FontA:12*24dots,1.5(W)*3.0(H)mm FontB: 9*17dots, 1.1(W)*2.1(H)mm Simplified/Traditional:24*24dots,3.0(W)*3.0(H)mm |
|
Printing Chinese character |
Chinese: simplified Chinese 24x24 point. support 18030 font library, support Taiwan and HK traditional(complex font) , ANK: ANK characters |
|
Extended character table |
OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/ Greek/Hebrew/EastEurope/Iran/WPC1252/OEM866/OEM852/OEM858/IranII/ Latvian/Arabic/PT1511251/OEM747/WPC1257/Vietnam/ OEM864/Hebrew/WPC1255/Thai |
|
Emulation |
ESC/POS/STAR command |
|
Interface |
standard RS232/USB, Bluetooth 4.0/SPP agreement or infrared/ IRCOMM agreement (optional), support Android 4.2.2 |
|
Working Temperature |
-10~50℃ |
|
Humidity |
10~90% |
|
Supported OS |
Android/IOS/Windows/WIN7/WIN8/WIN 10 |
1: Why serial port printer printing messy code?
A: Ensure the baud rate setting in the PC is same as the printer baud rate.
( we can see printer baud rate from self test page)
2: Self printing test is ok,but printer does not work after driver installation.
A: Recheck the installation according to above installation wizard and see if
we selected the right port or ask service center for advice if needed.
3: Malfunction of paper feeding?
A: Use soft brush to clean the paper sensor and try again or send it to the
service center for repair.
4
:
Malfunction of the indicator light
A: Check the cable connecting way / adapter / power cord / switch on or off?
Or contact the service center for repair.
5: Messy code printing except Arabic numeral printing.
A: language switching incorrectly, please use our tool "IPrinter" (you can find it
on the enclosed CD) to change the language what you want print.
6
:
Red indicator keep flashing during the printing.
A: Usually it is due to the high temperature of the print head. If printing
stopped,please contact the service center for repair.
