Quick Details
-
Rated Input Voltage:
-
220 V
-
Rated Output Current (TIG):
-
250A
-
Rated Output Voltage (TIG):
-
220 V
-
Welding Current/Voltage Range:
-
10-250A
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
ALAND
-
Pulse Frequency:
-
20~250Hz
-
Dimensions:
-
430x200x290MM
-
Use:
-
Welding steel, iron, titanium, copper, nickel
-
Weight (KG):
-
25 KG
-
Applicable industry:
-
enterprise of pressure vessel, building, shipping and petrochemical
-
Voltage:
-
1 xAC220V 50/60Hz
-
Arcforce:
-
0-100%
-
DC(base)/AC peak Current Ratio:
-
5~95%
-
Pulse width:
-
5%~95%
-
Current UP/Down-slope Time:
-
0~25S
-
Pre gas Flow Time:
-
0~25s
-
Post gas Flow Time:
-
0~50s
-
Efficiency:
-
≥80%
-
Protection Class of enclosure:
-
IP21S
Quick Details
-
Max. Load Power Capacity:
-
9.2KVA
-
Output Polarity:
-
AC/DC TIG
-
Rated Duty Cycle @40°C (TIG):
-
60%
-
Rated Input Voltage:
-
220 V
-
Rated Output Current (TIG):
-
250A
-
Rated Output Voltage (TIG):
-
220 V
-
Welding Current/Voltage Range:
-
10-250A
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
ALAND
-
Pulse Frequency:
-
20~250Hz
-
Dimensions:
-
430x200x290MM
-
Use:
-
Welding steel, iron, titanium, copper, nickel
-
Weight (KG):
-
25 KG
-
Applicable industry:
-
enterprise of pressure vessel, building, shipping and petrochemical
-
Voltage:
-
1 xAC220V 50/60Hz
-
Arcforce:
-
0-100%
-
DC(base)/AC peak Current Ratio:
-
5~95%
-
Pulse width:
-
5%~95%
-
Current UP/Down-slope Time:
-
0~25S
-
Pre gas Flow Time:
-
0~25s
-
Post gas Flow Time:
-
0~50s
-
Efficiency:
-
≥80%
-
Protection Class of enclosure:
-
IP21S
Portable and easy to operate AC MMA DC MMA TIG three-in-one multi-functional welder
Product attribute introduction
|
MODEL
|
|
DIGI-TIG250ACDC LCD
|
|
|
INPUT
|
Voltage
|
1 xAC220V 50/60Hz
|
|
|
DC MMA |
No-load Voltage
|
80V
|
|
|
|
Base current Adjusting Range
|
20~200A
|
|
|
|
Rated Output Current
|
200A
|
|
|
|
Arcforce
|
0-100%
|
|
|
|
Hot Start time
|
0-2S
|
|
|
|
Hot Start Amp
|
0-100%
|
|
|
|
Rated Duty Cycle
|
60%
|
|
|
AC TIG |
No-load Voltage
|
80V
|
|
|
|
Current Adjusting Range
|
10~250A
|
|
|
|
Rated Duty Cycle
|
60%
|
|
|
|
SP % (AC balance)
|
5~90
|
|
|
|
AC Square Wave Frequency
|
20~250Hz
|
|
|
|
Spot time
|
0.5S~25S
|
|
|
|
stitch time
|
0.2S~25S
|
|
|
DC
TIG |
Current Adjusting Range
|
5~250A
|
|
|
|
Rated Duty Cycle
|
60%
|
|
|
|
Spot time
|
0.2S~25S
|
|
|
|
stitch time
|
0.2S~25S
|
|
|
Standard
PULSE TIG |
Peak Current
|
5~250A
|
|
|
|
Base/peak Current ratio
|
3~100%
|
|
|
|
Rated Duty Cycle
|
60%
|
|
|
|
Pulse width
|
5%~95%
|
|
|
Advanced PULSE TIG (MIX) |
AC peak Current
|
10~250A
|
|
|
|
DC(base)/AC peak Current Ratio
|
5~95%
|
|
|
|
Rated Duty Cycle
|
60%
|
|
|
|
Pulse width
|
5%~95%
|
|
|
|
pulse (AC to DC-) Freq.
|
0.1~10Hz
|
|
|
Current UP/Down-slope Time
|
|
0~25S
|
|
|
Initial current
|
|
DC:5-250A, AC:10-250A
|
|
|
crater-fill current
|
|
DC:5-250A, AC:10-250A
|
|
|
Pre gas Flow Time
|
|
0~25s
|
|
|
Post gas Flow Time
|
|
0~50s
|
|
|
Arc starting Mode
|
|
HF/LIFT TIG
|
|
|
Efficiency
|
|
≥80%
|
|
|
Mass Weight
|
|
25kg
|
|
|
Protection Class of enclosure
|
|
IP21S
|
|
Product advantage

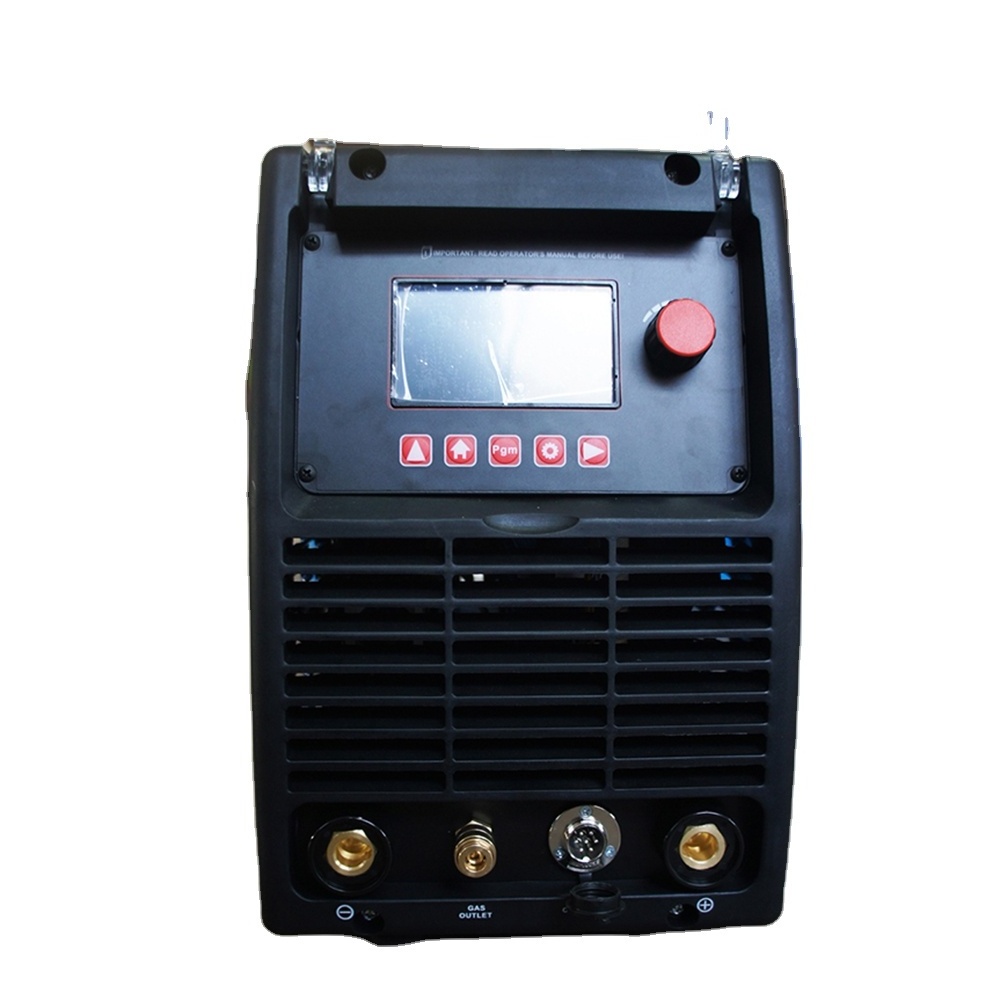

DIGI-TIG250ACDC PULSE LCD Welder is triple
functional machine used as DC MMA ，AC
TIG, DC/PULSE TIG Welder. All ferrous metals copper, Aluminium , titanium and stainless
steel material can be omnibearing welding in all position. The welding current is stable and stepless adjustable. The welding seam
is nice. few spatter and low noise occurs during welding. The welder is small volume, light in weight and easy to move. It is
particularly suitable for enterprise of pressure vessel, building, shipping and petrochemical works.
functional machine used as DC MMA ，AC
TIG, DC/PULSE TIG Welder. All ferrous metals copper, Aluminium , titanium and stainless
steel material can be omnibearing welding in all position. The welding current is stable and stepless adjustable. The welding seam
is nice. few spatter and low noise occurs during welding. The welder is small volume, light in weight and easy to move. It is
particularly suitable for enterprise of pressure vessel, building, shipping and petrochemical works.
Product Packaging
WHY
CHOOSE US
THE MOST IMPORTANT THINGIS THAT OUR PRODUCTS ARE GUARANTEED
FAQ.
Q1. Why Choose us?- We have nearly 10 years experience in welding industry and export to all over the world. - We have experienced R&D team. We can
adjust the parameter and panels design as per your request.
- Most of key parts are adopted top brand to ensure the quality. Such as the IGBT of Infineon (Simens). - Each machine will be
inspected before shipping. - One year warranty, life-long technical support and design service.
Q2. Could you get a customized sample?
Yes, we can adjust some configuration and parameters as your request.It also includes OEM service.
Q3. How is your quality control?
We use the world-class quality inspection to make every machine strong, powerful and reliable. We inspect with the world class
quality testing to make every single machine strong, powerful and reliable.
Inpection is full range, covered from welding power source to wire feeders, welding torches and up to welding consumables and work
safety. Whether you want to weld with 2T/4T, GAS/NO GAS, our components, which have been perfectly tuned to your requirements,
acting as excellent quality and the best possible welding results.
Q4. What voltage could you provide?110V/220v, 220/380V, 230V etc.
We can make it as per your country voltage.Q5. Can you send me the video to show how the machine works?
At present, some machines have video. We will try to make video of featured machine in future.
Q6. Do you have engineer who can guide me to install system?
Yes, we have a professional team. They can teach you how to work with it.
Q7. How long is the lead time for welding machine?
If no stockes, usually it takes 30-35 days after confirmation of order.
