Quick Details
-
Return Force (kN):
-
240 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JIANHA
-
Year:
-
2022
-
Voltage:
-
220/380/415
-
Dimension(L*W*H):
-
1100*800*3039
-
Weight (T):
-
4.2 T
-
Model Number:
-
Y32-200TXC
-
Motor Power (kw):
-
11 kw
-
Marketing Type:
-
Hot Product 2022
-
Application:
-
sheet metal cold press ,steel plate embossing
-
MOQ:
-
1
-
Certification:
-
CE ISO9001:2000
-
Type:
-
universal four column Hydraulic stamping press machine
-
OEM/ODM:
-
According to your requirement
-
Keyword:
-
Hydraulic Press Machine manufacturer
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
600mm
-
Ejector Force (kN):
-
400
-
Return Force (kN):
-
240 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JIANHA
-
Year:
-
2022
-
Voltage:
-
220/380/415
-
Dimension(L*W*H):
-
1100*800*3039
-
Weight (T):
-
4.2 T
-
Model Number:
-
Y32-200TXC
-
Motor Power (kw):
-
11 kw
-
Marketing Type:
-
Hot Product 2022
-
Application:
-
sheet metal cold press ,steel plate embossing
-
MOQ:
-
1
-
Certification:
-
CE ISO9001:2000
-
Type:
-
universal four column Hydraulic stamping press machine
-
OEM/ODM:
-
According to your requirement
-
Keyword:
-
Hydraulic Press Machine manufacturer
Hot-sale Products

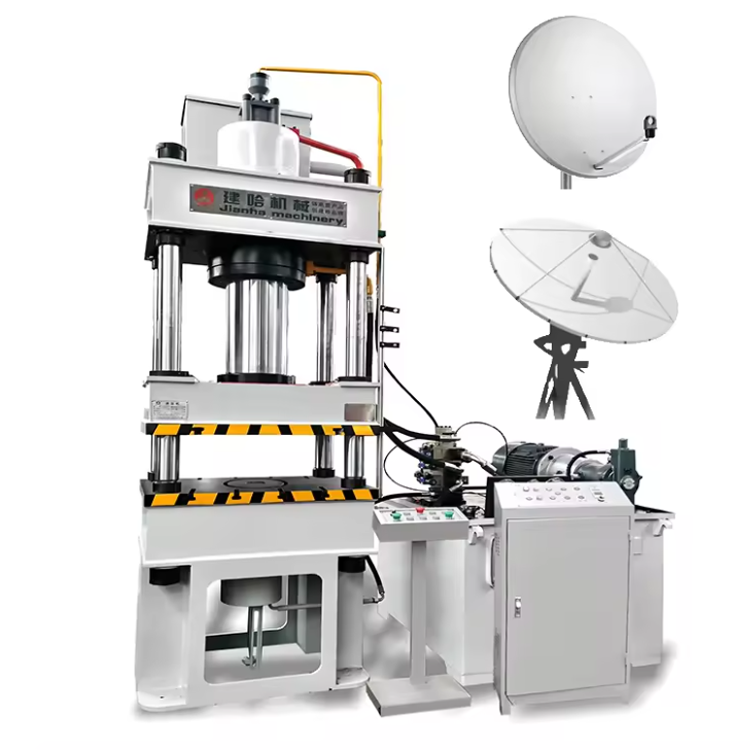

1. Four columns are made of high-strength quality round steel with surface hardened via high-frequency treatment, and electroplated after grinding. Good abrasion resistance is guaranteed.
2. Production efficiency is high with fast falling speed of the moving bolster.
3. Pressure, stroke and pressurizing time can be adjusted according to processing requirement.
4. Designed with PLC programming circuit and touch panel operating system. Easy and convenient to operate.
5. Optional configuration: protective shielf, LED lighting and infrared grating, etc.
2. Production efficiency is high with fast falling speed of the moving bolster.
3. Pressure, stroke and pressurizing time can be adjusted according to processing requirement.
4. Designed with PLC programming circuit and touch panel operating system. Easy and convenient to operate.
5. Optional configuration: protective shielf, LED lighting and infrared grating, etc.
|
Type Y32-200TXC
|
|
Unit
|
Value
|
|
|
Nominal Pressure
|
|
KN
|
2000
|
|
|
System Pressure
|
|
MPa
|
25
|
|
|
Slider Stroke
|
|
mm
|
600
|
|
|
Maximum Opening Height
|
|
mm
|
800
|
|
|
Effective Size of Workbench
|
The Lift and Right Sides
|
mm
|
800
|
|
|
|
The Front and Rear Sides
|
mm
|
800
|
|
|
Slider Speed
|
Idle Stroke
|
mm/s
|
120
|
|
|
|
Feeding
|
mm/s
|
6-12
|
|
|
|
Back Tracking
|
mm/s
|
90
|
|
|
Ejection Force
|
|
KN
|
400
|
|
|
Under Cylinder Stroke
|
|
mm
|
260
|
|
|
Motor Power
|
|
KW
|
11
|
|
|
Plunger pump
|
|
L
|
40
|
|
Hot sale products
Applications:
We can provide total solutions, including machines, molds, product processing technology, automated production lines.
Producing the Powder Metallurgy Parts.
Producing the cosmetic ,pharmaceutical industries parts
Producing the cosmetic ,pharmaceutical industries parts
Producing the Iron-Base & Non-Ferrous- Base Sintered Structural Parts
Producing the Ceramic & Cermet Parts
Producing the Carbon & Carbide Parts
Producing the Magnetic & Self – Lubricating Parts
Producing the Stainless & Alloy Parts
Producing parts for Automobile & Machines
Producing the Ceramic & Cermet Parts
Producing the Carbon & Carbide Parts
Producing the Magnetic & Self – Lubricating Parts
Producing the Stainless & Alloy Parts
Producing parts for Automobile & Machines
Producing parts for Aircraft & Aerospace
Producing parts for Atomic Reactors
Producing parts for Atomic Reactors
Package and shipping:
1.The four column metal stamping press machine surface with anti-rust treatment,
2.The four column metal stamping press machine inner layer of plastic waterproof packaging,
3.The four column metal stamping press machine outer layer of thick wood or steel frame fixed,And then use a synthetic board package. Combined container transport, or separate container transport.
2.The four column metal stamping press machine inner layer of plastic waterproof packaging,
3.The four column metal stamping press machine outer layer of thick wood or steel frame fixed,And then use a synthetic board package. Combined container transport, or separate container transport.
