Quick Details
-
Material:
-
1.5mm Cold Rolled Steel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WALITON
-
Model Number:
-
WLT-T35007
-
Usage:
-
Extendsion Table, Surface, drawer worktop
-
PRODUCT NAME:
-
7-section Steel Transforming Table Slide
-
AVAILABLE SECTION LENGTH:
-
300, 350, 400,450,500mm
-
EXTENSION TRAVEL:
-
Over-Travel [Custom-Made available]
-
DRAWER SLIDE INSTALLATION CLEARANCE:
-
55mm
-
DRAWER SLIDE CROSS-SECTION WIDTH:
-
47mm
-
FINISH:
-
Galvanized Steel
-
SPECIAL FEATURES:
-
Heavy duty ball bearing multi-sections slider
-
DWAWER SLIDE MATERIAL THICKNESS:
-
1.5 x 1.5mm
-
LOADING RATE:
-
55kgs / 120lbs
-
CYCLE TESTING:
-
30000
Quick Details
-
Application:
-
Kitchen, Dining, Office Building, Appliances (APPLIANCE SOLUTIONS), MEDICAL & HEALTHCARE, Woodworking & Cabinetry, Pull-out worktops, pull-out and sliding top, Extendable and customizable tables, Expand the space, pull-out worktop from the drawer
-
Design Style:
-
Contemporary
-
Type:
-
35mm multi-functions extension slides
-
Material:
-
1.5mm Cold Rolled Steel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WALITON
-
Model Number:
-
WLT-T35007
-
Usage:
-
Extendsion Table, Surface, drawer worktop
-
PRODUCT NAME:
-
7-section Steel Transforming Table Slide
-
AVAILABLE SECTION LENGTH:
-
300, 350, 400,450,500mm
-
EXTENSION TRAVEL:
-
Over-Travel [Custom-Made available]
-
DRAWER SLIDE INSTALLATION CLEARANCE:
-
55mm
-
DRAWER SLIDE CROSS-SECTION WIDTH:
-
47mm
-
FINISH:
-
Galvanized Steel
-
SPECIAL FEATURES:
-
Heavy duty ball bearing multi-sections slider
-
DWAWER SLIDE MATERIAL THICKNESS:
-
1.5 x 1.5mm
-
LOADING RATE:
-
55kgs / 120lbs
-
CYCLE TESTING:
-
30000
Product Description
|
THE PRODUCTS SPECIFICATIONS
|
|
|
|
Product Name
|

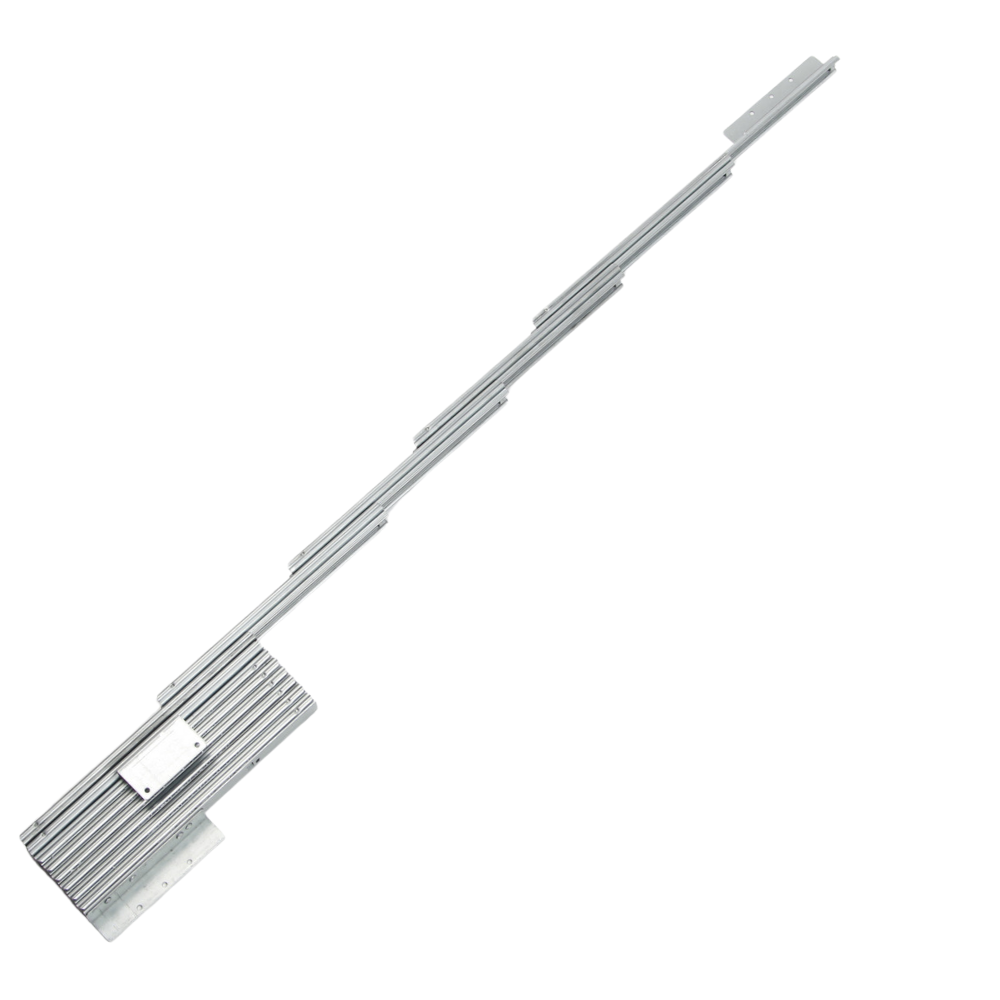

7-Section Cold Rolled Steel Ball BearingTransforming Table Slide Rail
|
|
|
Item No.
|
WLT-T35007
|
|
|
Drawer Slide Rail Material
|
Cold Rolled Steel
|
|
|
Drawer Slide Section Steel Thickness
|
1.5mm
|
|
|
Drawer Slide Rail Load Rate
|
55kgs / 120lbs [ meet or exceed ANSI performance standards as established by BIFMA, BHMA and KCMA.]
|
|
|
Table Slide Available SECTION Length
|
350mm, 400mm, 450mm, 500mm, 550mm, 600mm
|
|
|
Module
|
Mutiple Secitons Extension Opening
|
|
|
Mounting
|
Side mount and L- bracket bottom/top mounting
|
|
|
Disconnect
|
Non Disconnectable
|
|
|
Hole Pattern
|
32mm
|
|
|
Type
|
Steel Ball Bearing Silence Travel
|
|
|
Travel
|
Over Travel
|
|
|
Finish
|
Galvanized Steel
|
|
|
Drawer Slide Rail Height
|
1.38" [35mm]
|
|
|
Drawer Slide Rail Packaging
|
Bulk Pack: 1 pair per carton [available pallet bulk packaging]
|
|
|
Feature
|
• Mutiple sections extension table slide
• Cold rolled steel ball bearing drawer slide rail
• Steel ball bearing moving smoothly and quietly
• Non-Disconectable slide members with bent down metal stopper for safety
|
|
|
Applications
|
Extendable table slides for small dining table,small kitchen table,tables set,dining tables for small spaces,space saving dining table
|
|
|
SECTION LENGTH [ A ]
|
EXTENSION LENGTH [ L ]
|
|
300 mm
|
1410 mm
|
|
350 mm
|
1760 mm
|
|
400 mm
|
2110 mm
|
|
450 mm
|
2460 mm
|
|
500 mm
|
2810 mm
|
