Quick Details
-
Optical zoom:
-
40x
-
Digital zoom:
-
1.25x, 1.5x, 1.75x, 2x
-
Focal length:
-
800mm
-
Effective sensor size:
-
1/1.8"
-
Focus settings:
-
Continuous AF, Quick AF, Manual
-
Optical filter:
-
Visible Light Cut filter (ON / OFF)
-
Day / Night selection:
-
Auto, Scheduled, Manual
-
Wavelengths selection:
-
950nm, 940nm, 850nm, 808nm, Visible light
-
Image stabilization:
-
Auto, OIS, EIS, OFF
-
Video output systems:
-
HDMI, HD-SDI, Composite(BNC)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FUJINON
-
Model Number:
-
SX800 SX801
-
Optical zoom:
-
40x
-
Digital zoom:
-
1.25x, 1.5x, 1.75x, 2x
-
Focal length:
-
800mm
-
Effective sensor size:
-
1/1.8"
-
Focus settings:
-
Continuous AF, Quick AF, Manual
-
Optical filter:
-
Visible Light Cut filter (ON / OFF)
-
Day / Night selection:
-
Auto, Scheduled, Manual
-
Wavelengths selection:
-
950nm, 940nm, 850nm, 808nm, Visible light
-
Image stabilization:
-
Auto, OIS, EIS, OFF
-
Video output systems:
-
HDMI, HD-SDI, Composite(BNC)
Product Description
Video Presentation
Product Features
|
1
|
Designed for long-range surveillance
|
|
|
|
|||
|
2
|
Built-in 20-800mm varifocal lens for 40x optical zoom
|
|
|
|
|||
|
3
|
1.25x digital zoom
|
|
|
|
|||
|
4
|
Captures clear color video with minimal noise in light conditions as low as 0.00015 lux
|
|
|
|
|||
|
5
|
Auto/manual IR cut filter for day/night functionality
|
|
|
|
|||
|
6
|
Adjustable settings for use with various types of optional external illuminators (950nm, 940nm, 850nm, 808nm, and visible light)
|
|
|
|
|||
|
7
|
Combines optical image stabilization (OIS) with electronic image stabilization (EIS) to compensate for camera shake even when
shooting in the ultra-telephoto range, which is susceptible to even the slightest of shakes |
|
|
|
|||
|
8
|
High-speed autofocus enhanced by rear focus mechanism
|
|
|
|
|||
|
9
|
High-precision gyro sensors, high-thrust linear motor, and ceramic bead roller system enhance stabilization
|
|
|
|
|||
|
10
|
Continuous AF, Quick AF, and Manual Focus modes
|
|
|
|
|||
|
11
|
Auto/manual iris control
|
|
|
|
|||
|
12
|
Auto/manual gain control
|
|
|
|
|||
|
13
|
Wide dynamic range (two selectable levels)
|
|
|
|
|||
|
14
|
Backlight compensation (two selectable levels)
|
|
|
|
|||
|
15
|
Noise reduction (three selectable levels)
|
|
|
|
|||
|
16
|
Brightness, contrast, saturation, and sharpness adjustment
|
|
|
|
|||
|
17
|
Automatic white balance
|
|
|
|
|||
|
18
|
Fog reduction technology brings clarity to hazy images
|
|
|
|
|||
|
19
|
Heat haze reduction
|
|
|
|
|||
|
20
|
NTSC and PAL video output formats
|
|
|
|
|||
|
21
|
HDMI and BNC output connectors
|
|
|
|
|||
|
22
|
Audio input and output for two-way talk
|
|
|
|
|||
|
23
|
SD card slot for edge storage supports up to 8GB (SD card available separately)
|
|
|
|
|||
|
24
|
RS-485 serial control, Pelco-D, and Pelco-P protocol support
|
|
|
|
|||
|
25
|
H.264 video compression for efficient storage and bandwidth use
|
|
|
|
|||
|
26
|
Supports Windows 7 and 10 operating systems
|
|
|
|
|||
|
27
|
Up to 13 simultaneous users
|
|
|
|
|||
|
28
|
Pivots vertically from -45 to 45°
|
|
|
|
|||
|
29
|
M112x1mm filter thread
|
|
|
|
|||
|
30
|
Runs on 12 VDC
|
|
|
|
|||
|
31
|
Rugged aluminum enclosure
|
|
|
|
|||
|
32
|
Two M4 mounting holes on top for optional carry handle
|
|
|
|
|||
|
33
|
1/4"-20 and UNC 20 mounting holes on bottom
|
|
|
|
|||
|
34
|
ONVIF Profile S compliant
|
|
|
|
|||

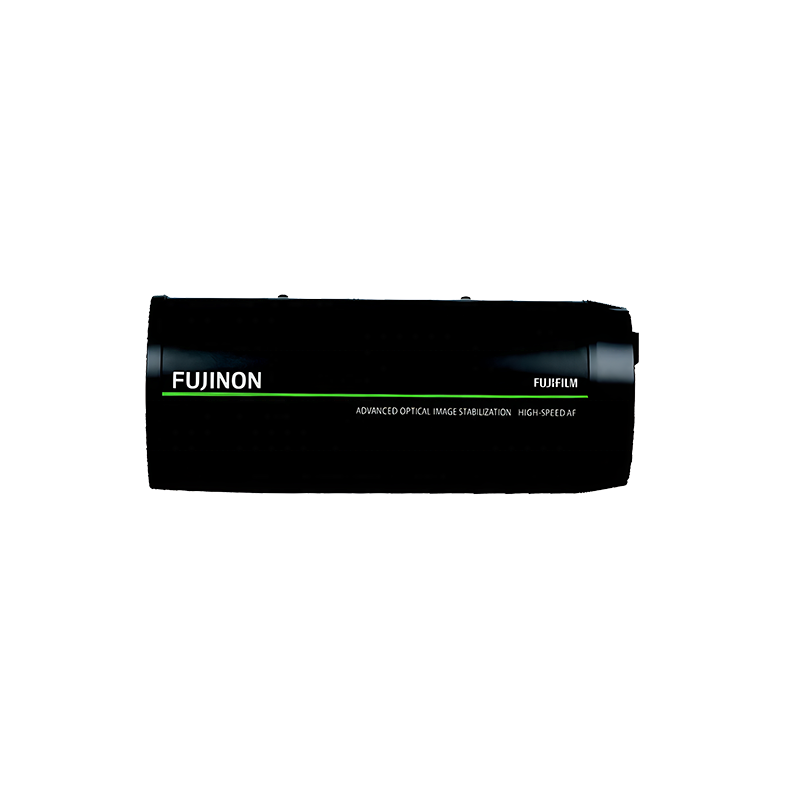

Developing Systems & Technologies SX800/SX801
01
Long-range surveillance
Optical telephoto range 800mm (with digital zoom up to 1600mm, 80x zoom)
The SX800 is equipped with a 40x optical zoom lens that covers a broad range of focal lengths from 20mm on the wide angle end to 800mm on the telephoto end. It is complemented up to 2x digital zoom to achieve long-range surveillance equivalent to 1600mm in focal length.
02
High-performance image stabilization
The SX800 combines optical image stabilization (OIS) and electronic image stabilization (EIS) to accurately compensate for camera shake, typically caused by gusts and footing vibrations at the site of camera installation. The system is particularly effective when shooting in the ultra-telephoto range, which is susceptible to even the slightest of shakes.
The SX800’s OIS uses a unique “ceramic bead roller” system. Ceramic beads, processed in
ultimate precision, minimizes friction and resistance to achieve advanced
responsiveness and excellent
durability in image stabilization.
ultimate precision, minimizes friction and resistance to achieve advanced
responsiveness and excellent
durability in image stabilization.
Use of new devices
The SX800 sports high-precision gyro sensors to accurately detect minute vibrations that could not be detected previously.The use of newly-developed high-thrust linear motor delivers an advanced level of accuracy and tracking performance.
High-performance EIS
In the EIS mode, the SX800 uses a sensor large enough for its lens’s effective diameter to secure full HD resolution (1920 x1080), thereby delivering footage of premium quality. The combined use with OIS also improves the durability of the image stabilization system substantially.
03 High-speed AF system
On-sensor phase detection AF
The on-sensor phase detection AF uses phase detection pixels across the sensor to instantaneously measure distance according to the displacement of incident lights. The SX800 also offers “contrast AF,” which detects areas of high contrast in images at high accuracy, and automatically switches to the optimum AF setting.
Rear Focus mechanism
The use of the Rear Focus mechanism has significantly reduced the weight of the focusing lens group. This has also dramatically increased the focus drive speed to enable “continuous AF.” Users can choose between “Continuous AF,” “Quick AF” and “Manual Focus” according to the conditions where the camera is used.
Continuous AF: Auto focus continues to operate and keeps adjusting the focus.
Quick AF: Automatically focuses on a subject once after zoom operation.
MF: Manually focus on the subject.
04 Image processing technology
Low light conditions
The use of the highly sensitive sensor and the effect of advanced noise reduction mean the SX800 can shoot clear footage with minimal noise even in low light conditions.
Fog reduction
The SX800 uses a unique imaging technology to bring vivid clarity to hazy images caused by light diffusion with airborne mist droplets and dust.
Heat haze reduction
The SX800 uses a unique image processing technology to reduce the shimmering effect of heat haze, caused by large difference in atmospheric temperatures, to make the entire images easier to see.
05
Simplified setup
Cameras with built-in lens
Conventional surveillance systems require the adjustment of optical axis and flange focal length when mounting a lens on a camera. The SX800, which carries a built-in lens, is shipped with such settings optimally adjusted to bring out maximum performance. The design also
eliminates the need for complicated wiring, thereby significantly reducing man-hours
at the time of installation.
New design with advanced rigidity and portability
The SX800’s aluminum extrusion body is highly rigid and exceptionally robust. A carrying handle* may be attached to the
body, using screw holes at the top, for transporting convenience.
Optical anti-vibration function “OS-TECH”
Lenses with long focal lengths have a narrow angle of view at the telephoto end. Camera movements due to wind or because of the height of installation position cause image blur, making it difficult to capture subject matter. In order to minimize motion blur under such conditions as much as possible to keep footage stable and clear, Fujinon’s CCTV lenses are fitted with Fujifilm’s original optical anti-vibration function called OS-TECH. A gyro sensor within a lens detects the amount of vibrations, and passes the data to the lens’s microcomputer, which uses a software program to calculate the amount of correction needed and shift the correction lens group to control image shake. The fact that the correction is applied optically with lens elements, means the function has no time lag, and provides anti-vibration effect edge-to-edge across the full-HD screen. During the development stage,special considerations have been paid to durability and reliability through the use of highly reliable bearings in anti-vibration parts.
Usual view at fog or rain
Clear view with visible-light-cut Filter
Product Paramenters
|
Model
|
|
|
SX800 / SX801
|
||
|
Optical zoom
|
|
|
40x
|
||
|
Digital zoom
|
|
|
1.25x, 1.5x, 1.75x, 2x
|
||
|
Focal length
|
|
|
20mm – 800mm
|
||
|
Maximum aperture ratio
|
|
|
1:4 (20mm), 1:7.4 (800mm)
|
||
|
Minimum object distance (M.O.D) from the front lens
|
|
|
10m (20 – 400mm in focal length) 20m (401 – 800mm in focal length)
|
||
|
Angle of view［16:9 (H x V) ］
|
|
|
20mm 21.0° x 11.8° 800mm 0.55° x 0.31°
|
||
|
Effective sensor size
|
|
|
1/1.8"
|
||
|
Minimum illumination
|
|
|
Color 0.00015 lux (at F1.2) / 0.0017 lux (at F4.0) B/W 0.0001 lux (at F1.2) / 0.0011 lux (atf4.0)
|
||
|
Focus settings
|
|
|
Continuous AF, Quick AF, Manual
|
||
|
Iris
|
|
|
Auto, Manual (Aperture range : F4 – F16)
|
||
|
Shutter speed
|
|
|
Auto (with minimum speed selection of 1/8 – 1/125s), Manual (1 – 1/32000s)
|
||
|
Gain
|
|
|
AGC, HYPER-AGC, Manual (Setting range : ISO400 – 819200)
|
||
|
Optical filter
|
|
|
Visible Light Cut filter (ON / OFF)
|
||
|
Day / Night selection
|
|
|
Auto, Scheduled, Manual
|
||
|
Wavelengths selection
|
|
|
950nm, 940nm, 850nm, 808nm, Visible light
|
||
|
Image stabilization
|
|
|
Auto, OIS, EIS, OFF
|
||
|
Wide dynamic range
|
|
|
Selectable (2 levels)
|
||
|
Back light correction
|
|
|
Selectable (2 levels)
|
||
|
Heat haze reduction
|
|
|
Selectable (3 levels)
|
||
|
Fog reduction
|
|
|
Selectable (3 levels)
|
||
|
Noise reduction
|
|
|
Selectable (3 levels)
|
||
|
Brightness / Contrast / Saturation / Sharpness
|
|
|
Selectable (100 levels)
|
||
|
White balance
|
|
|
AWB, AWB-W, Custom 1 – 2, Fine, Shade, Color Temperature (3000K, 5000K, 9000K)
|
||
|
Video format
|
|
|
NTSC : 1080p, 720p, 480p / PAL : 1080p, 720p, 576p
|
||
|
Video output systems
|
|
|
HDMI, HD-SDI, Composite(BNC)
|
||
|
Audio input / output
|
|
|
Input impedance : 40kΩ / Output impedance : 200Ω
|
||
|
External interfaces
|
|
|
Ethernet (10Base -T, 100Base-TX, RJ45 connector), RS-485 (Half duplex), External trigger (Day / Night)
|
||
|
RS-485 compatible protocol
|
|
|
Pelco-D / Pelco-P (including extended commands)
|
||
|
Power source
|
|
|
DC12V
|
||
|
Power consumption
|
|
|
SX800 : 9.5W / SX801 : 15W
|
||
|
Supported SD card (SDHC / SDXC)
|
|
|
UHS-1-compatible 8GB+, SD Speed Class 10 or above
|
||
|
File recording format
|
|
|
MOV (Video encoding : H.264 compliant, Motion JPEG)
|
||
|
Network protocols
|
|
|
ICMP, ARP, TCP / IP, UDP / IP, HTTP, RTSP, RTP, DHCP, DNS, RTP/RTCP, SNTP
|
||
|
Supported OS
|
|
|
Windows 10
|
||
|
Supported browser
|
|
|
Google Chrome 71+ (Only SX800)
|
||
|
ONVIF support
|
|
|
Yes (Profile S)
|
||
|
Number of videos delivered
|
|
|
SX800 : 1 / SX801 : 3
|
||
|
Size (H x W x L)
|
|
|
139mm x 156mm x 410mm
|
||
|
Weight
|
|
|
6.4kg
|
||
|
Filter thread size
|
|
|
M112 x 1mm
|
||
|
Operating environment
|
|
|
Temperature : –10°C – +50°C / Humidity : 10% – 80% (no condensation)
|
||
|
Tilt limit
|
|
|
45 degrees upward – 45 degrees downward
|
||
Applicable Scenarios
-
Expressway
-
高速公路沿线监控
-
The highway traffic monitoring system is an important component of highways. The real-time highway full process monitoring system can not only improve the average speed of vehicles, reduce traffic congestion, reduce vehicle wear and tear, shorten transportation time, but also greatly reduce the occurrence of traffic accidents, and play the fast, safe, and efficient functions of highways.
-
Oilfield and pipeline
By monitoring the operation of oil fields and pipelines in real time, potential safety hazards can be identified and dealt with in a timely manner, which can effectively prevent accidents from occurring
-
Rivers and Lakes
Real time monitoring of Rivers and Lakes can provide effective guarantee for waterway transportation, environmental protection, flood season rescue, etc
-
Forest
Forests are one of the most important ecosystems on Earth, and forest monitoring can detect fires and human damage to forest resources in a timely manner
-
Farm
Farm monitoring can effectively prevent theft, animal damage, and illegal entry.
In addition to the above usage scenarios, it can also be applied to various scenarios such as airports, railways, military bases, ports, borders, urban security, animal protection, environmental monitoring, counter-terrorism and riot prevention, and agricultural breeding.
