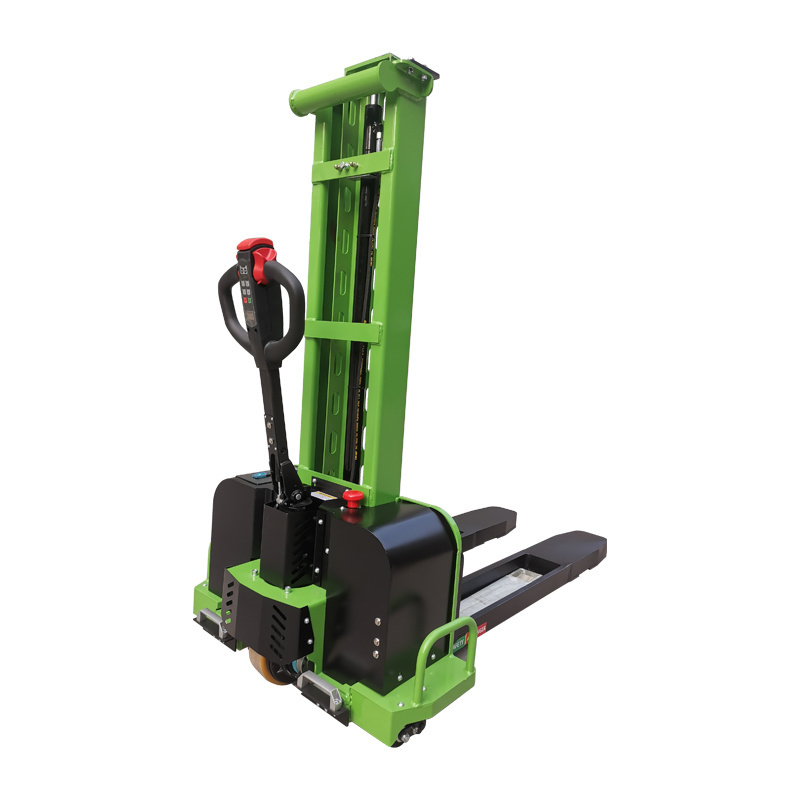

WELIFTRICH ZTS-10F 1000kg Lifting Height 1300mm 1600mm Full electric self lifting loading stacker car For Vans

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2100

≥4 Pieces

US $2000

≥10 Pieces

US $1900

Free Inquiry

Customized Request

Quick Details

Model		ZTS-10F
Model		ZTS-10F
Maximum load capacity	kg	1000	1000	1000	1000	1000
with load center at	mm	400	400	400	400	400
Weight (with battery)	kg	436	440	448	456	464
Maximum lifting height	mm	800	900	1100	1300	1500
Lifting speed (without load)	mm/s	140	140	140	140	140
Lifting speed (with load)	mm/s	135	135	135	135	135
Lowered speed (without load)	mm/s	140	140	140	140	140
Lowered speed (with load)	mm/s	145	145	145	145	145
Overall length of frame	mm	1658	1658	1658	1658	1658
Overall width of frame	mm	900	900	900	900	900
Mast lowered height	mm	1158	1258	1458	1658	1678
Max height(mast lifted with backrest	mm	2375	2475	2675	2875	3075
Wheelbase	mm	985	985	985	985	985
Fork length	mm	1188	1188	1188	1188	1188
Fork outside width	mm	680	680	680	680	680
Fork inside width	mm	270	270	270	270	270
Fork thickness	mm	80	80	80	80	80
width of theoretical minimum aisle for right-angle stacking (1200x1000)	mm	1500	1500	1500	1500	1500
Min frounf height	mm	20	20	20	20	20
Fork lowered height	mm	90	90	90	90	90
Minimum turning radius	mm	1300	1300	1300	1300	1300
Front wheel	mm	80*50	80*50	80*50	80*50	80*50
Type or drive motor	DC
Rated output	KW	0.75	0.75	0.75	0.75	0.75
Lifting motor	DC
Rated output	kw	0.8	0.8	0.8	0.8	0.8
Voltage	V	24	24	24	24	24
Capacity	AH	45	45	45	45	45
