Quick Details
-
Weight (KG):
-
280 kg
Quick Details
-
Mixing Power:
-
6HP
-
Productivity:
-
5M³/H
-
Place of Origin:
-
China
-
Weight (KG):
-
280 kg

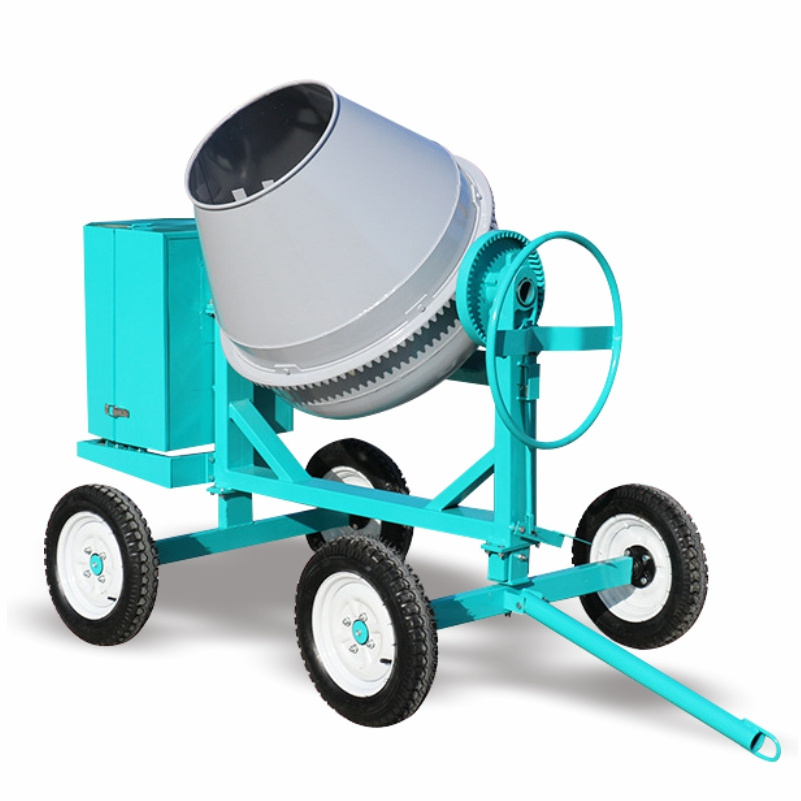

Cement Mixer Drum New Design Mini Cement Mixer Diesel Cement Grouting Mixer
A
concrete mixer
can be used for mixing plastic and semi-dry concrete. The mixing drum rotates forward to stir and reverse to discharge, and it can produce
5 to 6 cubic meters per hour
. It is suitable for construction sites, roads, bridge projects, and small and medium-sized concrete component factories without electricity. These small devices can be used for a wide range of projects, including repairing driveways, pouring cement patios, and even making cement fixtures for the lawn and garden.
Specification
|
All-steel construction, Mini Concrete Mixer has a long life span.
The powder-coat finish on the drum and frame adds durability cement mixer 260L-450L capacity well suits small to medium size projects cement mixer for big cement mixer. One-piece cast iron ring gear for longer life cement mixer for big cement mixer Equipped with 17inch large wheels cement mixer for big cement mixer A towable handle ensures easier transportation |
|
Model
|
ID400-2C
|
ID400-4C
|
|
|
Drum capacity
|
400L
|
400L
|
|
|
Mixing capacity
|
320L
|
320L
|
|
|
Productivity
|
5-6m³/h
|
5-6m³/h
|
|
|
Bags of cement per batch
|
1 Bag cement(50KG/BAG)
|
1 Bag cement(50KG/BAG)
|
|
|
Drum rotation speed
|
25-30rpm
|
25-30rpm
|
|
|
Drum thickness
|
3mm/4mm(Upper/Bottom)
|
3mm/4mm(Upper/Bottom)
|
|
|
Drum size
|
Φ850*900mm
|
Φ850*900mm
|
|
|
Tyre size and QTY
|
2x(4.00-12)
|
4x(4.00-12)
|
|
|
Overall size
|
2100x1200x1700 mm
|
2100x1200x1700 mm
|
|
|
Packing size
|
1960x960x1200 mm
|
1960x960x1200 mm
|
|
|
Container Loading Plan
|
12 Sets with Assembled in 20GP Container, 24 Sets in CKD condition in 20GP Container
26 Sets with Assembled in 40HQ Container, 54 Sets in CKD condition in 40HQ Container
|
|
|
|
Power Option
|
ID400-2C weight
|
ID400-4C weight
|
|
Air-cooled Diesel Engine 178FS(6HP)
|
290 kg
|
310 kg
|
|
Air-cooled Diesel Engine 186FS(10HP)
|
310 kg
|
330 kg
|
|
Water-cooled Diesel Engine R180(8HP)
|
320 kg
|
340 kg
|
|
HONDA Gasoline Engine
|
280 kg
|
300 kg
|
|
Electric Motor (3 kW)
|
290 kg
|
310 kg
|
Product Description
Details Images
There are three options for power configuration, which can be equipped with electric motor, gasoline engine, or diesel engine according to customer needs.（
Match the right power to your requirements
）
We can customize colors according to your needs, yellow and orange are the best selling colors. You can also tell me your preference, we support color selection.
Drum thickness
The mixer body has a thickness of 4mm, which is thickened to make it stronger and more durable when mixing concrete.
Packing & Delivery
1 unit was packed into an iron frame and then packed with 5 layers of corrugated carton. 4 strips reinforced the carton. the fix package guaranteed the machines were not damaged during transportation
