Quick Details
-
Warranty:
-
12 Months
-
Brand Name:
-
JOYROAD
-
Accuracy Distance:
-
50-100CM
-
Power Consumption(W):
-
4W
-
Function:
-
Audio warning
-
Function 1:
-
Safe Driving Assist
-
ADAS:
-
Blind Spot Monitor System
-
Warning Type:
-
Buzzer
-
Function 4:
-
ADVANCE DRIVING ASSISTANT
-
GPS:
-
GPS+Beidou
-
Function 3:
-
DRIVER STATUS MONITORING
-
Color:
-
Black
-
Function 2:
-
Mobile DVR
-
Keyword:
-
Universal Collision Avoidance System
-
Technology:
-
Eye Detection
Quick Details
-
Car Fitment:
-
New Flyer, ONAN, Yamaha Sportboat, Rayton Fissore, Eaton Lift, ABG (Allg Baumasch Gesellsch), SAIC-VW
-
Voltages:
-
DC 9-36V
-
Frequency Band:
-
BAND 1/3/4/5/6/7/8/18/28/38
-
Warranty:
-
12 Months
-
Brand Name:
-
JOYROAD
-
Accuracy Distance:
-
50-100CM
-
Power Consumption(W):
-
4W
-
Function:
-
Audio warning
-
Function 1:
-
Safe Driving Assist
-
ADAS:
-
Blind Spot Monitor System
-
Warning Type:
-
Buzzer
-
Function 4:
-
ADVANCE DRIVING ASSISTANT
-
GPS:
-
GPS+Beidou
-
Function 3:
-
DRIVER STATUS MONITORING
-
Color:
-
Black
-
Function 2:
-
Mobile DVR
-
Keyword:
-
Universal Collision Avoidance System
-
Technology:
-
Eye Detection

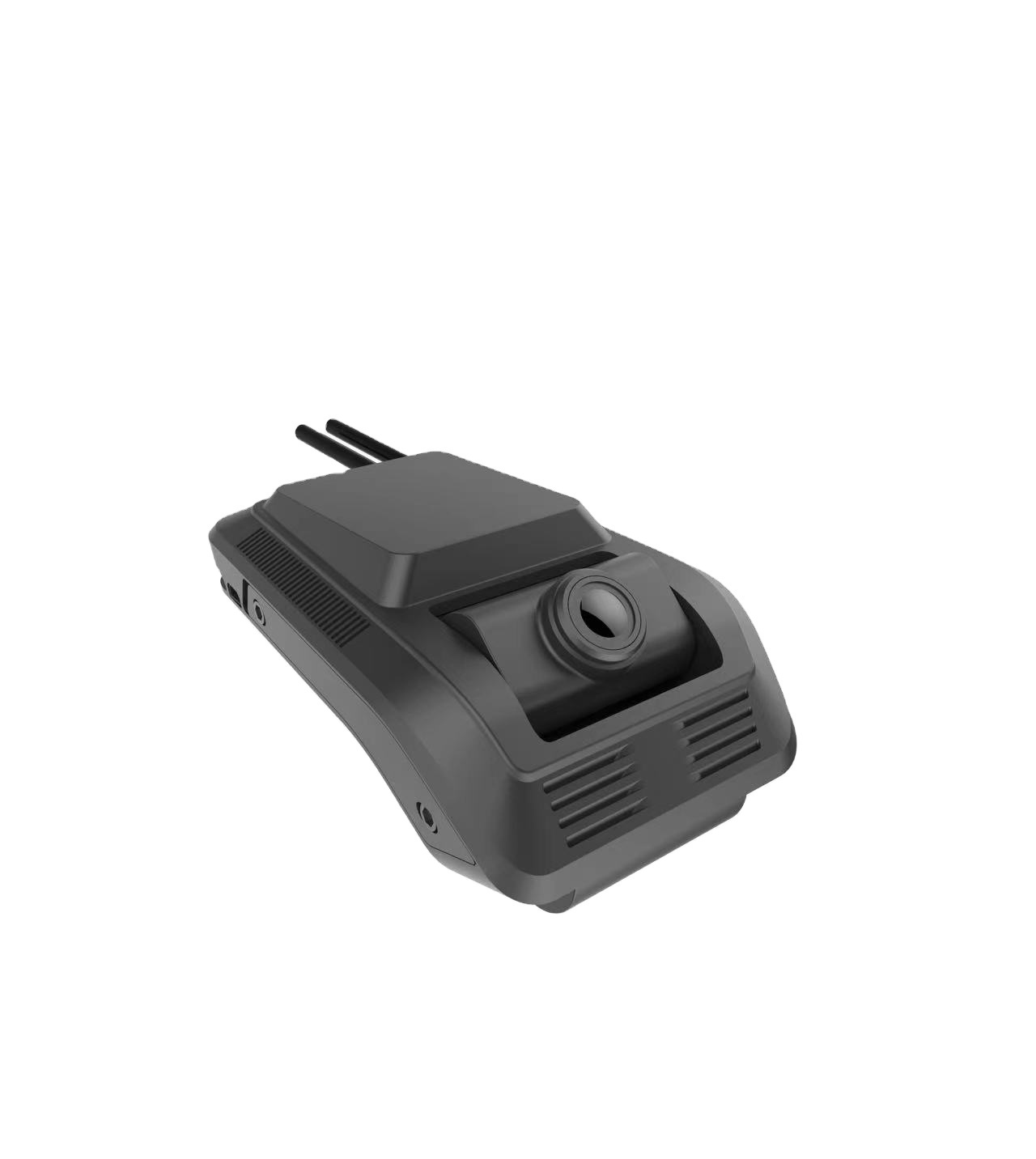

1 080P ADAS+DSM Dash Camera
Features :
1. Front high-definition 1080P camera s and Rear 720P camera s , plus extended 1 -channel 720 P cameras, simultaneous recording inside and outside the car;
2. Infrared night vision, the video is clearly visible in the dark environment in the car;
3. Support TF card recording, support 32G/64G/128G/256G/512G high speed ;
4. Special file system, loop recording, to ensure the safety and stability of video files;
5. Built-in super capacitor, when the device is abnormally powered off, it can work continuously for 3 seconds and complete the video file;
6. 4G Full Netcom, supports global frequency bands;
7. BD/GPS Dual-mode positioning, AGPS positioning and other positioning methods, support driving track playback;
8. One-click picture capture, automatic picture upload platform;
9. One-click SOS emergency alarm, video upload before and after alarm;
10. Support multiple alarm types: low pressure alarm, overspeed alarm, parking overtime alarm, fatigue driving alarm, SOS alarm, collision alarm, video occlusion alarm, etc.;
11. Support platform real-time monitoring, monitoring, intercom, track playback, remote capture, remote playback and other functions;
12. Support multiple network protocol platforms,C MSV6 , JT/T 794-2011 , JT/T 808-2011 , JT/T 1078 , JT/T 9 05.2-2014 , GB28181 etc;
13. Equipment automatic detection function, active discovery of equipment failures, easy operation and maintenance;
14. Support driver face recognition (optional);
Support advanced driver assistance system (ADAS) (optional): lane deviation alarm, forward collision alarm, and vehicle distance too close alarm;
Driver Behavior Analysis (DSM) (optional): lower your head, call, smoke, look around, yawn, close your eyes, face not detected, cover camera, etc.
Product parameter :
|
Basic configuration |
|
|
C PU |
ARM Cortex-A7 1.0GHZ |
|
Memory |
2GB |
|
Outside camera |
2MP sensor ,95 Degree. F4.3 Support wide dynamic W DR |
|
In-car camera |
1 MP s ensor,135 Degree Wide angle. F2.8 With infrared night vision, the video is clearly visible in the dark environment in the car |
|
Dual memory card |
Support TF cards,32GB/64GB/128G/256G |
|
Positioning |
Beidou/GPS dual-mode high-precision positioning module |
|
Gyro |
Collision alarm, vibration alarm |
|
Speaker and Mic |
Build in |
|
ADAS algorithm (optional) |
Advanced driving assistance system: lane deviation alarm, forward collision alarm, and vehicle distance too close alarm |
|
DSM algorithm + DSM camera (optional) |
Driver behavior analysis: head down, call, smoke, look around, yawn, close eyes, no face detected, cover the camera |
|
Face recognition algorithm (optional) |
Identify the driver and report |
|
Recording parameters |
|
|
Video resolution |
1080P/ 720 P/D1 |
|
Video format |
H264 Compression format |
|
file format |
Special file system, can export asf file |
|
Network parameters |
|
|
4 G |
All domestic Netcom supports China Mobile, China Unicom, telecommunications cards, and IoT cards; Overseas support for global frequency bands; |
|
W IFI |
2.4G frequency, support WIFI STA/AP mode, support mobile preview |
|
External Interface |
|
|
V CC |
powered by 9 V - 36V |
|
G ND |
Ground |
|
ACC |
Ignition detection, control switch |
|
S OS button |
Emergency button, video upload before and after the police |
|
External display ( op tional) |
C VBS Interface, video output |
|
Serial port |
1xRS232, support extended functions |
|
external cameras |
1 xAHD interface camera |
|
One-key restore settings |
Support one-key factory reset function |
|
structure |
|
|
volume(mm) |
120 * 77 * 55 mm |
|
weight |
Around 2 40 g±1 0 g |
|
working environment |
|
|
Operating temperature |
-20℃~+ 70 ℃ |
|
Relative humidity |
≤93% |
