- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
HW-25
-
Power:
-
60HP
-
Weight:
-
2200kg, 1950kg
-
Dimension(L*W*H):
-
4580mm*1500mm*2100mm
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-

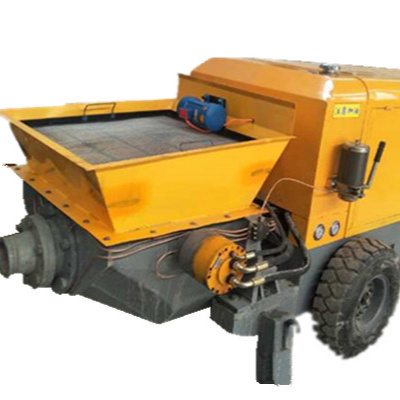

Concrete Pump
-
Application:
-
Concrete Transfer
-
MAX.output pressure:
-
10Mpa
-
Power:60hp:
-
Power:60hp
-
Bore stroke:
-
140*1000
-
MAX.grain diameter:
-
≤20mm
-
Maximum level delivery distance:
-
200M
-
Maximum vertical delivery distance:
-
100M
-
Dimensions (L *W * H):
-
4000*1300*1550
-
Certification:
-
ISO9001
Quick Details
-
Power Type:
-
Diesel
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HW
-
Model Number:
-
HW-25
-
Power:
-
60HP
-
Weight:
-
2200kg, 1950kg
-
Dimension(L*W*H):
-
4580mm*1500mm*2100mm
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Concrete Pump
-
Application:
-
Concrete Transfer
-
MAX.output pressure:
-
10Mpa
-
Power:60hp:
-
Power:60hp
-
Bore stroke:
-
140*1000
-
MAX.grain diameter:
-
≤20mm
-
Maximum level delivery distance:
-
200M
-
Maximum vertical delivery distance:
-
100M
-
Dimensions (L *W * H):
-
4000*1300*1550
-
Certification:
-
ISO9001
|
Model No./Concrete pump |
HW25-10 |
|
Max. theoretical concrete output(m ³ /h) |
Low pressure 25/high pressure 14 |
|
Max. theoretical concrete pumping pressure(Mpa) |
Low pressure 5.5 /high pressure 10 |
|
Theoretical vertical conveying height(m) |
130 |
|
Theoretical level transmission distance(m) |
350 |
|
Allowing the concrete slump(mm) |
100-230 |
|
Max. Aggregate particles(mm) |
37 |
|
Hopper volume(m³) |
0.4 |
|
Filling height(mm) |
1000 |
|
Concrete cylinder diameter × stroke(mm) |
Φ140×1000 |
|
Dynamic brand |
electric engine |
|
Fuel consumption(g/h.kw) |
227 |
|
Hydraulic system |
Double circuit opening system |
|
Brand of main pump |
Kavasaki |
|
Max. hydraulic system pressure(Mpa) |
25 |
|
The radiator flow(L/min) |
Air cooling system |
|
Electric control |
PLC |
|
Concrete tube conveying diameter(mm) |
Φ76/Φ89 |
|
Max. towing speed(km/h) |
15 |
|
Overall dimension(L×W×H)(mm) |
3770×1420×1620 |
|
Total weight(kg) |
2100 |
|
Hydraulic pump type |
Ram pump |
