Quick Details
-
Brand Name:
-
solarpione
-
Model Number:
-
SRF-253M
-
Name:
-
MRK1 Metal Wiegand Keypad Reader
-
Card:
-
EM & H.I.D Card
-
Operating Voltage:
-
9~18V d c
-
Frequency:
-
125KHz
-
Read Range:
-
4~8 CM
-
Index of Protection:
-
IP66
-
Dimensions:
-
12.0L x 7.6W x 2.5H (cm)
-
Operating Temperature:
-
-40 ℃ ~ 60 ℃
-
Standby Current:
-
< 35mA
-
Operating Humidity:
-
0%~96% RH
Quick Details
-
Special Features:
-
Waterproof / Weatherproof, access control
-
Customized support:
-
Customized logo
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
solarpione
-
Model Number:
-
SRF-253M
-
Name:
-
MRK1 Metal Wiegand Keypad Reader
-
Card:
-
EM & H.I.D Card
-
Operating Voltage:
-
9~18V d c
-
Frequency:
-
125KHz
-
Read Range:
-
4~8 CM
-
Index of Protection:
-
IP66
-
Dimensions:
-
12.0L x 7.6W x 2.5H (cm)
-
Operating Temperature:
-
-40 ℃ ~ 60 ℃
-
Standby Current:
-
< 35mA
-
Operating Humidity:
-
0%~96% RH

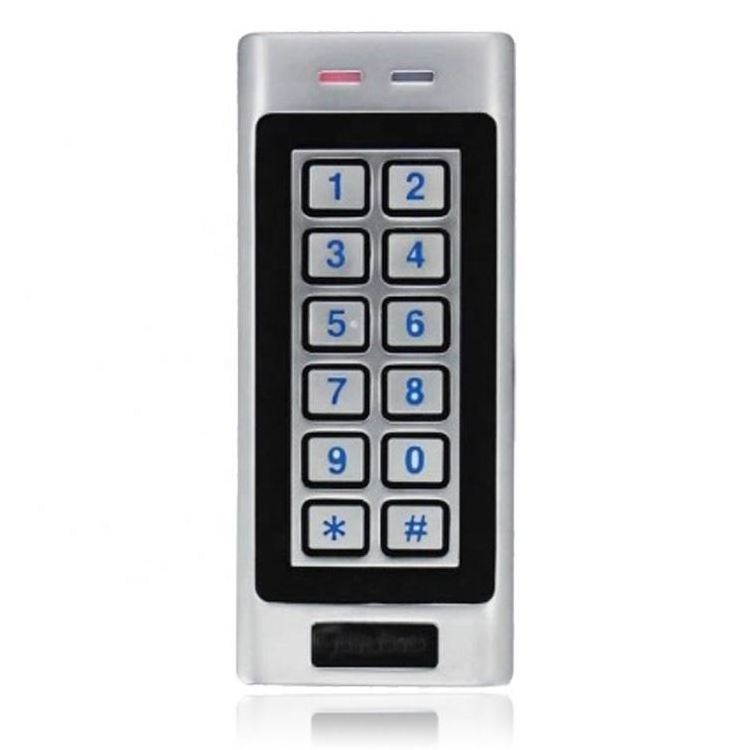

Wiegand26/34 IP66 Waterproof Outdoor Metal Keypad RFID Wiegand Reader
MRK1 EM is of digital backlit, supports to read 125KHz EM cards.
It is a metal case, Wiegand output keypad, with integrated proximity reader.
Because of waterproof, it can be mounted either indoor or outdoor in harsh environment.
Features:
Technical Specification:
| Name | MRK1 keypad access control |
| Index of Protection | IP66 |
| Frequency | 125KHz |
| Card Type | EM Cards/Fobs |
| Read Range | 4~8 cm |
| Standby Current | <35mA |
| Operating Voltage | 12~24V |
| Wiegand Output Format | Wiegand 26 bits (factory default) |
| 26~37 bits available upon request | |
| Keypad Transmission Format | 4 bits (factory default) |
| 8 bits or virtual card number format are available upon request | |
| Operating Temperature | -40 oC ~ 60 oC (-40 oF ~ 140 oF) |
| Operating Humidity | 0% RH ~ 96% RH |
| Dimension | 12.0L x7.6W x 2.5H (cm) |
| Net Weight | 470g |
| Shipment Weight | 550g |
|
1.What is your minimum order quantity? |
Actually, we don't have strict rules on MOQ and welcome you to get samples for testing.
| 2.What is your payment term? |
Bank T/T, Paypal, L/C, Western Union and MoneyGram.
| 3.What about the shipping way? |
Generally, the package is delivered by Express DHL/Fedex/TNT/UPS. For big order, we recommend to ship by air or sea to save cost, but it might take longer time. Of course we could ship goods to your forwarder in China according to different customers requirements.
| 4.How long does it take? |
Usually we need 2-8 days differently for preparing and another 3-7 days for delivery. If special products, may need more time.
| 5.What about the warranty? |
We provide 1-2 years warranty from the date of delivery but lifetime technical support.
