Quick Details
-
Weight (KG):
-
130
-
Voltage:
-
380V
-
Current:
-
40-2500A
-
Rated Capacity:
-
108 KVA
-
Rated Duty Cycle:
-
80%
-
Dimensions:
-
875*445*1070mm
-
Use:
-
stud welder
-
Product name:
-
shear arc stud welding machine
-
Rated Input Current:
-
163A
-
Rated Input Power:
-
108 KVA
-
No-load Voltage:
-
80V
-
Welding Voltage:
-
32VDC
-
Welding Time:
-
0.01-4.0
-
Welding Scope:
-
3-25mm
-
Weldable bolt length(mm):
-
≤400
-
Color:
-
Red
Quick Details
-
Core Components:
-
Inverter
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZELDA
-
Weight (KG):
-
130
-
Voltage:
-
380V
-
Current:
-
40-2500A
-
Rated Capacity:
-
108 KVA
-
Rated Duty Cycle:
-
80%
-
Dimensions:
-
875*445*1070mm
-
Use:
-
stud welder
-
Product name:
-
shear arc stud welding machine
-
Rated Input Current:
-
163A
-
Rated Input Power:
-
108 KVA
-
No-load Voltage:
-
80V
-
Welding Voltage:
-
32VDC
-
Welding Time:
-
0.01-4.0
-
Welding Scope:
-
3-25mm
-
Weldable bolt length(mm):
-
≤400
-
Color:
-
Red

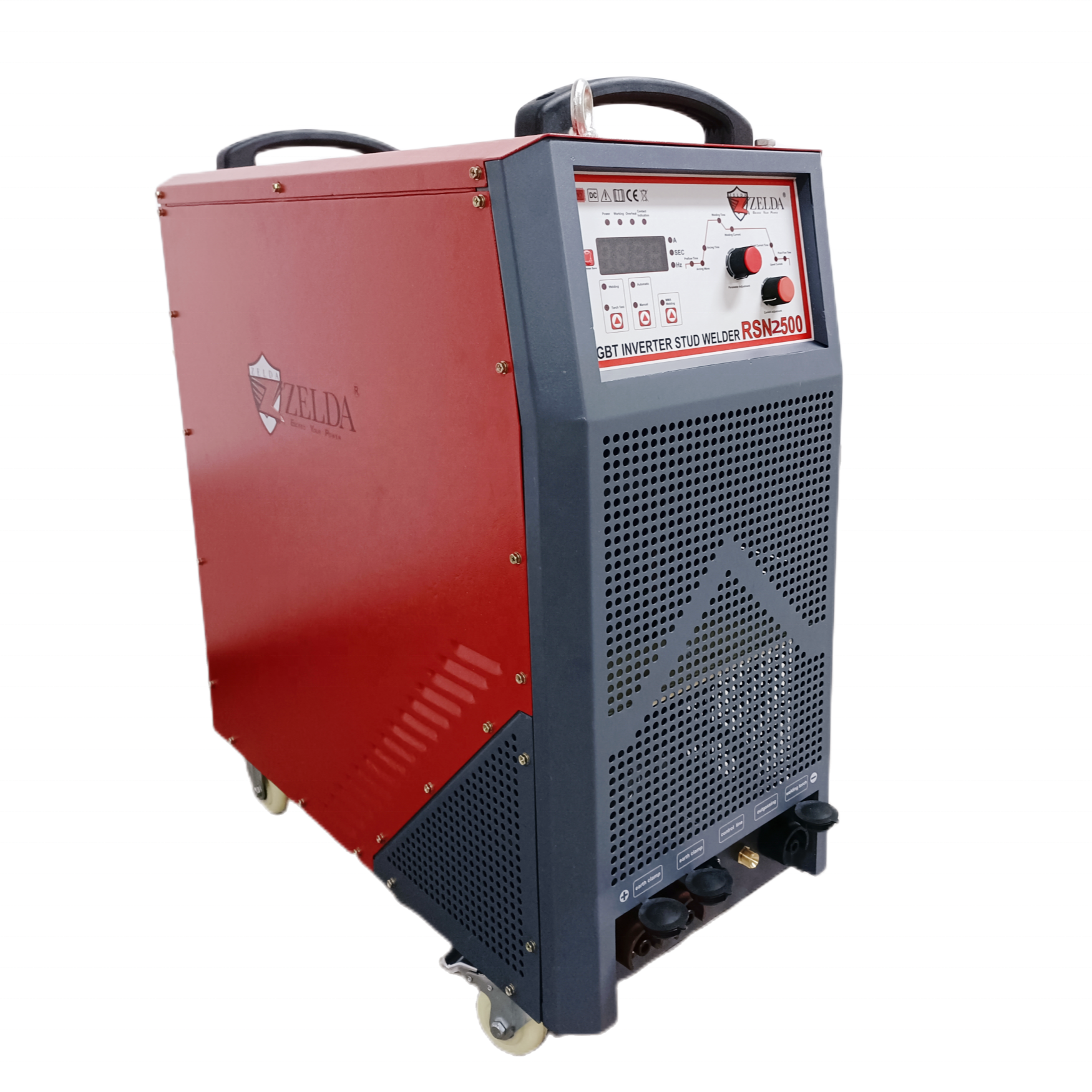

Heavy Steel Structure RSN-2500 Welding Equipment Shear Arc Stud Bolt Welding Machine
Advantage:
⇒ High efficiency, high power factor, energy-saving .
⇒ Easy to operate, easy to adjust, with control function display.
⇒ Adopting constant current charging circuit, charging speed is fast and energy saving.
⇒ The welding gun adopts shatterproof reinforcing material, which is light in size and light in
weight, and the chuck is quick to change and has a wide application range.
⇒The welding current can be preset, and the adjustment range is wider, the operation is more
concise and convenient.
Product Specifications
| Model | RSN-1600 | RSN-2500 | RSN-3500 |
| Rated Input Voltage | 3ph,380V±10% | 3ph,380V±10% | 3ph,380V±10% |
| Rated Input Current | 103A | 163A | 205A |
| Rated Input Power | 68 KVA | 108 KVA | 136 KVA |
| No-load Voltage | 80V | 80V | 80V |
| Welding Voltage | 32VDC | 32VDC | 32VDC |
| Welding Speed ( pcs / min) | 10-35 | 10-35 | 10-35 |
| Welding Current(A) | 40-1600 | 40-2500 | 40-3500 |
| Efficiency(Max. output) | 80% | 80% | 80% |
| Power factor(Max. Output) | 0.94 | 0.94 | 0.94 |
| Weldable bolt dia(mm) | φ3-19 | φ3-25 | φ3-32 |
| Welding time | 0.01-4.0 | 0.01-4.0 | 0.01-4.0 |
| Weldable bolt length(mm) | ≤400 | ≤ 4 00 | ≤ 4 00 |
| Insulation Class | F | F | F |
| Protection Class | IP21S | I P 2 1S | I P 2 1S |
| Weight(KG) | 95 | 102 | 105 |
| Dimension(mm) | 860*445*885 | 875*445*1070 | 875*445*1070 |
