Excellent at collision resistant, Intensive vibration resistant, and is perfect at algae
control, Easy cleaning, Rodent prevention a Termite prevention.
1. Major Material: LLDPE food-grade raw plastic
2. Process: Rotational Molding
3. Common color: White, black, red, orange, blue, and yellow
4. Uniform wall thickness.
5. Thickness and weight can be varied for extra strength requirements.
6. Excellent material guarantee the long period of useful life.
7. Performance:
One-piece rotomolding product,
No welds or joints to fail.
- Product Details
- {{item.text}}
Quick Details
-
Max. Loading Capacity:
-
2000L
-
Weight (KG):
-
20 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
EWT
-
Voltage:
-
220/380V, 220V/380V
-
Dimension(L*W*H):
-
Customize
-
Power (kW):
-
0.37 kW
-
Core Components:
-
agitator
-
Product name:
-
Chemical Liquid Motor Detergent Soap Dosing Tank Mixer Agitator
-
Power:
-
0.37kw/0.5kw/0.2kw
-
Length of shaft:
-
1000mm
-
electricity box:
-
single/double/triple
-
Rotate Speed:
-
140/minute
-
Dia of impeller:
-
200mm
Quick Details
-
Barrel Volume (L):
-
100L
-
Max. Loading Volume (L):
-
500 L
-
Range of Spindle Speed(r.p.m):
-
1 - 139 r.p.m
-
Max. Loading Capacity:
-
2000L
-
Weight (KG):
-
20 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
EWT
-
Voltage:
-
220/380V, 220V/380V
-
Dimension(L*W*H):
-
Customize
-
Power (kW):
-
0.37 kW
-
Core Components:
-
agitator
-
Product name:
-
Chemical Liquid Motor Detergent Soap Dosing Tank Mixer Agitator
-
Power:
-
0.37kw/0.5kw/0.2kw
-
Length of shaft:
-
1000mm
-
electricity box:
-
single/double/triple
-
Rotate Speed:
-
140/minute
-
Dia of impeller:
-
200mm
Products Description

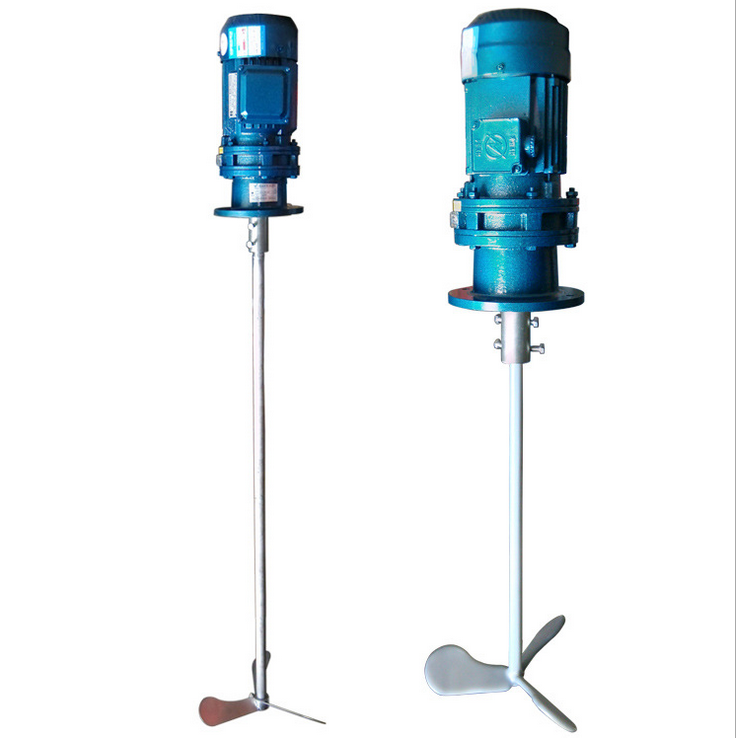

Chemical Electric Liquid Motor Detergent Soap Dosing Tank Mixer Agitator
|
A
dvantage
|
The product is tough, flexible, anti-impact and corrosion-resistant.
|
|
|
|
|||
|
|
The matching mixer is divided of direct stir and side stir, the direct mixer requires matched strengthening board and tanks, whilethe side mixer can be equip with fixed mount to improve its stir effect and tank body service life. The types of stirrer material is stainless steel.
|
|
|
|
|||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|||
|
Apply Scope
|
In water treatment mainly used in all kinds of agentia mixing,dissolve,storage, then pass by metering pump to dose solution .
|
|
|
|
|||
|
Main components
|
1.
Metering pump
-Mechanical actuated diaphragm, no-leakage structure -PVC,PTFE, PVDF,304,316 is available as the pump head material -flow can be adjusted during operation, the range is 0.5~500L/h Pressure range:0.2~1 Mpa -Automatic control who can accpet4~20mA is available (JWM-AD series) -Motor: standard 220V/380V,50Hz Regulating mode: manual / automatic |
|
|
|
|||
|
|
2.
Mixer
Rated power: 0.18~11kw; mixer diameter: 0.4~3m mixing speed: 60~200rpm |
|
|
|
|||
|
|
3.
Solution dosing tank
Material: LLDPE Volume :40L to 2000L |
|
|
|
|||
Details Images
Customer Photos
Product packing&shipping
Shipping
Shanghai,Ningbo or any port in China.The delivery in time.
Packing
wooden box package.
