Quick Details
-
Brand Name:
-
Yuneng
-
Voltage:
-
380v or request
-
Power:
-
70-200 kw
-
Dimension(L*W*H):
-
As per capacity
-
Weight:
-
As per capacity
-
Type:
-
Mobile Trailer Mounted Vacuum Transformer Oil Purifier
-
Purified Oil Water Content:
-
3~5ppm
-
Oil Refining Machine Structure:
-
Mobile
-
Material:
-
Carbon Steel
-
Filtering Accuracy:
-
1micron
-
Water content:
-
<=5ppm
-
Gas content:
-
<=0.1~0.3%
-
Raw material:
-
Dielectric oil, transformer oil, insulation oil
-
Heating method:
-
Indirect Heating
-
Certification:
-
ISO, CE, CO ect
Quick Details
-
Applicable Industries:
-
Transformer Oil Purifier
-
Flow:
-
12000L/H
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Yuneng
-
Voltage:
-
380v or request
-
Power:
-
70-200 kw
-
Dimension(L*W*H):
-
As per capacity
-
Weight:
-
As per capacity
-
Type:
-
Mobile Trailer Mounted Vacuum Transformer Oil Purifier
-
Purified Oil Water Content:
-
3~5ppm
-
Oil Refining Machine Structure:
-
Mobile
-
Material:
-
Carbon Steel
-
Filtering Accuracy:
-
1micron
-
Water content:
-
<=5ppm
-
Gas content:
-
<=0.1~0.3%
-
Raw material:
-
Dielectric oil, transformer oil, insulation oil
-
Heating method:
-
Indirect Heating
-
Certification:
-
ISO, CE, CO ect

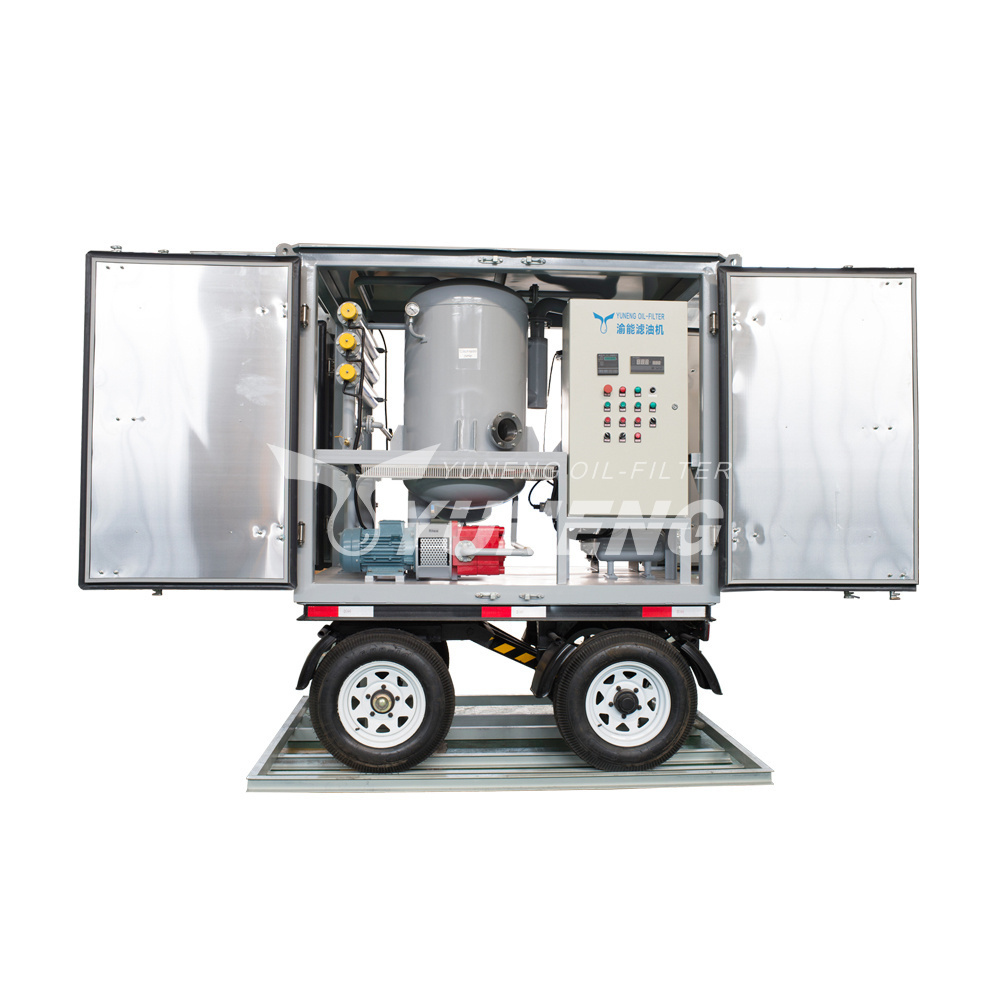

Mobile Trailer Mounted Vacuum Transformer Oil Purifier/Insulation Oil Filtration /Dielectric Oil Purification System
Mobile Trailer Mounted Vacuum Transformer Oil Purifier/Insulation Oil Filtration /Dielectric Oil Purification System
is mainly used to improve the properties of transformer oil for 66KV to 500KV power transmission project. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system. Transformer oil maintenance is the key to transformer reliability, performance and longevity. Your transformer’s insulating oil should be free from moisture, dissolved gases and particles that accumulate as the oil ages. Even some new oils may require treatment to limit these contents to acceptable levels. We are a designing, engineering and manufacturing company capable of application customization for best solutions.
Mobile Trailer Mounted Vacuum Transformer Oil Purifier/Insulation Oil Filtration /Dielectric Oil Purification System Features:
1. Used in the electric power system (66kV~500KV).
2. Features include high working vacuum, fast oil filtering and sound oil protection.
3. Suitable for oil treatment, vacuum oil injection and cyclic hot oil drying in the installation and maintenance of large capacity transformers.
Mobile Trailer Mounted Vacuum Transformer Oil Purifier/Insulation Oil Filtration /Dielectric Oil Purification System Parameters:
|
Item |
Parameter |
Type Unit |
ZJA1.8KY |
ZJA3KY |
ZJA6KY |
ZJA9KY |
ZJA12KY |
ZJA18KY |
|
|
Technical Parameter |
Flow Rate |
L/H |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
|
Working Vacuity |
Pa |
≤80 |
|||||||
|
Working Pressure |
Mpa |
≤0.35 |
|||||||
|
Temperature Range |
oC |
45-65 |
|||||||
|
Power Supply |
|
50Hz 380V 3-Phase 4-Wire (or as requested) |
|||||||
|
Total Power |
KW |
18+2.25 |
30+6 |
2X30+6.6 |
3X30+8.2 |
4X30+10 |
5X30+16.5 |
||
|
Inlet/Outlet Diameter |
mm |
32 / 25 |
38 / 32 |
44 / 38 |
48 / 44 |
64 / 48 |
76 / 64 |
||
|
Size |
Length |
mm |
1200 |
1500 |
1870 |
1930 |
2160 |
2250 |
|
|
Width |
mm |
950 |
1150 |
1250 |
1400 |
1600 |
1750 |
||
|
Height |
mm |
1600 |
2000 |
2200 |
2460 |
2650 |
2650 |
||
|
Weight |
Kg |
650 |
900 |
1200 |
1600 |
2200 |
3000 |
||
|
Oil Treatment Index |
Breakdown Voltage |
KV |
70-75 |
||||||
|
Water Content |
ppm |
3~5 |
|||||||
|
Gas Content |
% |
≤0.2 |
|||||||
|
Filtering Accuracy |
µm |
1~3 |
|||||||
