Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ChanSin
-
Model Number:
-
CX-6516 series
-
Voltage:
-
220v/380v/415v
-
Weight (KG):
-
260 KG
-
Product name:
-
Gear Tapping Machine
-
Type:
-
Vertical
-
Application:
-
Metal Tapping
-
Spindle Travel:
-
65mm
-
Max Tapping Capacity:
-
M16
-
Color:
-
Customized
-
Weight:
-
380kg
-
Certification:
-
ISO9001/CE
-
Power:
-
1.5kw
Quick Details
-
type:
-
Vertical
-
Max. Drilling Dia. (mm):
-
16
-
Range of Spindle Speed(r.p.m):
-
300 - 720 r.p.m
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ChanSin
-
Model Number:
-
CX-6516 series
-
Voltage:
-
220v/380v/415v
-
Weight (KG):
-
260 KG
-
Product name:
-
Gear Tapping Machine
-
Type:
-
Vertical
-
Application:
-
Metal Tapping
-
Spindle Travel:
-
65mm
-
Max Tapping Capacity:
-
M16
-
Color:
-
Customized
-
Weight:
-
380kg
-
Certification:
-
ISO9001/CE
-
Power:
-
1.5kw

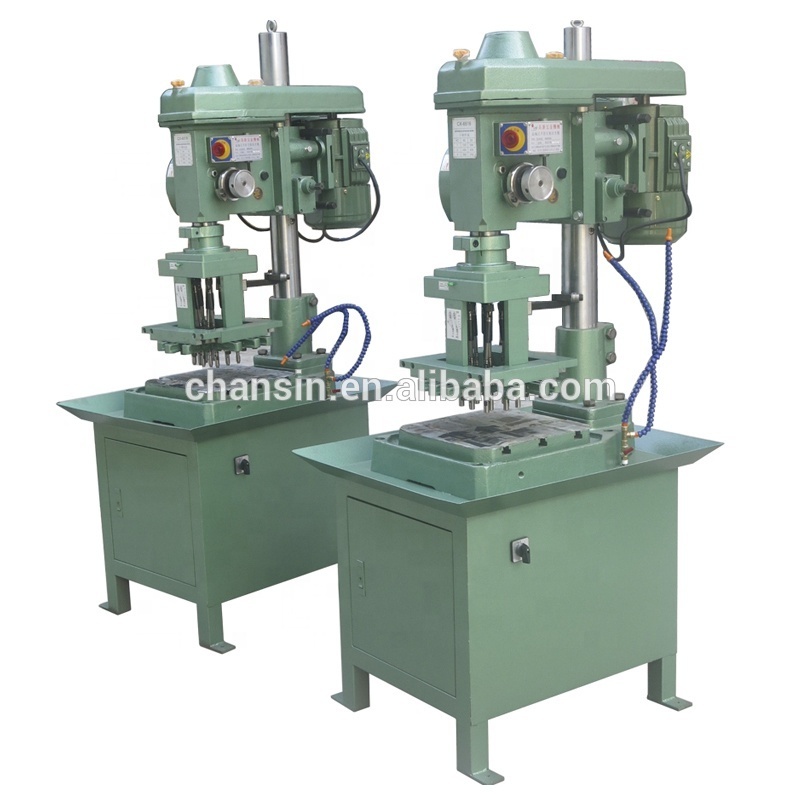

China Easy Operation Electric Gear Type Automatic Tapping Machine Gear Tapping Machine
| Spindle Travel | 65mm |
| Thread Diameter | 2mm-16mm |
| Head Moving Scope Up and Down | 300mm |
| Distance from Spindle Nose to Working Table | 350mm |
| Working Table Size | 720*650*680 |
| Base Size | 590*420mm |
| Motor Power | 1.5kw |
| Voltage | 220v/380v/415v/440v |
| Spindle Rotation | 50HZ:590/400/250rpm 60HZ:720/480/300rpm |
| Standard Gear Pitch(mm) |
0.4,0.45,0.5,0.7,0.75,0.8,1.0,1.25,1.5,
1.75,1.8,2.0,2.5 |
| Standard Gear Pitch(inch) | 10,11,12,14,16,18,19,20,24,28 |
| Multispindle Capacity | M4*13,M5*10,M6*7,M8*4,M10*3,M12*2,M16*1 |
| Weight | 260kg |
Q1: Are you a factory?
A1: Yes,we are a professional factory that was founded in 1998.
Q2: Payment term
A2: After the contract is signed, you shall pay 40% deposit, then the contract comes into effect.
Q3:Arrange production
A3: Mass production is managed upon getting deposit . Usually, CNC milling machine is finished within 20 days, automatic drilling machine and automatic tapping machine within 15 days.
Q4: Package
A4: we recommend you to choose wooden box packing to avoid damage during the transportation.
Q5:Check the acceptance
A5: When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any problem about machine, please take pictures and contact us immediately.
Q6:Warranty time
A6: 1) One year warranty. We can send you the machines' components for free in the first one year if it is not be damaged on purpose. And we offer life-long maintenance. After warranty time, customers shall pay money for component and express fee.We can provide debugging on site and training for customers, but customers need to pay expense. In this case, the customer will pay for air tickets between China and buyer's destination and free provide accommodation and meals. 2) 12 months warranty begins from the day when the machine arrives. If it can’t work normally, my company will send engineers to your factory within 24 hours after receiving your notice. We still support maintenance for machine even warranty expires. Each cnc machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.
Q7:OEM Service
A7: We accept purchase orders with customers' brand or trade mark.
