- Product Details
- {{item.text}}
Quick Details
-
Color:
-
Full Color
-
Panel Size:
-
500*500*87mm, 500*500*87mm
-
Place of Origin:
-
China
-
Model Number:
-
C-Arc P2.6
-
Pixel Pitch:
-
2.6mm, 2.6mm
-
Usage:
-
Indoor
-
Pixel LED:
-
SMD1515 3in1
-
Curved Degree:
-
-30° to +30°
-
Brightness:
-
700CD/㎡
-
Refresh rate:
-
3840 HZ
-
cabinet:
-
Die-casting Aluminum Curved Cabinet
-
Warranty:
-
2 Years
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
Chipshow
-
Color:
-
Full Color
-
Panel Size:
-
500*500*87mm, 500*500*87mm
-
Place of Origin:
-
China
-
Model Number:
-
C-Arc P2.6
-
Pixel Pitch:
-
2.6mm, 2.6mm
-
Usage:
-
Indoor
-
Pixel LED:
-
SMD1515 3in1
-
Curved Degree:
-
-30° to +30°
-
Brightness:
-
700CD/㎡
-
Refresh rate:
-
3840 HZ
-
cabinet:
-
Die-casting Aluminum Curved Cabinet
-
Warranty:
-
2 Years
FEATURES

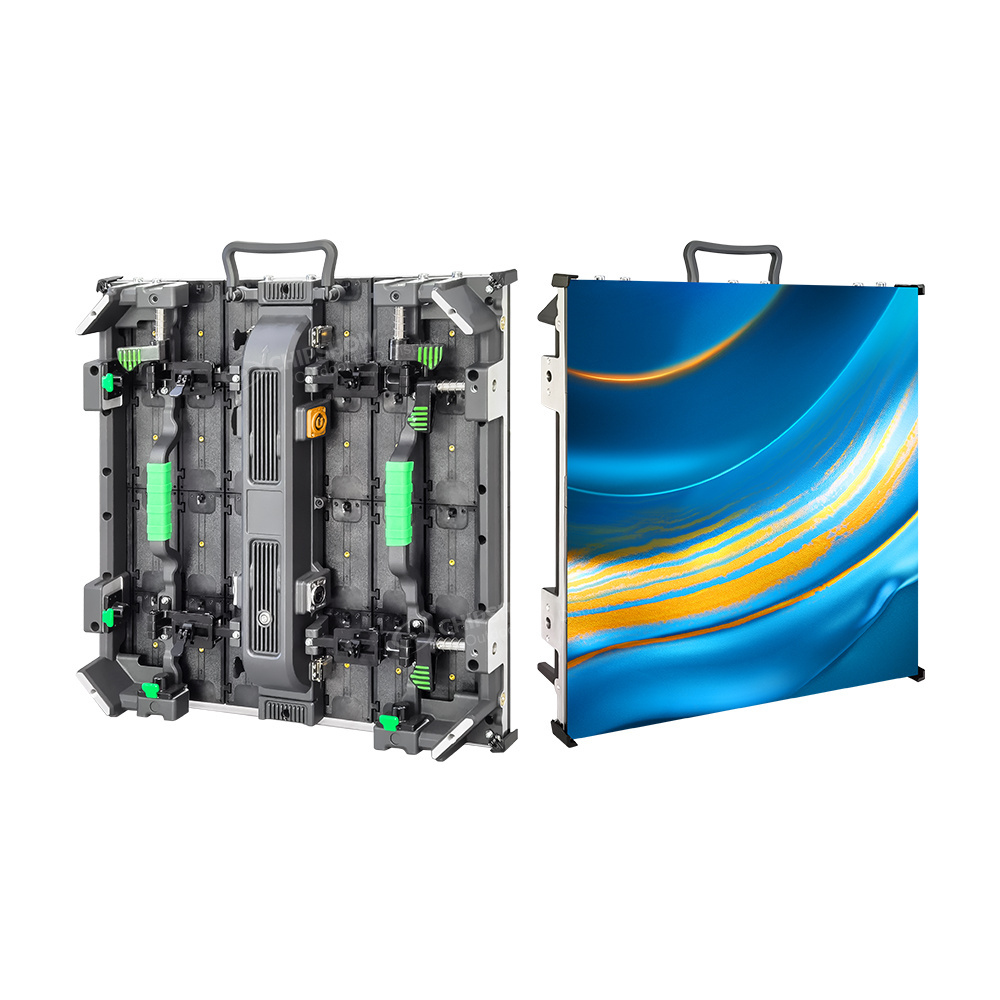

1. High precision cast aluminum cabinet, ultra-thin and lightweight, cabinet size:500*500≤6.8KG/cabinet, thickness only 87mm;
2. 500X500mm curved cabinet, can be interspersed with straight cabinet left and right to put together more curved shapes;
3. Single cabinet display surface can be -30° to +30° curved concave-convex bending;
4. The module adopts a soft PCB, which can form a smooth circular surface;
5. Silent operation: no fan, noise ≤40DB; Does not affect the audiovisual effect;
6. HD display: color white balance correction point by point to ensure the consistency and uniformity of the display screen;
7. Application scenario: 3 cabinets can be put together to form a 90° rounded corner and 12 cabinets can be put together to form a ring.
2. 500X500mm curved cabinet, can be interspersed with straight cabinet left and right to put together more curved shapes;
3. Single cabinet display surface can be -30° to +30° curved concave-convex bending;
4. The module adopts a soft PCB, which can form a smooth circular surface;
5. Silent operation: no fan, noise ≤40DB; Does not affect the audiovisual effect;
6. HD display: color white balance correction point by point to ensure the consistency and uniformity of the display screen;
7. Application scenario: 3 cabinets can be put together to form a 90° rounded corner and 12 cabinets can be put together to form a ring.
Products Description
Technical Parameter
|
Item
|
C-Arc P2.06mm
|
|
Cabinet Size
|
500*500*87mm
|
|
Cabinet Weight
|
6.7kg
|
|
Brightness
|
700CD/㎡
|
|
Viewing Angle
|
H：120°；V：120°
|
|
Grey Scale
|
147456 Dots/㎡
|
|
Refresh Rate
|
3840Hz
|
|
Scanning Mode
|
1/24 scanning
|
|
Max. Power Consumption
|
≤320W/㎡
|
|
Ave. Power Consumption
|
≤110W/㎡
|
Buyer Feedback
Why Choose Us
Package and Delivery
|
CHIPSHOW
|
22 Years
|
FAQ
Q:Who Are We?
Q: How Can We Guarantee Quality?
A: Seven quality control steps ensure your ordered screens good:
A:
Chipshow has 20,000sqm high-tech automated workshop, 200 employees,25 research engineers,20 after-sale technicians,5000sqm productivity each month.
Q: How Can We Guarantee Quality?
A: Seven quality control steps ensure your ordered screens good:
1).Suppliers are long-term cooperated large famous company.
2).Material check by professional workers and machines.
2).Material check by professional workers and machines.
3).Debug every modules.
4). 48-hour aging test for all modules before assembling.
5).Test every cabinet's function after assembling by engineers and machines.
6).72-hour aging test for whole screen before shipment.
7). All details final inspection again before package.
Q:What Can You Buy From US?
A: LED Display,LED Screen,LED Sign,LED modules,LED billboard,etc.
Q: Why Should You Buy From US Not From Other Suppliers?
A: After the 20 years' development, Shenzhen Chip Optech Co., Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices.
Q:What Services Can We Provide?
A: 2-year quality warranty and life-long repairing service.
If any components need to repair or replace, you can send it back to Shenzhen。
Q:What Can You Buy From US?
A: LED Display,LED Screen,LED Sign,LED modules,LED billboard,etc.
Q: Why Should You Buy From US Not From Other Suppliers?
A: After the 20 years' development, Shenzhen Chip Optech Co., Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices.
Q:What Services Can We Provide?
A: 2-year quality warranty and life-long repairing service.
If any components need to repair or replace, you can send it back to Shenzhen。
