Quick Details
-
Filling Accuracy:
-
±1%
-
Voltage:
-
380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SENYO
-
Dimension(L*W*H):
-
2500*1880*2300mm
-
Weight:
-
3500 KG
-
Product name:
-
Automatic Bottle Washing Filling Capping Machine
-
Function:
-
Washing Filling Capping
-
Name:
-
3 In1washing Filling Capping Machine
-
Bottle type:
-
PET Plastic Bottle Glass Bottle
-
Usage:
-
Beverage Filling Packaging
-
Keywords:
-
Drinking Water Production Plant
-
Suitable for:
-
Fluid Material (alll Liquid Products)
-
Material:
-
Stainless Steel 304/316
-
Capacity:
-
2000-20000bph
-
Feature:
-
High Precision Filling Level
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 2000BPH, 1000BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Beer, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
±1%
-
Voltage:
-
380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SENYO
-
Dimension(L*W*H):
-
2500*1880*2300mm
-
Weight:
-
3500 KG
-
Product name:
-
Automatic Bottle Washing Filling Capping Machine
-
Function:
-
Washing Filling Capping
-
Name:
-
3 In1washing Filling Capping Machine
-
Bottle type:
-
PET Plastic Bottle Glass Bottle
-
Usage:
-
Beverage Filling Packaging
-
Keywords:
-
Drinking Water Production Plant
-
Suitable for:
-
Fluid Material (alll Liquid Products)
-
Material:
-
Stainless Steel 304/316
-
Capacity:
-
2000-20000bph
-
Feature:
-
High Precision Filling Level
Products Description
The 3-in-1 Wash-filling-capping plant can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency. All machine is made of high quality 304 stainless steel, c
ompliant with international food standards, long service life.
Product Paramenters
|
Model
|
SYGF
8-8-3
|
SYGF
12-12-6
|
SYGF
18-18-6
|
SYGF
24-24-8
|
SYGF
32-32-10
|
SYGF
40-40-12
|
|
Rinsing heads
|
8
|
12
|
18
|
24
|
32
|
40
|
|
Filling heads
|
8
|
12
|
18
|
24
|
32
|
40
|
|
Capping heads
|
3
|
6
|
6
|
8
|
10
|
12
|
|
Capacity
|
2000BPH
|
5000BPH
|
9000BPH
|
12000BPH
|
15000BPH
|
18000BPH
|
|
Power
|
3KW
|
4KW
|
4.5KW
|
6KW
|
7KW
|
9KW
|
Water Treatment System
Water treatment system includes silica sand filter, active carbon filter, sodium ion exchanger, Ozone generator and UV Sterilizer, RO machine (If mineral water, use hollow fiber filter).
Air Conveyor System
Air conveyor is fixed on the floor, with fan installed on the top.
Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
All are made of stainless steel 304/316.
Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
All are made of stainless steel 304/316.

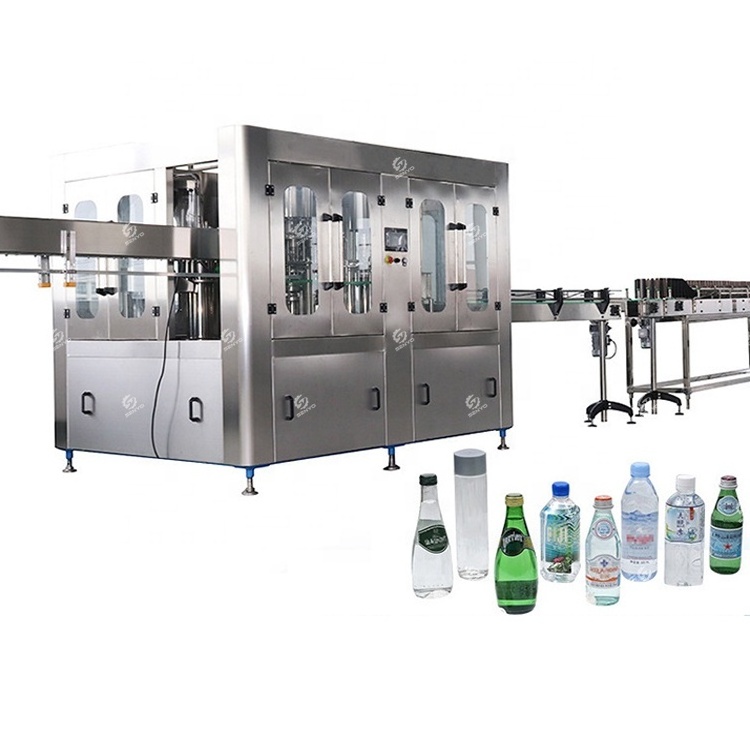

Washing Filling Capping Machine
1.
The machine has compact structure, perfect control system, convenient operation and high degree of automation;
2.
The main electrical components, electronically controlled valves, frequency converters, etc. are all imported to ensure the excellent performance of the whole machine.
Conveyor System
Connect filling machine, sleeve labeling machine and shrink wrapping machine to become a fully automatic filling and packaging line
We design the factory layout based on customer factory sizes,whole line design is based on famous brand motors and automatic
lubricant system ,and with less power consumption ,and save space .
Sleeve Labeling Machine
When a bottle on the conveyor belt passes through the bottle detection eye, the servo-controlled drive group will automatically send a label, and the brushing wheel group will brush the next label, and the label will be sleeved on the bottle
Shrink Wrapping Machine
PE film Shrink wrapping machine is suitable for wrapping of such products as mineral water, bottles beer, drinks etc without bottom-tray (or with bottom-tray). Working with PE shrink tunnel to pack the goods perfectly.
Packing & Delivery
Recommend Products
Why Choose Us
Henan Senyang Machinery Co., Ltd.
is a professional supplier of food processing equipment in China. We have focused on the R&D, manufacturing and sales of food equipment for many years, with experienced professional technicians and service teams, and are committed to providing customers with competitive project solutions.
Our products have served more than 100 countries and regions, and timely delivery, reliable quality and good after-sales service have won customers' good reputation and trust. SENYO people will insist on providing customers with the best products and services, focusing on establishing long-term partnerships to create a win-win situation.
Certifications
Customer Photos
FAQ
1. How long is the warranty period of your machine?
Machine warranty for one year (except spare parts).
2.
Can you customize the material and voltage of the machine?
Yes, of course.
We support customization.
3. What's your delivery time?
Usually 7-10 working days.
4.
What about the payment terms?
T/T, L/C, Western Union, MoneyGram, Trade Assurance, etc.
T/T, L/C, Western Union, MoneyGram, Trade Assurance, etc.
5. Is it possible to pay on delivery?
We only accept full payment before shipment.
We only accept full payment before shipment.
