Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Product name:
-
Vertical Laminar Flow Cabinet
-
External Size (W*D*H):
-
680*410*1160mm
-
Internal Size (W*D*H):
-
630*375*615mm
-
HEPA Filter:
-
99.999% efficiency at 0.3 μm
-
Airflow Velocity:
-
Average of 0.3~0.5m/s
-
Noise:
-
≤65 dB
-
UV Lamp:
-
15W*1
-
Power Consumption:
-
160W
-
Work surface Height:
-
750mm
Quick Details
-
Applicable Industries:
-
laboratory
-
Weight (KG):
-
190
-
Core Components:
-
Filter
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Product name:
-
Vertical Laminar Flow Cabinet
-
External Size (W*D*H):
-
680*410*1160mm
-
Internal Size (W*D*H):
-
630*375*615mm
-
HEPA Filter:
-
99.999% efficiency at 0.3 μm
-
Airflow Velocity:
-
Average of 0.3~0.5m/s
-
Noise:
-
≤65 dB
-
UV Lamp:
-
15W*1
-
Power Consumption:
-
160W
-
Work surface Height:
-
750mm
Product Introduction

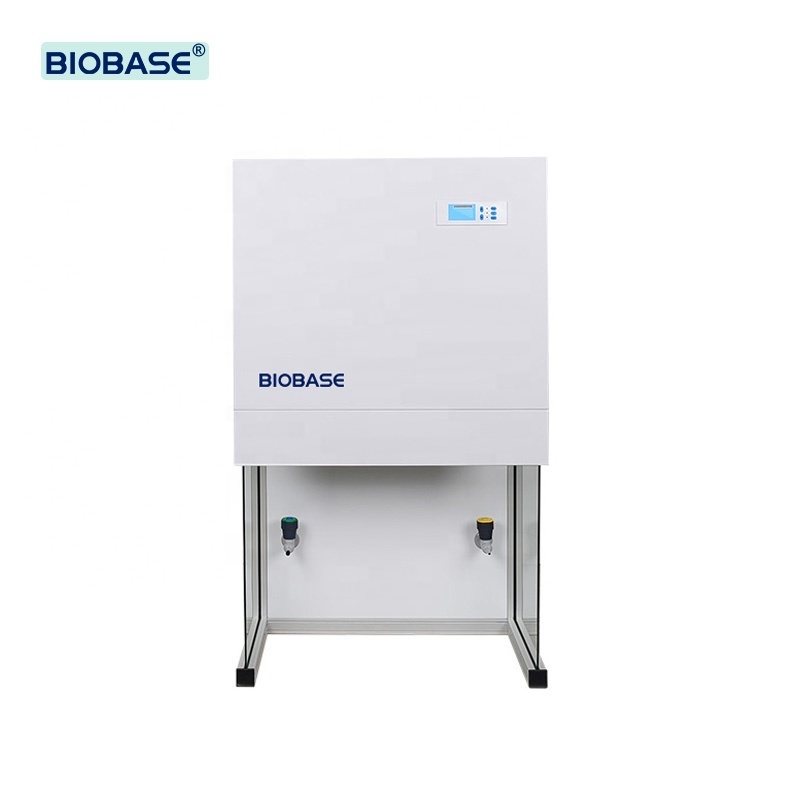

Laminar Flow Cabinet
-sample protection only
Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream.
The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.
Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments
specification
|
Model
|
BBS-V680
|
BBS-V800
|
BBS-DDC
|
BBS-SDC
|
|||
|
External Size
(W*D*H), mm |
680*410*1160
|
802*650*1550
|
1040*615*1770
|
1440*615*1770
|
|||
|
Internal Size
(W*D*H), mm |
630*375*615
|
800*530*540
|
940*540*545
|
1340*540*545
|
|||
|
Work Surface
Height |
/
|
660mm
|
750mm
|
750mm
|
|||
|
Display
|
LED Display
|
|
|
|
|||
|
Airflow Velocity
|
Average of 0.3~0.5m/s, air speed adjustable.
|
|
|
|
|||
|
Material
|
Main Body: Cold-rolled steel with anti-bacteria powder coating
|
|
|
|
|||
|
|
Work Table: 304 stainless steel(except model BBS-V680)
|
|
|
|
|||
|
Pre-filter
|
Polyester fiber, washable
|
|
|
|
|||
|
HEPA Filter
|
99.999% efficiency at 0.3um
|
|
|
|
|||
|
Noise
|
<65dB
|
|
|
|
|||
|
Front Window
|
/
|
Manual,5mm toughened glass, anti-UV
|
|
|
|||
|
Max Opening
|
/
|
490mm
|
310mm
|
310mm
|
|||
|
Illuminating Lamp
|
Fluorescent Lamp
14W*1 |
LED Lamp
8W*1 |
LED Lamp
12W*1 |
LED Lamp
16W*1 |
|||
|
UV Lamp
|
15W*1
|
20W*1
|
18W*1
|
30W*1
|
|||
|
|
Emission of 253.7 nanometers
|
|
|
|
|||
|
Consumption
|
160W
|
350W
|
350W
|
600W
|
|||
|
Standard Accessory
|
Fluorescent lamp, UV lamp*2
Water & gas tap |
LED Lamp
UV lamp*2 Base stand |
LED Lamp
UV lamp*2 Base stand |
LED Lamp
UV lamp*2 Base stand |
|||
|
Optional Accessory
|
/
|
Electric height adjustable base stand
|
|
|
|||
|
Caster
|
/
|
Universal wheel with leveling feet
|
|
|
|||
|
Power Supply
|
AC 220V±10%, 50/60 Hz; 110V±10%, 60HZ
|
|
|
|
|||
|
Gross Weight
|
50kg
|
116kg
|
131kg
|
174kg
|
|||
|
Package Size (W*D*H)mm
|
840*560*1380
|
960*800*1800
|
1200*850*1360
|
1600*850*1360
|
|||
