Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-

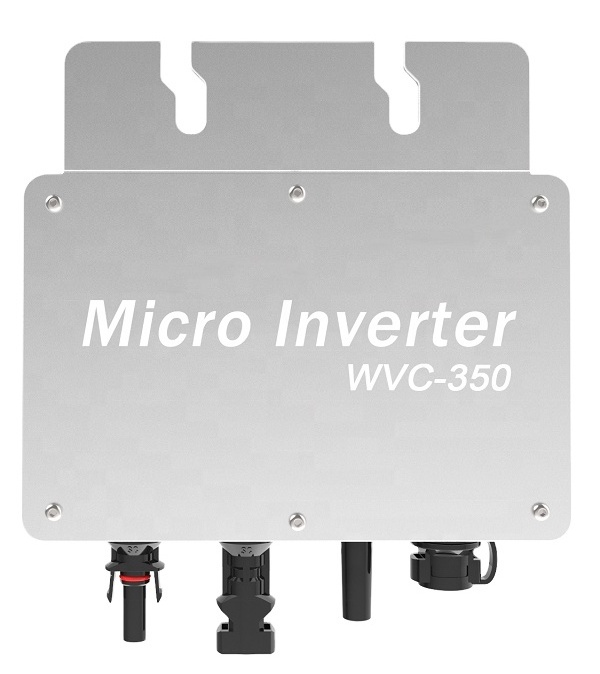

CR-WVC-350
-
Input Voltage:
-
22-60v
-
Output Voltage:
-
120/230V Auto Switch
-
Output Current:
-
16A
-
Output Frequency:
-
47.5/62Hz
-
Size:
-
165*176*38mm
-
Certificate:
-
CE
-
Warranty:
-
5 years
-
Weight:
-
0.82KG
-
Application:
-
Home, Commercial, Industrial
-
Max output efficiency:
-
95%
-
Waterproof grade:
-
IP65
-
Temperature range:
-
-40°C to +65°C
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
99.5%
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
CR-WVC-350
-
Input Voltage:
-
22-60v
-
Output Voltage:
-
120/230V Auto Switch
-
Output Current:
-
16A
-
Output Frequency:
-
47.5/62Hz
-
Size:
-
165*176*38mm
-
Certificate:
-
CE
-
Warranty:
-
5 years
-
Weight:
-
0.82KG
-
Application:
-
Home, Commercial, Industrial
-
Max output efficiency:
-
95%
-
Waterproof grade:
-
IP65
-
Temperature range:
-
-40°C to +65°C
The inverter is equipped with 433MHz communication function as standard, and can communicate with our data collector (optional), and the data collector only needs to be connected to a wireless router to obtain various real-time data in the power station and upload it To the cloud server. Users only need to install our power station management application on their mobile phones to easily access various data in the power station and manage the power station. The inverter is equipped with 433MHz communication function as standard, and can communicate with our data collector (optional), and the data collector only needs to be connected to a wireless router to obtain various real-time data in the power station and upload it To the cloud server. Users only need to install our power station management application on their mobile phones to easily access various data in the power station and manage the power station.
Grid-connected system
|
Model
|
WVC-350 | |
|
Maximum input power
|
1×400Watt | |
|
Output voltage mode
|
120/230V Auto Switch | |
|
PV Open circuit voltage
|
30-60Voc | |
|
Operating voltage range
|
22-60V | |
|
Starting voltage range
|
22-60V | |
|
short-circuit current
|
18A | |
|
Maximum working current
|
16A | |
|
Output parameters
|
@120V
|
@230V
|
|
Maximum Output Power
|
350watt | 350watt |
|
Rated Output Power
|
320watt | 320watt |
|
Output current
|
2.91A | 1.52A |
|
AC voltage range
|
80-160VAC
|
180-280VAC
|
|
Number of branch connections.
|
15 units
|
25 units |
|
AC frequency range
|
47.5-52/57.5-62Hz
|
|
|
Power factor
|
>95%
|
|
|
Output efficiency
|
||
|
Static MPPT efficiency
|
99.5%
|
|
|
Max output efficiency
|
95%
|
|
|
Loss of power at night
|
<0.5w
|
|
|
Total current harmonics
|
<5%
|
|
|
Appearance and technical features
|
||
|
Size(L×W×H)mm
|
165×176×38mm | |
|
Net amount
|
0.82Kg | |
|
Waterproof grade
|
IP65 | |
|
Temperature range
|
-40°C to +65°C
|
|
|
Heat dissipation mode
|
Self-cooling
|
|
|
Communication mode
|
433MHz | |
|
Power transmission mode
|
Reverse transmission,Load priority
|
|
|
Monitoring system
|
Mobile phone APP,Browser | |
|
Electromagnetic compatibility
|
EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1
|
|
|
Power grid
|
EN61000-3-2 EN62109.UL STD.1741
|
|
|
Power grid detection
|
DIN VDE 0126 IEEE STD.1547.1547.1 and 1547.A
|
|
|
Certificate
|
Industrial Design,Patent For Invention,CE
|
|
Application field
Packing:
1. Attach the color sticker and label of the controller.
2. Put the controller and instruction manual into the color box.
3. Put into export carton.
4. Enter the warehouse and wait for shipment.
Kraft box packaging, Chinese and English manual, screwdriver, transparent bag, PE bags, OPP bags, Foam Cotton, Custom bags+carton case+carton box or as your requirement.
