Quick Details
-
Range of Spindle Speed(r.p.m):
-
50 - 2500 r.p.m
-
Width of bed (mm):
-
100
-
Max. Turned Length (mm):
-
1000 mm
-
Spindle Motor Power(kW):
-
0.9
-
Year:
-
2023
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Tongchen
-
Model Number:
-
210 Double Chuck Lathe
-
Voltage:
-
220-240V, 50-60HZ;100-110V,50-60HZ
-
Dimension(L*W*H):
-
1500*390*370MM
-
Weight (KG):
-
120 KG
-
Product Name:
-
210 Double Chuck Lathe Machine
-
Function:
-
Metal Processing & Pool Cue Repairing
-
Color:
-
Blue
-
Motor power:
-
900W
-
Chuck:
-
Double Chuck
-
style:
-
HORIZONTAL
-
Advantage:
-
Easy to Operate
-
Max. Swing Diameter (mm):
-
210
Quick Details
-
Max. Length of Workpiece (mm):
-
1000
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
38
-
Range of Spindle Speed(r.p.m):
-
50 - 2500 r.p.m
-
Width of bed (mm):
-
100
-
Max. Turned Length (mm):
-
1000 mm
-
Spindle Motor Power(kW):
-
0.9
-
Year:
-
2023
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Tongchen
-
Model Number:
-
210 Double Chuck Lathe
-
Voltage:
-
220-240V, 50-60HZ;100-110V,50-60HZ
-
Dimension(L*W*H):
-
1500*390*370MM
-
Weight (KG):
-
120 KG
-
Product Name:
-
210 Double Chuck Lathe Machine
-
Function:
-
Metal Processing & Pool Cue Repairing
-
Color:
-
Blue
-
Motor power:
-
900W
-
Chuck:
-
Double Chuck
-
style:
-
HORIZONTAL
-
Advantage:
-
Easy to Operate
-
Max. Swing Diameter (mm):
-
210

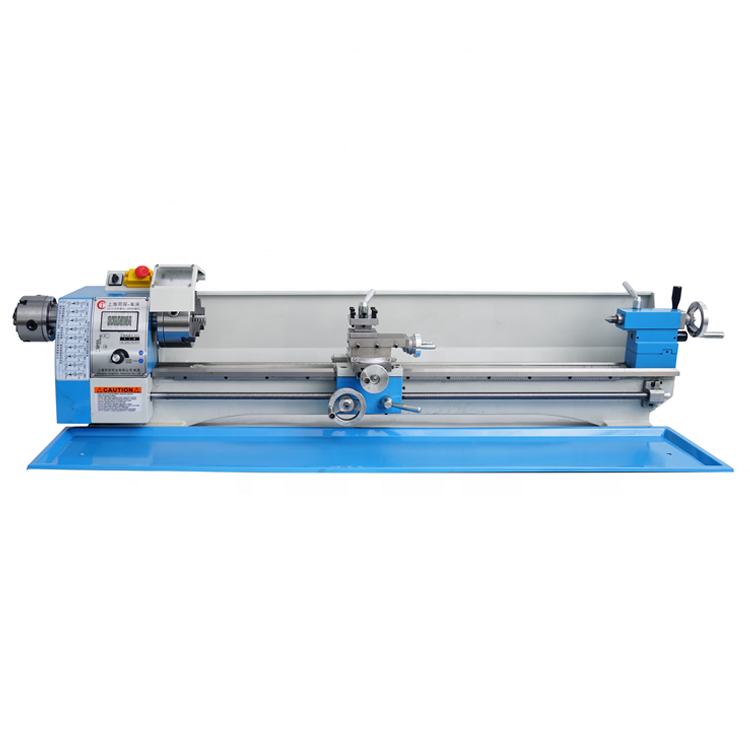

Products Description
|
Name
|
|
210 Extended double front
|
|
||
|
voltage
|
|
220V 50Hz
|
|
||
|
power
|
|
900W
|
|
||
|
Spindle Through Hole
|
|
38mm (125mm 3 jaw chuck)
|
32mm (100mm 3 jaw rear chuck)
|
||
|
Spindle speed
|
|
50-2500 rev/min
|
|
||
|
Shift level
|
|
Infinitely variable speed
|
|
||
|
Machine accuracy range
|
|
<0.1mm
|
|
||
|
Tool holder swing diameter
|
|
100mm
|
|
||
|
Bed turning diameter
|
|
210mm
|
|
||
|
Two tip distance
|
|
1000mm
|
|
||
|
Spindle bore taper
|
|
Mohs 5
|
|
||
|
Tailstock shaft taper
|
|
Mohs 2
|
|
||
|
Chuck Size
|
|
125mm 3 Jaw chuck & 100mm 3 Jaw Chuck
|
|
||
|
Tool holder station
|
|
4 stations
|
|
||
|
Tool holder maximum stroke
|
|
55mm
|
|
||
|
Middle tray travel
|
|
75mm
|
|
||
|
Large tray travel
|
|
276mm
|
|
||
|
Tailstock sleeve stroke
|
|
60mm
|
|
||
|
Automatic feed range
|
|
0.1-0.2mm
|
|
||
|
Lathe length
|
|
1500mm
|
|
||
|
Lathe width
|
|
390mm
|
|
||
|
Lathe height
|
|
370mm
|
|
||
|
Lathe gross weight
|
|
120kg
|
|
||
