Quick Details
-
Material:
-
Galvanized Steel
-
Color::
-
Silver White
-
Size:
-
Customization
-
Application:
-
Overhead Line Accessories
-
Surface:
-
Hot Dip Galvanized
-
Tolerance:
-
+/-2%
-
Certificate:
-
ISO9001:2008
-
Standard:
-
ASTM 153
-
Sample:
-
Free
-
OEM&ODM:
-
Yes
Quick Details
-
Brand Name:
-
EP
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
Pole Mounting Clamp
-
Material:
-
Galvanized Steel
-
Color::
-
Silver White
-
Size:
-
Customization
-
Application:
-
Overhead Line Accessories
-
Surface:
-
Hot Dip Galvanized
-
Tolerance:
-
+/-2%
-
Certificate:
-
ISO9001:2008
-
Standard:
-
ASTM 153
-
Sample:
-
Free
-
OEM&ODM:
-
Yes
Products Description

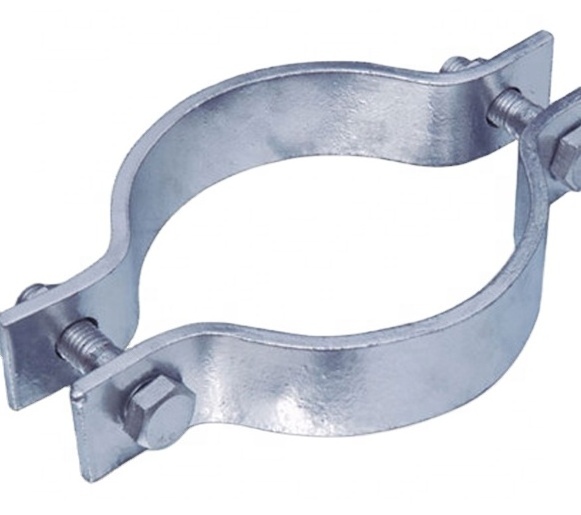

Pole clamps are used to line up the poles with steel frames,and are usually consist of two,three,or four pieces of bands and certain number bolts and nuts.
Pole clamp certain four bolts and two pieces of bands.
|
Type
|
Stock
No. |
Clamp Range
|
|
|
Width
mm |
Gauge
mm |
||
|
|
|
Dimension
Inch(mm) |
Range
(mm) |
Inch
|
|
|
||
|
RL
|
C0150H-08
|
8(203)
|
178-203
|
7-8
|
64/50
|
8/6
|
||
|
|
C0150H-09
|
9(229)
|
203-229
|
8-9
|
64/50
|
8/6
|
||
|
|
C0150H-10
|
10(254)
|
229-254
|
9-10
|
64/50
|
8/6
|
||
|
|
C0150H-11
|
11(279)
|
254-279
|
10-11
|
64/50
|
8/6
|
||
Note:
The heavy duty is 64*8mm,and the light duty is 50*6mm
Pole clamp certain three bolts and three pieces of bands.
|
Type
|
Stock
No. |
Clamp Range
|
|
|
Width
mm |
Gauge
mm |
||
|
|
|
Dimension
Inch(mm) |
Range
(mm) |
Inch
|
|
|
||
|
GCA
|
C0150H-08
|
8(203)
|
178-203
|
7-8
|
64/50
|
8/6
|
||
|
|
C0150H-09
|
9(229)
|
203-229
|
8-9
|
64/50
|
8/6
|
||
|
|
C0150H-10
|
10(254)
|
229-254
|
9-10
|
64/50
|
8/6
|
||
Note:
The heavy duty is 64*8mm,and the light duty is 50*6mm.
Pole clamp certain four bolts and four pieces of bands.
|
Type
|
Stock
No. |
Clamp Range
|
|
|
Width
mm |
Gauge
mm |
||
|
|
|
Dimension
Inch(mm) |
Range
(mm) |
Inch
|
|
|
||
|
DEG
|
C0150H-08
|
8(203)
|
178-203
|
7-8
|
64/50
|
8/6
|
||
|
|
C0150H-09
|
9(229)
|
203-229
|
8-9
|
64/50
|
8/6
|
||
|
|
C0150H-10
|
10(254)
|
229-254
|
9-10
|
64/50
|
8/6
|
||
Note:
The heavy duty is 64*8mm,and the light duty is 50*6mm.
Pole clamp certain three bolts and two pieces of bands.
|
Type
|
Stock No.
|
Clamp Range
|
|
|
Width
mm |
Gauge
mm |
||
|
|
|
Dimension Inch(mm)
|
Rangc(mm)
|
Inch
|
|
|
||
|
CA
|
C0150H-08
|
8(203)
|
178-203
|
7-8
|
64/50
|
8/6
|
||
|
|
C0150H-09
|
9(229)
|
203-229
|
8-9
|
64/50
|
8/6
|
||
|
|
C0150H-10
|
10(254)
|
229-254
|
9-10
|
64/50
|
8/6
|
||
