- Product Details
- {{item.text}}
Quick Details
-
stress cone Material:
-
EPDM
-
Use:
-
for cable end
-
Bushing material:
-
Porcelain
-
Application voltage:
-
48/66Kv, 64/110kV,76/132kv,127/220kv,290/500kv
-
Application cross section:
-
185-3000sqmm
-
Certificate:
-
type test report,KEMA
-
Standard:
-
IEC
-
Service:
-
installation available
-
Packing:
-
wooden case
-
Reference list:
-
20years available
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Changlan
-
Model Number:
-
YJZWC4-e99a
-
stress cone Material:
-
EPDM
-
Use:
-
for cable end
-
Bushing material:
-
Porcelain
-
Application voltage:
-
48/66Kv, 64/110kV,76/132kv,127/220kv,290/500kv
-
Application cross section:
-
185-3000sqmm
-
Certificate:
-
type test report,KEMA
-
Standard:
-
IEC
-
Service:
-
installation available
-
Packing:
-
wooden case
-
Reference list:
-
20years available

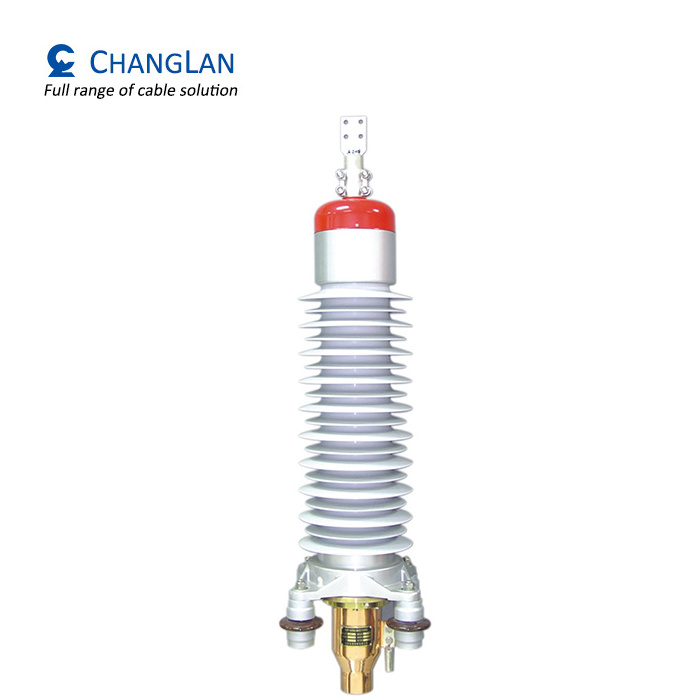

HV power project xlpe cable outdoor type composite termination
HV power project xlpe cable outdoor type composite termination
Product details
| stress cone Material | EPDM |
| Use | for cable end |
| Product Keywords | HV power project xlpe cable outdoor type composite termination |
Tech nical da ta
3.1 rated voltage (U 0 /U):4/110kV,76/132kv;
3.2 max. voltage (U m ):126kv,145kv;
3.3 power frequency :50Hz;
3.4 suitable cable cross section :25 ~ 400mm 2 ; 3.5 long term current loading, and short-circuit shall be suitable with cable
3.6 max. allowed temperature under normal operation condition :90℃;
3.7 max. allowed temperature at short-circuit condition :250℃;
