Quick Details
-
Model Number:
-
WSS100ZBF
-
Gauge dial:
-
4inch (100mm)
-
Temperature range:
-
0-60℃/℉
-
Stem length:
-
5cm
-
Case and stem:
-
304 stainless steel
-
Connection size:
-
1/2"BSP
-
Connection thread:
-
BSP
-
Connection mouthing:
-
Back
-
Dial and pointer:
-
aluminum
-
Window:
-
glass
-
Accuracy:
-
+/- 2.5% of full scale
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Naite or customized
-
Model Number:
-
WSS100ZBF
-
Gauge dial:
-
4inch (100mm)
-
Temperature range:
-
0-60℃/℉
-
Stem length:
-
5cm
-
Case and stem:
-
304 stainless steel
-
Connection size:
-
1/2"BSP
-
Connection thread:
-
BSP
-
Connection mouthing:
-
Back
-
Dial and pointer:
-
aluminum
-
Window:
-
glass
-
Accuracy:
-
+/- 2.5% of full scale

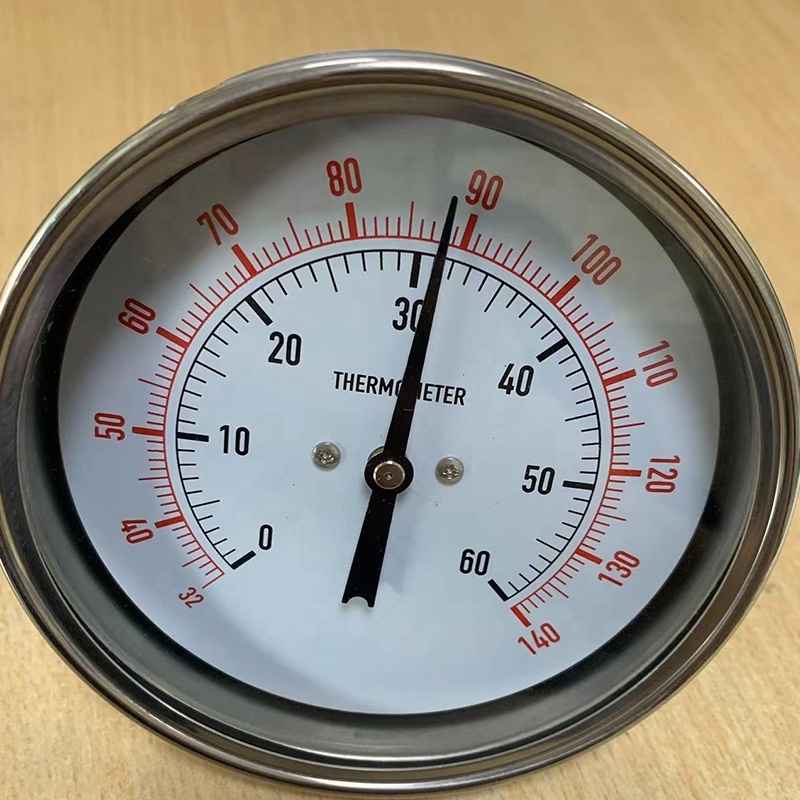

4" Full Stainless Steel 60 degree Bimetal Thermometer
Applications:
Suitable for fluid medium which does not corrode 304 stainless steel
Special features:
. Industrial design
. Bottom, back or adjustable angle connection with external reset
. Stainless steel connection and external wetted parts
Temperature Gauge Basic Specification
| Dials Size | 2, 3, 4, 6 inches |
| Temperature range | -40ºC/ºF to 300ºC/ºF |
| Stem length | 65mm, 100mm, 150mm, 200mm, 300mm |
| Stem diameter | Ø6, Ø8, Ø10 |
| Case and Stem | SS304 / chrome steel |
| Connection sizes | 1/4, 1/2, 3/8 |
| Connection threads | BSP,NPT or PT |
| Connection mounting | Angel, back or bottom |
| Dial and pointer | aluminum |
| Window | Glass |
| Accuracy | 2.5% of full scale |
| Resert | Yes or No |
