Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Drilling Depth:
-
3m
-
Mobility:
-
Move by crawler
Quick Details
-
Place of Origin:
-
Shandong
-
Dimension(L*W*H):
-
5900*2250*2450mm
-
Weight:
-
8500 KG
-
Marketing Type:
-
Hot Product 2023
-
Drilling Depth:
-
3m
-
Mobility:
-
Move by crawler
Technical Features
The hydraulic pilot control ensures comfortable operating performance and flexible adjusting ability. Hydraulic components of first-class brand ensure the reliability of the whole hydraulic system .
Patented technology of power head floating and vise floating can greatly protect the drill pipe thread to increase the service life of the drill pipe by 30%.
The whole machine has passed the CE safety certification, which makes construction safe and reliable.
Main Technical Parameters
| Item | Parameter | |
| Engine | Model | 6BTAA5.9-C150,QSB4.5-C160 QSB5.9-C150 |
| Rated Power |
112 kW / 2200 r/min 119 kW / 2200 r/min 113 kW / 2200 r/min |
|
| Thrust-Pull | Type | Pinion and rack drive |
| Max thrust-pull force(kN) | 225/225 | |
| Max thrust-pull speed(m/min) | 26 | |
| Rotation | Type | two motor |
| Torque(N·m) | 6350 | |
| Max spindle speed(r/min) | 160 | |
| Pipe | Diameter × Length(mm×mm) | Φ60×3000 |
| Mud pump | Max Flow rate(L/min) | 250 |
| Max pressure(MPa) | 8 | |
| Weight | / | 8500kg |
Technology Introduction
1.Hydraulic System
Using a hydraulic pilot control, hydraulic components are domestic first-class brand. Most important parts of hydraulic system are made of leading domestic and foreign products, good performance, good reliability. Five pumps coordinated action to complete the working, a reasonable allocation of engine power.
Hydraulic system pressure 21MPa
Fuel tank volume 230L
2.Chassis
XZ200 use classic H-beam structure, high quality rubber track, site adaptability, high reliability, breaststroke leg structure, large cylinder support, good stability, Eaton walking gear, stable performance, walking speed can reach 2.2km / h.
| Track width | 2090 mm |
| Rubber Track Width | 320 mm |
| Tread | 1910 mm |
| Supporting wheels Quantity | 2×6 |
| Driving force | 68000N |
| Gradeability | 30% |
| Walking speed | 2.2km/h |
| Grounding pressure | 63kPa |
| Overall working weight | 8.5t |
3.Carriage
The drilling rig completed by rack and pinion sliding action, carriage floating device can effectively protect the drill thread, variable-speed motor to achieve sliding.
| Max. Thrusting /pulling speed | 0~26m/min |
| Max spindle torque | 6350N·m |
| Max. Walking distance of carriage | 4000mm |
| Max. Rotation speed | 160r/min |
4.Mud Systerm
250L mud pump system according to the construction, to provide powerful construction, large flow, ensure the smooth construction.
| Max. Mud pump flow | 250L/min |
| Max. Mud pump pressure | 80bar |
5.Console and Cab(Optional)
Collaboration with professional bodies, Cab, console ergonomics analysis and research, fully considered during the operation operator comfort and instrument layout is reasonable, can be increased with the cab, air conditioner, reduce labor intensity, improve the efficiency of the operator.
| Size | 1200×1050×1600mm |
| Air conditioner refrigeration | 4600W |
| Air conditioner heating | 5000W(when the engine cooling fluid is more than 85℃) |
6.Pipe Loader(Optional)
Machine can option configuration with the automatic semi-automatic pipe loader, used rotating structure to achieve handling drill semi-automatization, also can option automatic full-automatic pipe loader, to achieve handling drill automation. Optional Full-automatic pipeloader, Drilling box can accommodate 40 piece of φ60×3000 drill pipes, this system can add pipe capacity for long distance construction Efficient automation construction, reduce construction costs and labor intensity. Note:This Full-automatic pipeloader use φ60×3000 drill pipes.
7.Anchor(Optional)
Main machine with normal anchor, also can option automatic anchor help push and drill, highly automated and great power, reduce labor intensity.
8.Drill and Drilling Tools

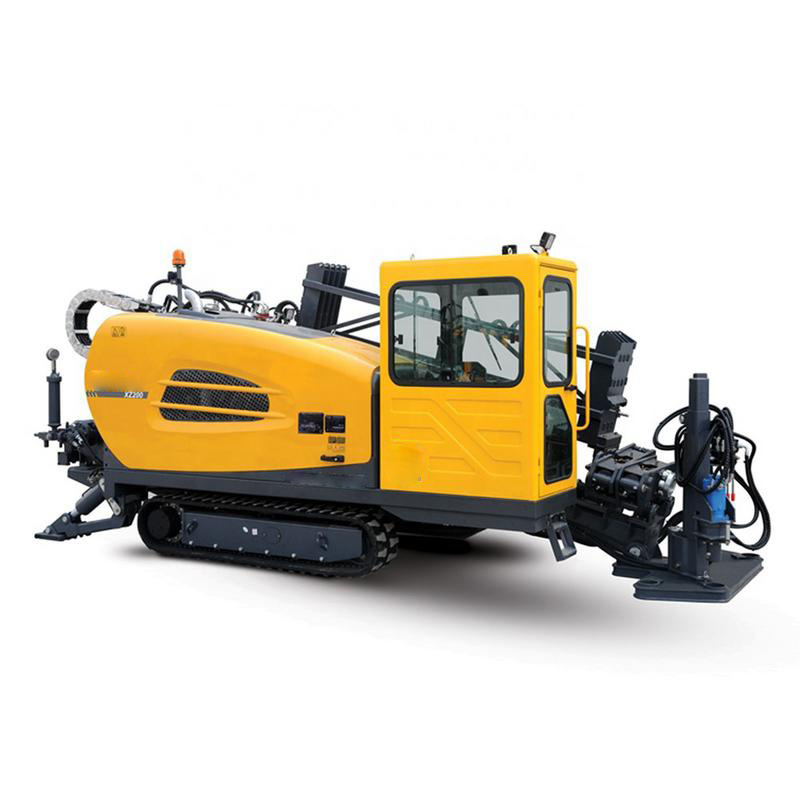

Other accessories of XZ200 horizontal directional drill rig are configured as follows:
| Name | Type | Form | Specification | Remarks |
| Drill | Monolithic | 60mm×3m | ||
| Welded type | ||||
| Drilling Tools | Reamer | Squeezed style | 200mm | |
| 300mm | ||||
| 400mm | ||||
| 500mm | ||||
| 600mm | ||||
| 700mm | ||||
| Runner type | 200mm | |||
| 300mm | ||||
| 400mm | ||||
| 500mm | ||||
| 600mm | ||||
| 700mm | ||||
| Accessories | Drill guide | 60 | ||
| Starting lever | 60 | |||
| Drilling Tools | Accessories | Guide plate | 60 | |
| Torques | 60 | |||
| L-nut | 60 | |||
| Male slider | 60 | |||
| Female slider | 60 | |||
| Splitter | 20t | |||
| Connect | 60 | |||
| Mud system | Mud Mixing | 2cbm | Shanghai | |
| 3cbm | ||||
| Instrument | Guide Instrument | F2 | America | |
| F5 | ||||
| SE | ||||
| GL 300 | ||||
| GL 350 | ||||
| GL 600 | ||||
| Detector | 8000 | Britain | ||
