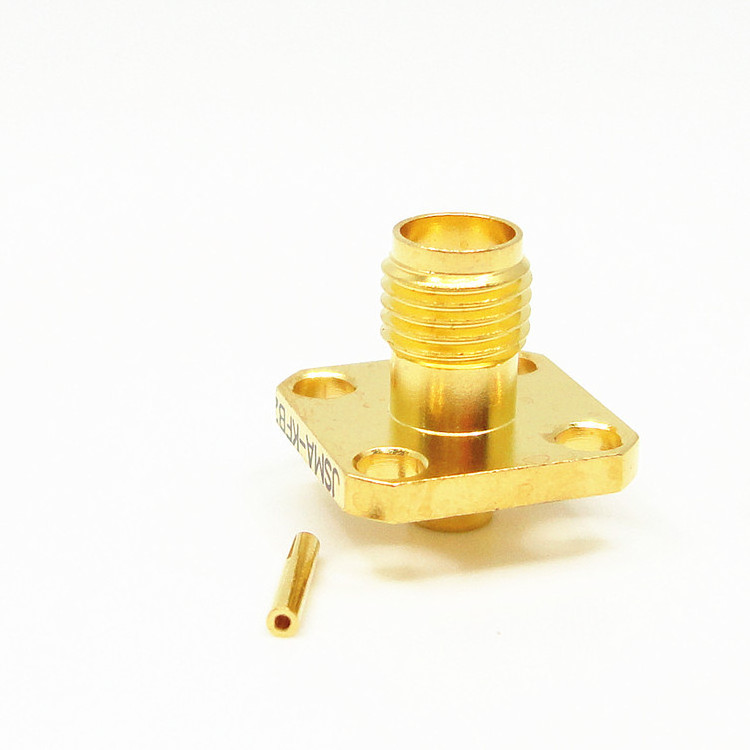

High Power Female 4-Hole Flange Panel Mount RF Coaxial Connector sma for .086/RG405 cable

High Power Female 4-Hole Flange Panel Mount RF Coaxial Connector sma for .086/RG405 cable

FOB Reference Price: Get Latest Price

≥100 Pieces

US $8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shaanxi, China

Brand Name:: ELT (Elite)

Model Number:: SMA-KFB2A

Item:: SMA RF Coaxial Connector

Impedance:: 50 Ohm

Frequency range:: DC ~ 18 GHz

Durability:: 500 cycles

Size:: Miniature

Material:: Brass

Mounting:: 4-hole flange

Certificate:: ROHS, ISO-9001-2015

Quick Details

Type:: Sma

Application:: RF

Gender:: Female

Place of Origin:: Shaanxi, China

Brand Name:: ELT (Elite)

Model Number:: SMA-KFB2A

Item:: SMA RF Coaxial Connector

Impedance:: 50 Ohm

Frequency range:: DC ~ 18 GHz

Durability:: 500 cycles

Size:: Miniature

Material:: Brass

Mounting:: 4-hole flange

Certificate:: ROHS, ISO-9001-2015

Product Description

High Performance SMA Female RF Connector :

1, SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead ,or 4 hole panel configurations
2, SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required
3, SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc
4, SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz)

Electrical Characteristics :

Impedance	50Ω
Frequency Range	DC~18GHz
Rated Voltage	335VRMS*
Dielectrics Voltage-resistance	1000VRMS*
Insulation Resistance	≥5000MΩ
Center Resistance	Center Conductor	≤3.0mΩ
	Outer Conductor	≤2.0mΩ
VSWR	≤1.3

Material & Mechanical Characteristics:

Center Conductor	Male	Brass Gold plated
	Female	Sn-P Bronze Gold plated
Elastic Contact		Beryllium bronze Nickel plated
Shell and other Metal Parts		Brass Nickel plated
		Stainless Passivation
Crimping Sleeve		Brass Nickel plated
Tightening torque of connection		0.79-1.13N .m
Durability		500 cycles
Sealing Ring		Silicone Rubber
Insulators		PTFE
