Quick Details
-
Brand Name:
-
RZFIBER
-
Use:
-
FTTH
-
optical receiving power:
-
-10~+5dBm
-
AGC range:
-
-7~+1dBm
-
optical receiving wavelength:
-
1100-1600
-
Fiber Type:
-
single mode
-
optical connector type:
-
SC/UPC
-
output return loss:
-
≥45dB
-
optical return loss:
-
≥16dB
-
Certification:
-
ISO9001:2008
-
Dimension:
-
105*80*28
Quick Details
-
Type:
-
Optical Receiver
-
Model Number:
-
OPT-1000M-2, FTTH mini optical node
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RZFIBER
-
Use:
-
FTTH
-
optical receiving power:
-
-10~+5dBm
-
AGC range:
-
-7~+1dBm
-
optical receiving wavelength:
-
1100-1600
-
Fiber Type:
-
single mode
-
optical connector type:
-
SC/UPC
-
output return loss:
-
≥45dB
-
optical return loss:
-
≥16dB
-
Certification:
-
ISO9001:2008
-
Dimension:
-
105*80*28
Products Description
1. Introduction:
OPT-EW1000 designed for FTTH / FTTB or HFC applications. The general type have a normal output level 85dBuV TV channel. Enhanced
type output level reached to 95dBuV TV channel. OPT-EW1000 integration of these two types 1550nm of analog video signals and
digital signal transmission, they are ideally suited for PON system.
Automatic gain control (AGC) circuit in order to maintain the very wide range of input optical power 7dBm to ~ +1 dBm output stage
2. Features:
1. FTTH CATV Indoor Optical Receiver module
2. 85dBuV output
3. 45MHz~1GHz
4. CE and RoHS
5. Low power consumption ≤1.5W
1. FTTH CATV Indoor Optical Receiver module
2. 85dBuV output
3. 45MHz~1GHz
4. CE and RoHS
5. Low power consumption ≤1.5W
3. Application:
1. Gpon network
2. FTTH
1. Gpon network
2. FTTH
4. Schematic diagram:
Specification
|
|
|
OPT-100M-2
|
OPT-AS1000WDM
|
UNIT
|
|
Optical
Parameters
|
Optical Receiving Power
|
-15~ +2
|
-16~ +2
|
dBm
|
|
|
AGC Range
|
-8~ +2
|
-16~ -8
|
dBm
|
|
|
Optical Return Loss
|
>45
|
>=45
|
dB
|
|
|
Optical Receiving Wavelength
|
1100~ 1600
|
1100~ 1600
|
nm
|
|
|
Optical Connector Type
|
SC
|
SC
|
|
|
|
Fiber Type
|
Single Mode
|
Single Mode
|
|
|
Link
Performance
|
C/N
|
>=51@Pin= -1dBm
Pout= 82dBuV, 84CH
PAL-D, OMI=3.8%
|
>=51
|
dB
|
|
|
C/CTB
|
>=65
|
>=68
|
dB
|
|
|
C/CSO
|
>=62
|
>=65
|
dB
|
|
RF Parameters
|
Frequency Range
|
45~ 1003
|
47~ 1000MHz
|
MHz
|
|
|
Flatness in Band
|
±0.75
|
±0.75
|
dB
|
|
|
Output Level
|
>=82(AGC: @-8~ +2dBm)
(MGC: @-8dBm)
|
>=88
|
dBμV
|
|
|
Output ATT range
|
0~ 20(Valid in MGC state)
|
non
|
dB
|
|
|
Output Return Loss
|
>=16
|
>=16
|
dB
|
|
|
Output Impedance
|
75
|
75
|
Ω
|
|
|
Consumption
|
<1.2
|
<1.5
|
W
|
|
General
|
Operating Temperature
|
-20~ +55
|
-25~ +55
|
℃
|
|
|
Dimension
|
104*85*25
|
105*81*24
|
mm
|
|
|
Power Supply
|
DC 5V
|
DC 5V
|
V
|

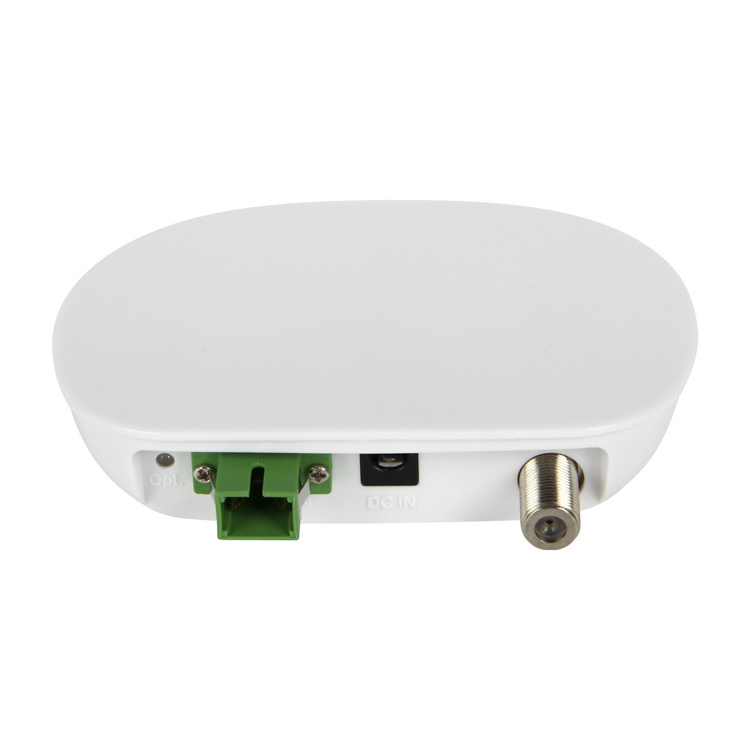

Details Images
