Quick Details
-
Rated Input Voltage:
-
220 V
-
Rated Output Voltage (MIG):
-
24 V
-
Welding Current/Voltage Range:
-
2023
-
Wire Feeding Speed:
-
14 m/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Get Star Weld
-
Dimensions:
-
330*155*250
-
Usage:
-
Welding, Welding
-
Weight (KG):
-
13.5 KG
-
Year:
-
2023
-
Model Number:
-
MIG-200D3
-
Voltage:
-
220V
-
Frequency:
-
50-60HZ
-
Weight:
-
13.5
-
Certification:
-
CE
-
Power:
-
6.0 KVA
-
Rated output current(A)/voltage(V):
-
180A/24V
-
Welding current range(A):
-
30-180
-
Open circuit voltage DC(V):
-
56
Quick Details
-
Wire Melting Type:
-
Globular Transfer
-
Max. Load Power Capacity:
-
6.1KVA
-
Rated Duty Cycle @40°C (MIG):
-
35%
-
Rated Input Voltage:
-
220 V
-
Rated Output Voltage (MIG):
-
24 V
-
Welding Current/Voltage Range:
-
2023
-
Wire Feeding Speed:
-
14 m/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Get Star Weld
-
Dimensions:
-
330*155*250
-
Usage:
-
Welding, Welding
-
Weight (KG):
-
13.5 KG
-
Year:
-
2023
-
Model Number:
-
MIG-200D3
-
Voltage:
-
220V
-
Frequency:
-
50-60HZ
-
Weight:
-
13.5
-
Certification:
-
CE
-
Power:
-
6.0 KVA
-
Rated output current(A)/voltage(V):
-
180A/24V
-
Welding current range(A):
-
30-180
-
Open circuit voltage DC(V):
-
56

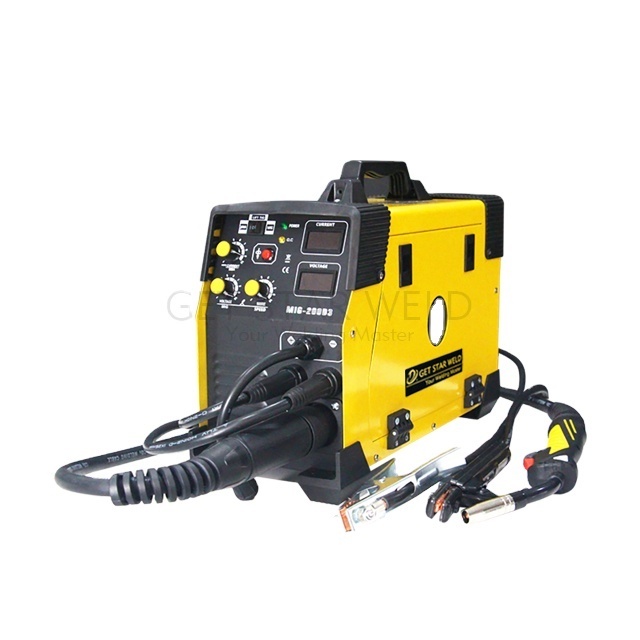

MIG 200 welding machine
Product Description
Technical Data
| ITEM | MIG/MMA-140D3/S2 | MIG/MMA-160D3/S2 | MIG/MMA-180D3/S2 | MIG/MMA-200D3/S2 | MIG/MMA-250D3/S2 |
| Input Voltage |
1~220V ±10% 1~230V ±10% |
1~220V ±10% 1~230V ±10% |
1~220V ±10% 1~230V ±10% |
1~220V ±10% 1~230V ±10% |
1~220V ±10% 1~230V ±10% |
| Frequency | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Capacity | 3.9 KVA | 4.5 KVA | 5 KVA | 5.6 KVA | 7 KVA |
| Current | 50~140A | 50~160A | 50~180A | 50~200A | 50~250A |
| Wire Speed | 2.5-10m/min | 2.5-10m/min | 2.5-10m/min | 2.5-10m/min | 2.5-10m/min |
| Efficiency | 85% | 85% | 85% | 85% | 85% |
| Power factor | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 |
| Roller diameter | R=200 | R=200 | R=200 | R=200 | R=200 |
| Insulation Class | H Class | H Class | H Class | H Class | H Class |
