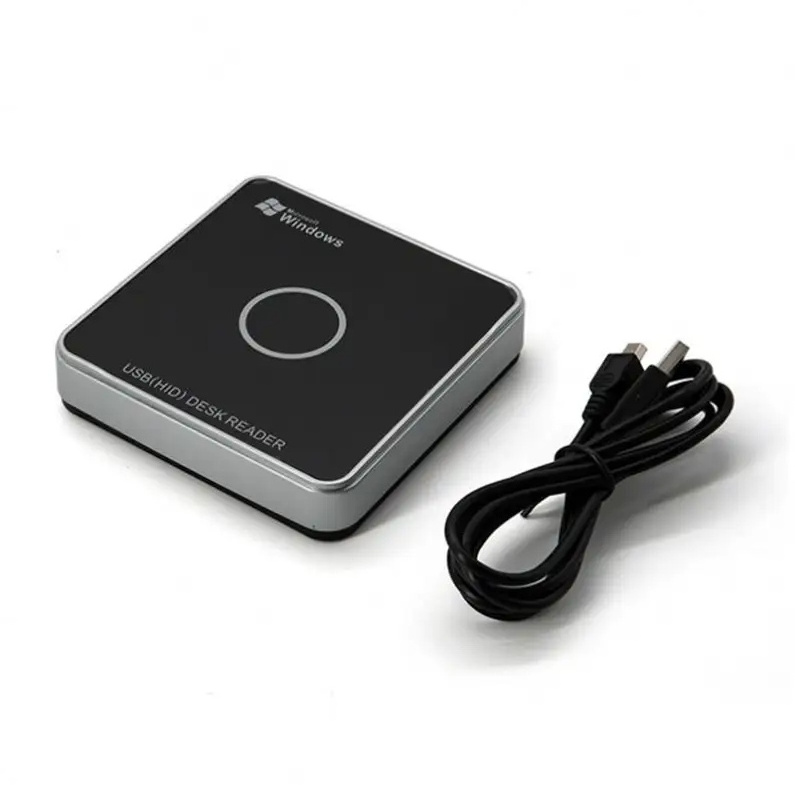

it is a small desktop reader&writer, compatible with ISO 18000-6C and ISO 18000-6B standards. Working frequency 902MHz to 928MHz. It is a small integrated reader&writer which use for short-distance identification or background card issuer management, very small and easy portable. Widely used in attendance / access control management, library management, consumer management and other fields.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ACM
-
Product Name:
-
Smart Desktop UHF Card Rfid Reader Writer
-
Interface:
-
USB
-
Read range:
-
5~10cm
-
Size:
-
107*107*23mm
-
Color:
-
Black
-
Output format:
-
10 digit dec(Defoult output format)
-
Power Consumed:
-
DC 5V
-
Read time:
-
<200ms
-
Read interval:
-
<0.5S
-
Weight:
-
150g
Quick Details
-
Frequency:
-
860-960mhz
-
Protocol:
-
ISO 18000-6C
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Product Name:
-
Smart Desktop UHF Card Rfid Reader Writer
-
Interface:
-
USB
-
Read range:
-
5~10cm
-
Size:
-
107*107*23mm
-
Color:
-
Black
-
Output format:
-
10 digit dec(Defoult output format)
-
Power Consumed:
-
DC 5V
-
Read time:
-
<200ms
-
Read interval:
-
<0.5S
-
Weight:
-
150g
Product Description
UHF Card Reader 868MHz EPC Gen 2 Global Class Passive Portable USB Desktop Reader
Detailed Images
|
Parameters
|
|
|
|
Working frequency::
|
CN standard(920~925MHz)
|
|
|
|
US standard(902~928MHz)
|
|
|
|
Other frequency standards (customized)
|
|
|
Protocol::
|
ISO18000-6C (EPC GEN2)
|
|
|
|
ISO18000-6B
|
|
|
Operation Mode:
|
Fixed Frequency or FHSS or Software Programmable
|
|
|
Antenna parameter :
|
2dBi circularly polarized antenna (built-in)
|
|
|
Output power:
|
12.5dBm~26dBm(Adjustable by software)
|
|
|
Reader&write range:
|
Reading Rang(Max):0.5m(related to the card or the environment)
|
|
|
|
Writing Rang(Max):0.2m(related to the card or the environment)
|
|
|
Working mode:
|
Active mode
|
|
|
|
Passive mode
|
|
|
|
Answer mode (Not recommend)
|
|
|
Interface
|
|
|
|
Voltage:
|
DC +5V
|
|
|
Data interface:
|
|
|
|
|
USB to virtual keyboard input
|
|
|
|
USB to virtual serial port(Customized)
|
|
|
|
|
|
|
Working environment
|
|
|
|
Working Temp:
|
-20℃~55℃
|
|
|
Storage Temp:
|
-40℃~85℃
|
|
|
Physical parameter
|
|
|
|
Size:
|
107mm×107mm×23mm
|
|
|
Net/gross Weight:
|
150g/250g
|
|
|
Accessories
|
|
|
|
Cable:
|
USB cable
|
|
|
SDK:
|
Free SDK
|
|
Application:
Logistics and Warehouse management;
Parking control system;
Manufacturing management;
Products anti-counterfeiting detection;
Other field: club management,library,student school rolls, attendance management and swimming pool system etc.
Product Features:
Small and square shape, suitable for indoor desk
Fast data read rate;
Multi-zone and multi-label reading;
Multi-protocol compatibility;
Logistics and Warehouse management;
Parking control system;
Manufacturing management;
Products anti-counterfeiting detection;
Other field: club management,library,student school rolls, attendance management and swimming pool system etc.
Product Features:
Small and square shape, suitable for indoor desk
Fast data read rate;
Multi-zone and multi-label reading;
Multi-protocol compatibility;
Packing & Delivery
Packaging and delivery Details:
Package: One piece in one box, 120 pieces in one carton
Port: Shenzhen or Hong Kong
Lead time: 3~5 days after the order confirmed
