Quick Details
-
Material:
-
export package, polypropylene
-
Weight:
-
220gram, 200g, 220g, 240g
-
Size:
-
dia. 2.5"*20inch
-
Weight (KG):
-
0.22 kg
-
Name:
-
water filter cartridge
-
Outline design size:
-
20" * 2.5"
-
pore size:
-
1 micron, 5 micron
-
Shape:
-
plain, needle, embossed for choice
-
type:
-
melt blown
-
function:
-
Filtering Suspended Matter, pre-filter
-
proceesing:
-
Pre-treatment+RO Desaliantion5-40 ℃
-
Feature:
-
Eco-friendly
Quick Details
-
Core Components:
-
PP FILTER CARTRIDGE
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JHM
-
Material:
-
export package, polypropylene
-
Weight:
-
220gram, 200g, 220g, 240g
-
Size:
-
dia. 2.5"*20inch
-
Weight (KG):
-
0.22 kg
-
Name:
-
water filter cartridge
-
Outline design size:
-
20" * 2.5"
-
pore size:
-
1 micron, 5 micron
-
Shape:
-
plain, needle, embossed for choice
-
type:
-
melt blown
-
function:
-
Filtering Suspended Matter, pre-filter
-
proceesing:
-
Pre-treatment+RO Desaliantion5-40 ℃
-
Feature:
-
Eco-friendly

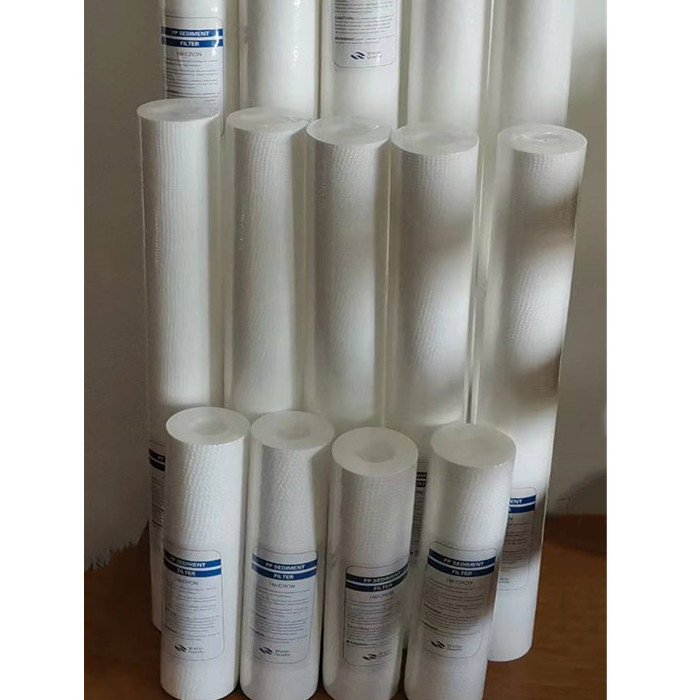

5 micron filter 20 inch sediment melt blown pp filter cartridge for whole house water filter system
Product introduction
PP filter is also called the PP meltblown filter, meltblown filter made of polypropylene superfine fiber tangles made of hot-melt, fiber randomly in space to form a three-dimensional porous structure, pore dimension filtrate flows along the gradient distribution in surface, deep, fine filter in one, can retain different size impurities. The filter accuracy range of 0.5 100 m, the flux is 1.5 times more than the same precision real peak filter, can be configured to cover different types of connectors to meet the various needs of engineering installation.
Features & Benefits
A. Economically priced
B. Provides sediment filtration and adsorption finished in one time process
C. High dirt-holding capacity
D. Recommended for chlorinated water application
E. Adsorption of organic substances
Applications
A. Plating solution
B. Solution of photograph developing
C. Solution to remove oil and aromatic
D. Oil and aromatic series in solution
E. Removing dissociative chlorine and volatine organic compounds(VOC) in solution
F. Drinking water and R.O pure water treatment
G. Remove smell,odor,organic pigment
H. Remove organic chemical
|
Item |
PP meltblown filter |
|
Shape |
Plain, needle d ,embossed |
|
material |
polypropylene |
|
Micron Rating |
1 µm, 5 µm |
|
Length |
10" ,20" ,30",40" |
|
OD (Outer Dia.) |
61-65mm/110-115mm |
|
ID (Inner Dia.) |
28mm; 30mm |
|
Gasket/O-ring |
Silicone/EPDM/Viton/TEV |
|
End Cap |
226/Fin , 222/Fin , 222/Flat 22 6 /Flat O-Ring |
|
Maximum differential pressure |
3 kg f/cm² |
|
Maximum operating temperature |
80℃ (172℉) at P≤1.0 bar (14psi) |
|
service life |
4000~6000 hours |
