Quick Details
-
Model Number:
-
XC-9610
-
Dimension:
-
213x213x165mm
-
Power Supply Mode:
-
DC24V/1A
-
SNR:
-
≥80dB
-
Output Power:
-
≤25W
-
Shell Material:
-
Mental
-
The body material:
-
Mental
-
Interface:
-
RJ45 Ethernet Port, Power Input
-
Weight:
-
1.4KG
-
S/N (Signal-to-Noise) Ratio:
-
AUX1:≥84dB AUX2:≥84dB MIC:≥80dB ,60Hz~18KHz
-
Frequency Response:
-
100Hz-18kHz
-
Power Supply:
-
DC 24V/1A or PoE (IEEE802.3af)
-
Network Protocol:
-
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
-
Audio Codec:
-
G.711 A-law, G.711 μ-law, G.722
-
Maximum SPL:
-
97dB±3dB
-
Optional Accessories:
-
Power Adapter, IEC C13 Power Cord (US/EU/UK/AU)
-
Key Words:
-
Ceilling Speaker
Quick Details
-
Warranty:
-
2 year
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Spon
-
Model Number:
-
XC-9610
-
Dimension:
-
213x213x165mm
-
Power Supply Mode:
-
DC24V/1A
-
SNR:
-
≥80dB
-
Output Power:
-
≤25W
-
Shell Material:
-
Mental
-
The body material:
-
Mental
-
Interface:
-
RJ45 Ethernet Port, Power Input
-
Weight:
-
1.4KG
-
S/N (Signal-to-Noise) Ratio:
-
AUX1:≥84dB AUX2:≥84dB MIC:≥80dB ,60Hz~18KHz
-
Frequency Response:
-
100Hz-18kHz
-
Power Supply:
-
DC 24V/1A or PoE (IEEE802.3af)
-
Network Protocol:
-
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
-
Audio Codec:
-
G.711 A-law, G.711 μ-law, G.722
-
Maximum SPL:
-
97dB±3dB
-
Optional Accessories:
-
Power Adapter, IEC C13 Power Cord (US/EU/UK/AU)
-
Key Words:
-
Ceilling Speaker
Product Parameters

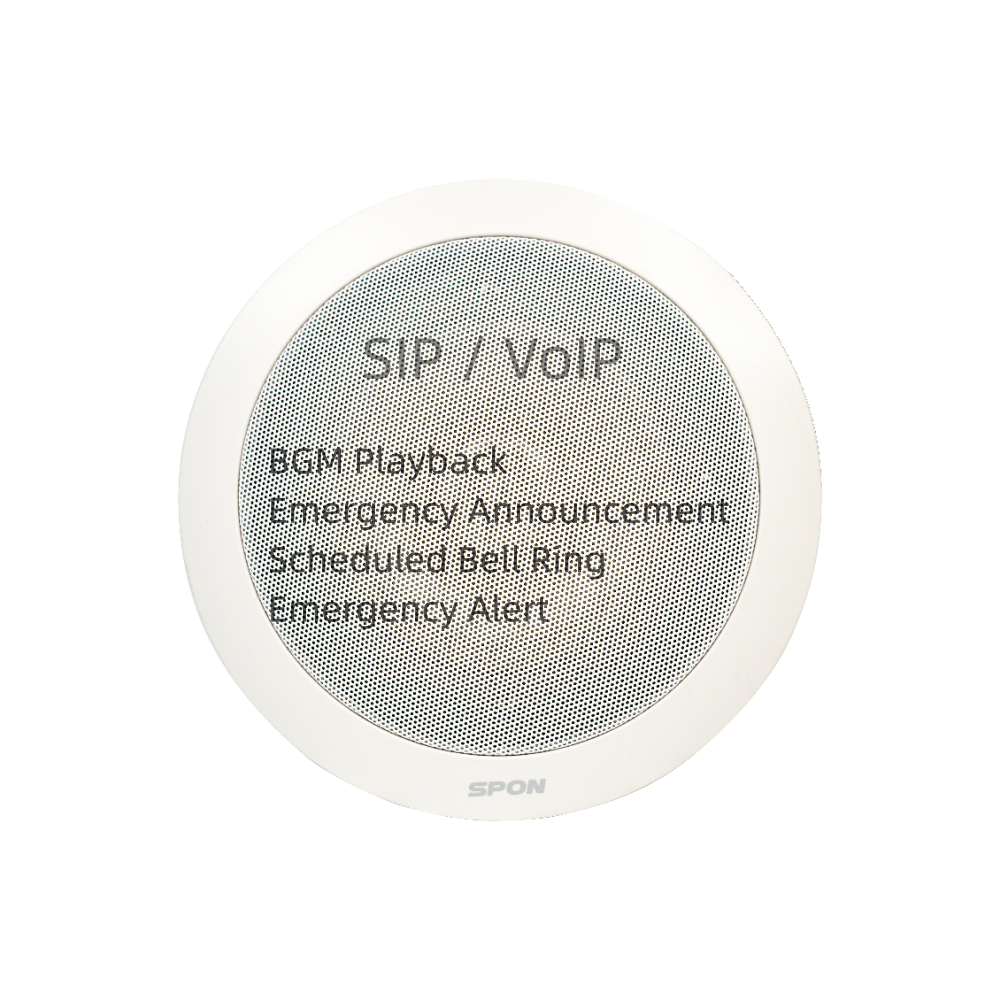

XC-9610 - IP PoE Ceilling Speaker
XC-9610 is a SIP compliant IP wall Mount speaker for voice paging, emergency notification, and background music. The IP POE speaker is capable of playing messages from any multicast source like bell schedule, announcement, background music and so on.
Common applications for the SPON XC-9615 IP ceiling speakerinclude schools, hospitals, retails stores, shopping centers and more.
User-Friendly Web Interface
The Network Ceiling Speaker is easy to configure through a user-friendly web interface. This simplifies the setup and management process for users.
All-in-One Speaker
This IP paging speaker is designed as an all-in-one solution, featuring a built-in network audio decoder, class-D digital amplifier, and DSP (digital signal processor). This integrated design ensures crystal-clear voice intelligibility at all times.
Dynamic Volume Control
An innovative feature of the system is dynamic volume control. The IP PoE speaker's output volume can be automatically adjusted based on the monitored ambient noise level. This ensures that the audio remains audible and clear, even in changing environmental conditions.
PoE (Power over Ethernet)
The IP PoE Speaker supports Power over Ethernet, which means it can be powered through the Ethernet cable. This feature reduces the need for additional power sources and simplifies installation.
SIP Endpoint Compatibility
The IP ceiling speaker is fully compliant with third-party SIP endpoints, making it compatible with most mainstream on-premise and cloud/hosted VoIP telephone systems. This compatibility allows for seamless integration into existing communication infrastructure.
|
Power Supply:
|
DC 24V/1A or PoE (IEEE802.3af)
|
|
|
|
|||
|
Power Consumption:
|
≤25W
|
|
|
|
|||
|
Rated Power Output:
|
20W (at DC 24V/1A powered)
15W (at PoE powered) |
|
|
|
|||
|
Network Protocol:
|
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
|
|
|
|
|||
|
Audio Codec:
|
AUX1:≥84dB AUX2:≥84dB MIC:≥80dB ，60Hz～18KHz
|
|
|
|
|||
|
Maximum SPL:
|
97dB±3dB
|
|
|
|
|||
|
S/N (Signal-to-Noise) Ratio
|
AUX1:≥84dB AUX2:≥84dB MIC:≥80dB ，60Hz～18KHz
|
|
|
|
|||
|
Frequency Response:
|
100Hz-18kHz
|
|
|
|
|||
|
Interface:
|
1×RJ45 Ethernet Port, 1×Power Input
|
|
|
|
|||
|
IP Rating:
|
IP65
|
|
|
|
|||
|
Dimensions:
|
Φ213×165mm
|
|
|
|
|||
|
Weight:
|
1.4kg
|
|
|
|
|||
|
Standard Accessories:
|
1×2-Pin Terminal Block Connector, 1×Installation Manual
|
|
|
|
|||
|
Optional Accessories:
|
DC 24V/1A Power Adapter (US/EU/UK/AU)
|
|
|
|
|||
