Quick Details
-
Weight:
-
400kg
-
Product name:
-
500 kg gas Steam Generator
-
Keywords:
-
Gas Steam Generator
-
Color:
-
Customer's Requirement
-
Application:
-
School
-
Material:
-
Thicker Stainless Steel
-
Thermal efficiency:
-
98%
-
Design fuel:
-
LPG,natural gas
-
Rated evaporatain:
-
500 kg/h
-
Working pressure:
-
0.7 MPa
-
brand:
-
xinda boiler
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Xinda
-
Dimension(L*W*H):
-
1050*2420mm
-
Weight:
-
400kg
-
Product name:
-
500 kg gas Steam Generator
-
Keywords:
-
Gas Steam Generator
-
Color:
-
Customer's Requirement
-
Application:
-
School
-
Material:
-
Thicker Stainless Steel
-
Thermal efficiency:
-
98%
-
Design fuel:
-
LPG,natural gas
-
Rated evaporatain:
-
500 kg/h
-
Working pressure:
-
0.7 MPa
-
brand:
-
xinda boiler
Technical Parameter
|
Technical Parameter
|
|
|
|
|
|
|
|
|||||||
|
Type
|
|
LSS0.05-0.7-Y/Q
|
LSS0.1-0.7-Y/Q
|
LSS0.2-0.7-Y/Q
|
LSS0.3-0.7-Y/Q
|
LSS0.5-0.7-Y/Q
|
LSS1.0-0.7-Y/Q
|
|||||||
|
Rated evaporation capacity(kg/h)
|
|
50
|
100
|
200
|
300
|
500
|
1000
|
|||||||
|
Rated pressure(MPa)
|
|
0.4/0.7
|
0.4/0.7
|
0.4/0.7
|
0.4/0.7
|
0.4/0.7
|
0.4/0.7
|
|||||||
|
Saturated steam temperature(℃)
|
|
150/180
|
150/180
|
170
|
170
|
170
|
170
|
|||||||
|
Fuel consumption
|
diesel oil(kg/h)
|
3.2
|
6.4
|
12.8
|
19.2
|
31.8
|
63.6
|
|||||||
|
|
Coal gas(Nm3/h)
|
8.9
|
17.7
|
35.5
|
53.2
|
88.7
|
177.4
|
|||||||
|
|
Natural gas(Nm3/h)
|
4.0
|
7.9
|
15.7
|
24.8
|
39.7
|
79.3
|
|||||||
|
|
Liquefied gas(kg/h)
|
3.3
|
6.5
|
13
|
19.5
|
33
|
66
|
|||||||
|
Host Size(mm)
|
|
600*1300
|
780*1530
|
860*2100
|
980*2380
|
1050*2420
|
1440*2990
|
|||||||
Product Description
500 kg steam boiler efficiency, industrial steam generator Main Features
1.Integration of burning configuration system.
Design the boiler with consideration of steam generator and burner to make generator burning system has the best matching,it is organic combination for energy-saving and environment protection.
2.Advanced fully automatic control function.
Adopt automatic micro computer program to control,automatic pressure control, flame detection,water shortage protect, auto alarm etc.Just push the button and come to automatic running statue, all safety protection device start work, unnecessary for person on duty.
3.Safe and scientific structure design.
Equipped with safe valve, pressure controller, water level controller safety interlock device, absolutely safe and reliable. Adopt fin type tubular furnace structure to compensate the thermal expansion,avoid thermal expansion and contraction stress, make boiler structure safe and reliable, prolong service life.
4.Produce good quality steam quickly.
Small water capacity and big steam tank design to produce steam quickly,steam-water separator inside to guarantee high quality saturated steam.
Detailed Images

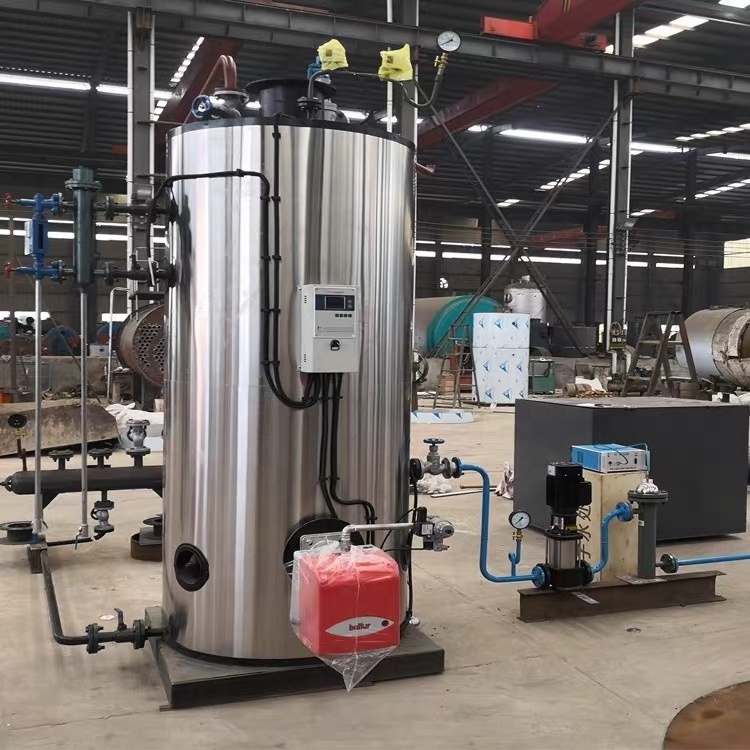

Vertical Fire tube structure,small installing space. boiler chamber could be opened,easy maintenance and installation.
With High Quality Safety Valve,Stop Valve,Pressure controller,making sure boiler safety operating.
Imported Advanced Burner High Efficiency
With Patent White black water level gauge,easy checking water level with patent with white- black water level gauge,easy checking water level.
Installation
Product Application
500 kg steam boiler efficiency, industrial steam generator types application:
Home-use:for heating water,cooking,high-temperature sterilization etc.
Industry-use:Provide steam for steam iron and ironing table,reaction kettle,jacket kettle,concrete curing,etc.
Packing & Delivery
|
Packaging
|
|
|
|
Packaging Details
|
|
|
|
Delivery
|
|
|
|
Delivery
Details
|
We have a professional transportation team to ensure the products are not damaged during transportation.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Company Introduction
Xinxiang Xinda Boiler Container Co.,Ltd.
Xinxiang Xinda Boiler Container Co.,Ltd.is comprehensive boilers,pressure containers manufacturing enterprise which specialized in R&D,manufacture and installation,renovation and maintenance.
Our company owns a set of reliable quality inspection system,and also with advanced production equipments and testing methods.Our company professionally products"XDZ"brand boilers,pressure containers,supporting equipments to these products,and wasted to oil machines.Our products meets national and industry relative standards.They are safe,reliable,saving energy and protecting environment,and also with excellent quality.Our products are sold to all over the domestic and abroad.
