It adds servo system for color registration to ensure the stamping position is accurate.With fast speed and low energy consumption.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/50HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Model Number:
-
LC-HS300S
-
Usage:
-
hot foil stamp
-
Dimensions(L*W*H):
-
1240*890*1660mm
-
Weight:
-
300 KG
-
ITEM:
-
Pneumatic Embossing Stamping Machine
-
model numbe:
-
LC-HS300S
-
hot Stamping plane plate size:
-
200*150mm
-
cylinder size:
-
60mm
-
Wattage:
-
3500W
-
Max stamping pressure:
-
4900N
-
Max stamping speed:
-
1000 pcs/hr
-
Machine Dimensions:
-
1240*890*1660mm
-
power supply:
-
220V SINGLE Phase
Quick Details
-
Condition:
-
New
-
Plate Type:
-
GRAVURE
-
Color & Page:
-
single color
-
Voltage:
-
220V/50HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Model Number:
-
LC-HS300S
-
Usage:
-
hot foil stamp
-
Dimensions(L*W*H):
-
1240*890*1660mm
-
Weight:
-
300 KG
-
ITEM:
-
Pneumatic Embossing Stamping Machine
-
model numbe:
-
LC-HS300S
-
hot Stamping plane plate size:
-
200*150mm
-
cylinder size:
-
60mm
-
Wattage:
-
3500W
-
Max stamping pressure:
-
4900N
-
Max stamping speed:
-
1000 pcs/hr
-
Machine Dimensions:
-
1240*890*1660mm
-
power supply:
-
220V SINGLE Phase
Product Information

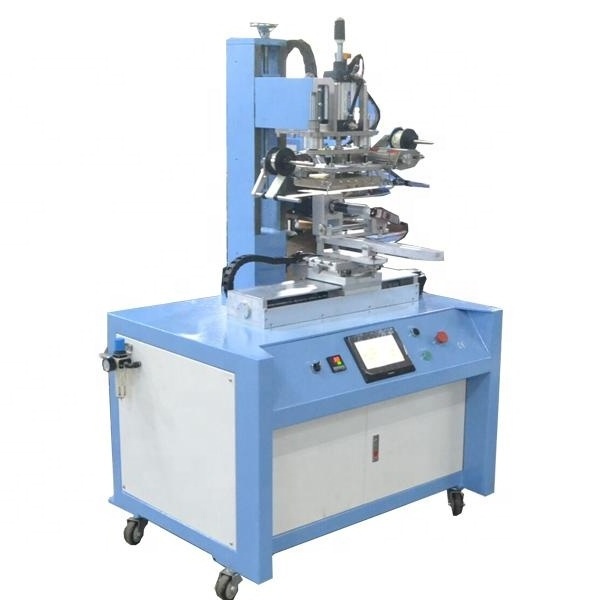

PLC Control Servo Positioning Hot Stamping Machine HS300S
This hot stamping machine is designed for stamping on the surface of round objects like tube, bottles.Printing objects such as lipstick, cosmetic bottles, scour bottles, drink bottles, etc.
Product Paramenters
|
1. Model number
|
HS300S
|
|
2.Sensor
|
Germany Brand Color Sensor
|
|
3.Core
|
SERVO Motor & PLC
|
|
4.Hot Stamping plane plate size
|
200*150mm
|
|
5.Cylinder size
|
60mm
|
|
6.Wattage
|
3500W
|
|
7.Max.stamping pressure
|
4900N
|
|
8.Max.stamping speed
|
1000 pcs/hr
|
|
9.warranty
|
one year
|
|
10.Gross dimension
|
124*89*166cm
|
|
11.Gross weight
|
300KG
|
Feature
|
1. Add servo system for color registration. The machine should be PLC contorl, left and right by servo system, the frame move by electric, roating by servo system, do not need gear,with color sensor .
|
|
2.With the crank design,which has powerful stamping pressure and little consumption of air pressure.
|
|
3.Worktable is adjustable in front-back,left-right direction and revolvable,which ensures the quick and safe operation.
|
|
4.Stamping pressure,temperature and time are adjustable.
|
|
5.Automatic foil feeding and rolling with adjustable function.
|
|
6.Height of the stamping head is adjustable.
|
