Quick Details
-
Throat Depth (mm):
-
20 mm
-
Brand Name:
-
ZYMT
-
Power (kW):
-
18.5 kW
-
Weight (KG):
-
10800 KG
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Size
-
Marketing Type:
-
Other
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
8*3200 Hydraulic Shearing Machine
-
material:
-
weld steel
-
controller:
-
Italy Maper MPF
-
electrics:
-
France Brand
-
hydraulic valve:
-
USA First
-
seal ring:
-
Japan Brand
-
pump:
-
USA Brand
-
pipe connector:
-
Germany Brand
-
specification:
-
CE, ISO
Quick Details
-
Max. Cutting Width (mm):
-
3200 mm
-
Max. Cutting Thickness (mm):
-
16 mm
-
Blade Length (mm):
-
3200 mm
-
Throat Depth (mm):
-
20 mm
-
Brand Name:
-
ZYMT
-
Power (kW):
-
18.5 kW
-
Weight (KG):
-
10800 KG
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Size
-
Marketing Type:
-
Other
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
8*3200 Hydraulic Shearing Machine
-
material:
-
weld steel
-
controller:
-
Italy Maper MPF
-
electrics:
-
France Brand
-
hydraulic valve:
-
USA First
-
seal ring:
-
Japan Brand
-
pump:
-
USA Brand
-
pipe connector:
-
Germany Brand
-
specification:
-
CE, ISO

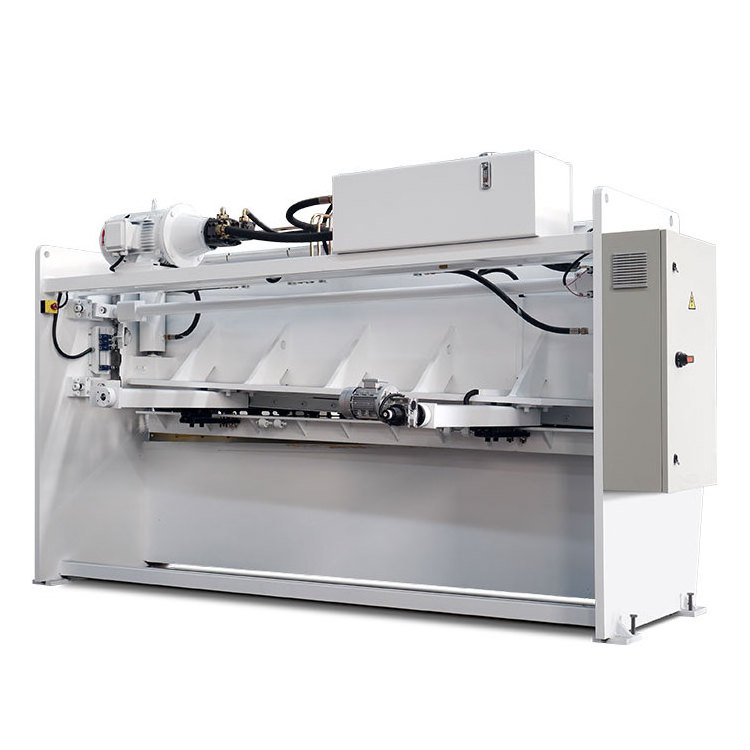

Main introduction of NC 8*3200 hydraulic shearing machine (NC guillotine shear):
The 8*3200 hydraulic shearing machine is provided for cutting metal-steel sheet plates, and capacity is based on plate strength of 450N/mm2. Please correct the plate thickness if cut other material plate with different strength. Sheet plate welded structure is adopted, easy operation and reliable performance. Cutting is driven by hydraulic pressure, and return is by nitrogen gas cylinder, which can protect the machine from overload. Blade gap with indicator for a handy and prompt adjustment. Alignment device with lighting, cutting stroke can be adjusted to improve the efficiency of cutting narrow plates. Front support arms and back gauge are equipped. The back gauge is mechanic transferring, position is positioned by NC controller through the encoders. The front supporting arms are ruler counted. Rolling material support ball is provided on worktable to minimize fish tail with sheet bar and to reduce frictional resistance.Installed safety fence, ensure the operation safety.
Main features of our NC 8*3200 hydraulic shearing machine as follows:
1. Fully steel welded structure, with excellent rigidity and stability;
2. Assisting blade pedestal on worktable is convenient for micro adjustment;
3. Support ball is provided on worktable convenient operating for rolling plate;
4. Provided with counting function for shearing to decrease the numerous artificial counting;
5. Advanced hydraulic integrated system is employed and the pipeline connection is minimized to ensure the system reliability and safety;
6. International standard electrics and switches;
7. Front arms with ruler fixed on worktable;
8. Blades gap adjustment by hand wheel;
9. Motorised back gauge, reduce speed through gear;
10. Various brands of NC controllers for options: Estun E21S / E200S, Delem DAC310, DAC360, Elgo P40, Maper HT071, ect.
