China Automatic Door Hardware Battery Powered DC 12V Supply Access Control Exit Hands Free Touch plate Switch

China Automatic Door Hardware Battery Powered DC 12V Supply Access Control Exit Hands Free Touch plate Switch

FOB Reference Price: Get Latest Price

≥2 Sets

US $49

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: M-512SH

Type:: AUTOMATIC DOOR SWITCH

Sensing Range:: 0-18cm adjustment

Input voltage:: AC/DC 12-30V

Sensor:: Infrared

Sensing:: Hand wave

Distance:: 0-18cm adjustment

Feature:: Wireless/wired

Inner Panel size:: 129(L)x129(W)x46(H) / 121(L)x51(W)x45.5(H)

outter receiver size:: 123(L)x50(W)x32(H)mm / 110(L)x30(W)x15(H)mm

Resolution:: 1280 X 720

Data Storage Options:: Memory Card

Certification:: CE

Quick Details

Voltage:: AC/DC 12-30V

Place of Origin:: Guangdong, China

Brand Name:: CANBO

Model Number:: M-512SH

Type:: AUTOMATIC DOOR SWITCH

Sensing Range:: 0-18cm adjustment

Input voltage:: AC/DC 12-30V

Sensor:: Infrared

Sensing:: Hand wave

Distance:: 0-18cm adjustment

Feature:: Wireless/wired

Inner Panel size:: 129(L)x129(W)x46(H) / 121(L)x51(W)x45.5(H)

outter receiver size:: 123(L)x50(W)x32(H)mm / 110(L)x30(W)x15(H)mm

Resolution:: 1280 X 720

Data Storage Options:: Memory Card

Certification:: CE

Product Description

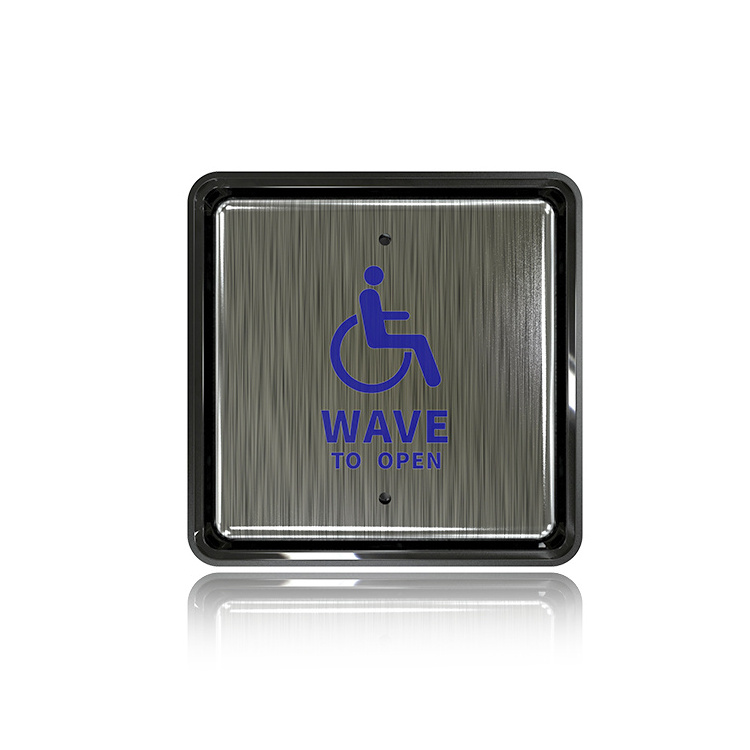

Canbo M-512SH Wall Mounted 0-18cm Hand Sensing Pad Battery Powered Sensor Switch For Automatic Glass Sliding Gates

In addition to the traditional push-button switches (such as CNB-202), light-touch and touch-free induction switches have also been strongly welcomed by the public recently.

This series of switches are specially designed for automatic door control. The large stainless steel panel design is simple and beautiful, and the surface is equipped with sign instructions and light indicators, make to operate clearly.

At the same time, in order to facilitate different door frames and customer needs, small narrow strip shape panels are also designed, and both wireless and wired models are available to choose from, making installation and use more flexible and convenient.

CNB-512 Wireless Non-touch Infrared Switches

1, M-512 item is wireless type, and consist of a large stainless steel switch and a receiver.

2, Adopts infrared modulation and demodulation, which is not easy to be misjudged by interference.

3, High sensitivity infrared , quick response.

4, Wireless transmission adopts 2.4g wireless communication technology, with good frequency consistency and high wireless transceiver stability.

5, Receiver with large capacity output, can be used with automatic door and access control.

6, Non - contact induction with hands or reflective objects, clean and hygienic.

7, The induction distance is adjustable from 3-30cm for different occasions.

CNB-512S Wireless Non-touch Sensor Switches

1, M-512S item is wireless type, and consist of a large stainless steel switch and a receiver.

2, The imported capacitive sensor chip is adopted, and the metal panel on surface is used as the sensor antenna.
3, B y detecting the charge change brought by the human hand, the induction movement of the human hand can be judged to realize the key function.
4, Wireless transmission adopts 2. 4G wireless communication technology, unique frequency hopping technology, and high wireless transceiver stability.
5, Receiver with large capacity output, can be used with automatic door and access control.
6, Replace the traditional mechanical contact switch, non-contact sensing by hand, clean and hygienic.
7, The sensing distance is adjustable from 0-8CM for different occasions.

CNB-508 Narrow Wireless Non-touch Switches

CNB-508S Narrow Wireless Non-touch Switches

CNB-513 Wired Non-touch Infrared Switches

CNB-514 Narrow Wired Non-touch Switches

CNB-520 Wireless Non-touch Disabled Switches

CNB-521 Wired Non-touch Disabled Switches

Specification

Item	Wireless non-touch switch	Wireless non-touch switch	Wireless non-touch switch
Brand	Canbo	Canbo	Canbo
Model	CNB-508/512	CNB-508S/512S	CNB-508D/512D
Application	building/office/mall/hospital	building/office/mall/hospital	building/office/mall
Certificate	ISO9001, CE	ISO9001, CE	ISO9001, CE
Power input	AC/DC 12V~30V	AC/DC 12V~30V	AC/DC 12V~30V
Main	Infrared	Capacitive sensor chip	Infrared
Emission current	10 mA	12 mA	10 mA
Launch distance	More than 30 meters	More than 30 meters	More than 30 meters
Diamension(panel)	Large129(L)×129(W)×46(H)	Narrow121(L)×51(W)×45.5(H)	121(L)×51(W)×45.5mm(H)
Diamension(receiver)	110(L)×30(W)×15mm(H)	110(L)×30(W)×15mm(H)	123(L)×50(W)×32mm(H)
Warranty	1 Year	1 Year	1 Year
