Quick Details
-
Model Number:
-
TOYI-15N
-
Brand Name:
-
TOYI
-
Product Name:
-

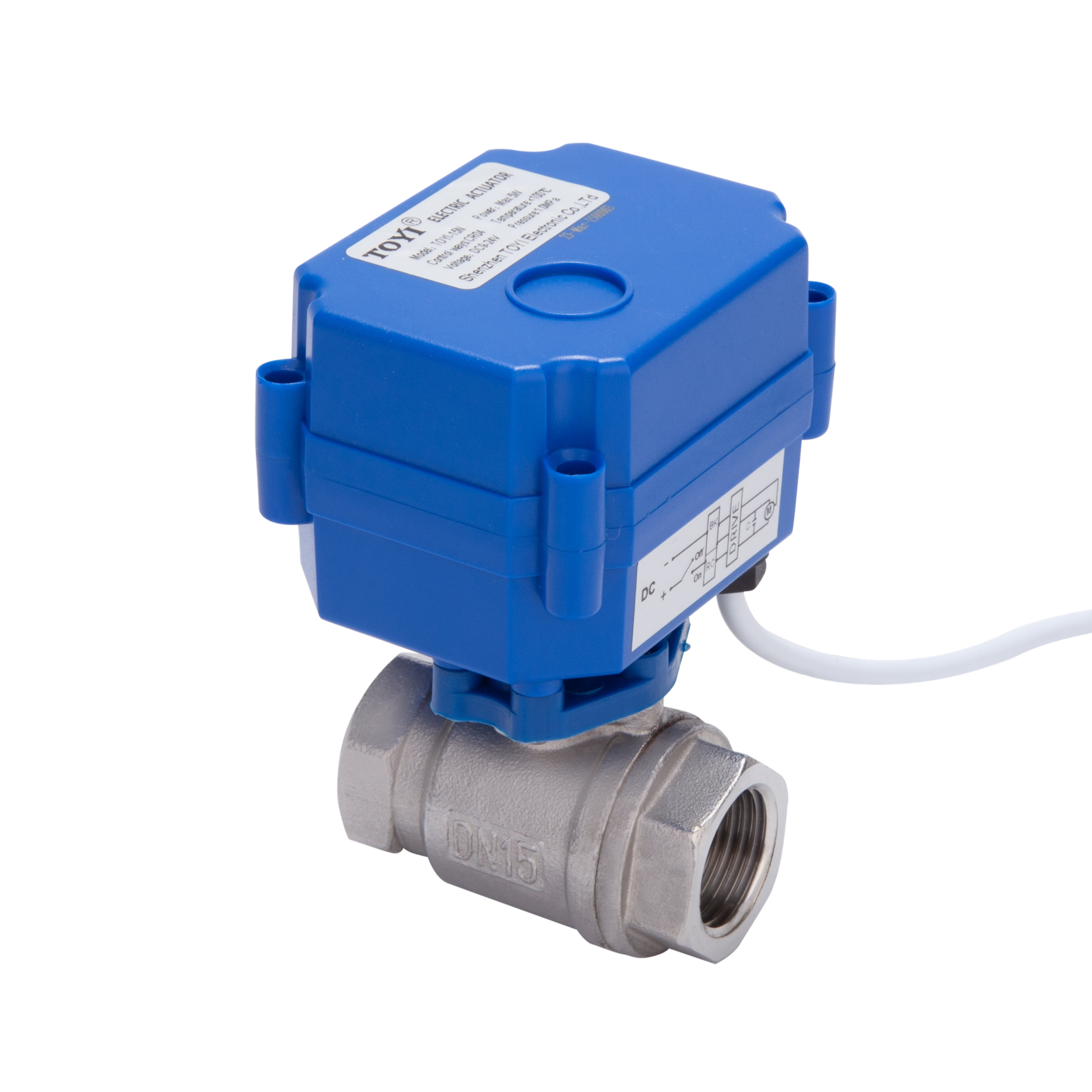

2 way motorized ball valve stainless steel
-
Body Material:
-
Brass/SS316/SS304
-
Connection:
-
BSP/NPT
-
Size:
-
DN8-DN25, 1/4"-1"
-
Voltage:
-
DC3-6V/12V, AC/DC9-24V, AC220V
-
Output Torque:
-
Max2.0NM
-
Open/close time:
-
<5S
-
Working pressure:
-
Max1.0MPa
-
Protection grade:
-
IP65
-
Certificate:
-
CE
Quick Details
-
Port Size:
-
DN8-DN25, 1/4"-1"
-
Warranty:
-
2 years
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
TOYI-15N
-
Brand Name:
-
TOYI
-
Product Name:
-
2 way motorized ball valve stainless steel
-
Body Material:
-
Brass/SS316/SS304
-
Connection:
-
BSP/NPT
-
Size:
-
DN8-DN25, 1/4"-1"
-
Voltage:
-
DC3-6V/12V, AC/DC9-24V, AC220V
-
Output Torque:
-
Max2.0NM
-
Open/close time:
-
<5S
-
Working pressure:
-
Max1.0MPa
-
Protection grade:
-
IP65
-
Certificate:
-
CE
Product Description
valve electronic 2 way motorized ball valve brass electric motorised motor operated control valve for irrigation
1,Metal gearbox and POM gear design, low noise, perform reliably .
2,Long service life: more than 100000 circles.
3,Electric limit and machinery limit design, located accurately, avoid gear run continuously.
4,Mufti-angle assembling, easy to install.
5,Float ball structure, no leakage,especially suitable for heavy pollution conditions.
2,Long service life: more than 100000 circles.
3,Electric limit and machinery limit design, located accurately, avoid gear run continuously.
4,Mufti-angle assembling, easy to install.
5,Float ball structure, no leakage,especially suitable for heavy pollution conditions.
1.Heat energy meters, fire work, save water system.
2.Auto control system, industrial mini auto control equipment.
3.Water saving equipment, drinking water equipment.
4.Air-conditioning fan coin(HVAC).
2.Auto control system, industrial mini auto control equipment.
3.Water saving equipment, drinking water equipment.
4.Air-conditioning fan coin(HVAC).
|
Product Model
|
Rated Voltage
|
Working current
|
Output torque
|
Open/close time
|
Size
|
|
CWX-15Q
|
DC3-6V
DC12V
AC/DC9-24V
AC220V
AC85-265V
|
Max100mA
(CR04 except Max150mA)
|
Max1.5NM
|
<3s
|
DN8-DN20
|
|
CWX-15N
|
|
|
Max2.0NM
|
<5s
|
DN8-DN32
|
|
Working pressure
|
Power
|
Medium temperature
|
Control mode
|
IP Grade
|
Special function
|
|
Max1.0Mpa
|
<3W
|
0-90℃
|
CR01 CR02 CR02+ CR03 CR03A CR04 CR05
|
IP65
|
CR01 CR02 CR03 CR04(with singal feedback)
|
|
Brass
|
Connection
|
Sizes
|
d(mm)
|
H(mm)
|
L(mm)
|
|
|
Both female thread
Full-port
|
DN8
|
8
|
46
|
31
|
|
|
|
DN15
|
15
|
57
|
38
|
|
|
|
DN20
|
20
|
71
|
45
|
|
|
|
DN25
|
23.5
|
72
|
49
|
|
|
Both female thread Reduce-port
|
DN10
|
8
|
46
|
31
|
|
|
|
DN20
|
15
|
66
|
38
|
|
|
|
DN25
|
20
|
72
|
47
|
|
|
|
DN32
|
25
|
86
|
60
|
|
|
Vertical
Three-way
|
DN15
|
12
|
63
|
49
|
|
|
|
DN20
|
15
|
66
|
53
|
|
|
Female-male thread
|
DN15
|
15
|
63
|
38
|
|
|
|
DN20
|
15
|
66
|
38
|
|
|
|
DN32
|
20
|
76
|
50
|
|
|
Both male thread
|
DN15
|
15
|
68
|
38
|
|
SS304
|
Both female thread
|
DN8
|
8
|
46
|
31
|
|
|
|
DN10
|
8
|
46
|
30.5
|
|
|
|
DN15
|
15
|
55
|
38
|
|
|
|
DN20
|
15
|
63
|
39
|
|
|
|
DN20
|
20
|
71
|
45
|
|
|
|
DN25
|
20
|
75
|
47
|
|
|
|
DN25
|
25
|
72
|
49
|
