Quick Details
-
Optical transmitter Wavelength:
-
1310±20nm
-
Frequency range:
-
47~862MHz
-
Optical transmitter material:
-
Original import
-
RF input impedance:
-
75 Ω
-
Laser type:
-
DFB laser
-
Communication Interface:
-
RS232 (optional)
-
SNMP Interface:
-
RJ45
-
Key words:
-
Optical transmitter
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Product name:
-
Mini FTTH optical transmitter
-
Dimension:
-
140*90*26mm
-
Optical transmitter Wavelength:
-
1310±20nm
-
Frequency range:
-
47~862MHz
-
Optical transmitter material:
-
Original import
-
RF input impedance:
-
75 Ω
-
Laser type:
-
DFB laser
-
Communication Interface:
-
RS232 (optional)
-
SNMP Interface:
-
RJ45
-
Key words:
-
Optical transmitter

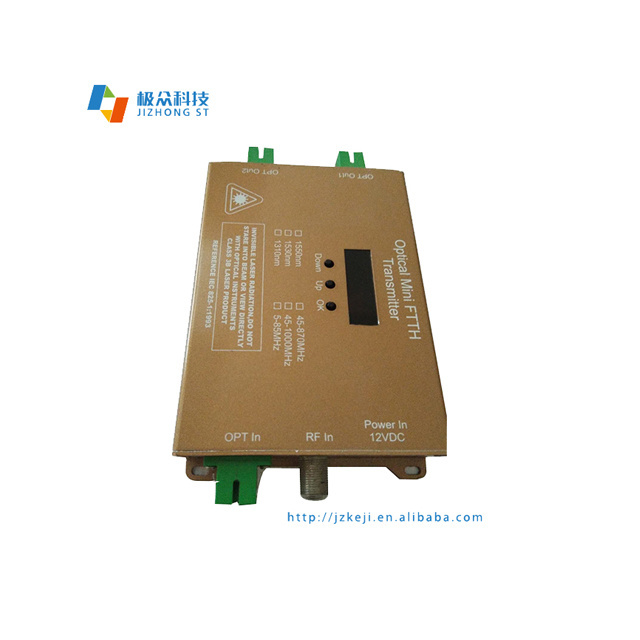

1550nm Mini optical transmitter HFC FTTH CATV PON WDM Mini Optical Node / Receiver / Transmitter
Functional characteristics:
1. Adopting original imported famous high performance DFB laser with excellent high linearity and stable output power.
2. It adopts CPU processor matching with automatic monitoring system circuit, which guarantees the stable power output and prolong service life of laser.
3. Low power loss design and low working temperature.
4. 5-1000MHz optimized circuit design, user can custom your desired frequency bandwidth based on the system.
6. With external power supply adapter, it is convenient to maintain and operate.
Technical parameters:
|
Item |
Unit |
Technical spec. |
|
Optical output wavelength |
nm |
1310/1550±20 |
|
Frequency range |
MHz |
47-1000 |
|
Laser type |
|
DFB laser |
|
In-band flatness |
dB |
±0.75 |
|
RF input level |
dBµV |
72 ~ 82 |
|
Optical connector type |
|
FC/APC or SC/APC |
|
Input reflection loss |
dB |
≥16 |
|
C/N |
dB |
≥ 51 |
|
C/CSO |
dB |
≥ 60 |
|
C/CTB |
dB |
≥ 65 |
|
AGC controlling range |
dB |
±5 |
|
MGC controlling range |
dB |
0~10 |
|
Optical return loss |
dB |
45 |
|
Power voltage |
V |
DC12V/1A |
|
Power consumption |
W |
≤ 8 |
|
Dimension(L*W*H) |
mm |
140*90*26 |
