Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Alixd or custom
-
Dimension(L*W*H):
-
customized
-
Weight:
-
1 KG
-
Warranty:
-
One year
-
Working Temperature Range:
-
1 - 250 ℃
-
Core Components:
-
silicone heater
-
Size:
-
custom
-
Thickness:
-
1.5mm(standard)
-
Wattage:
-
customized
-
Max temperature:
-
220-230 degree
-
Back adhesive:
-
3M 467 / 468 / 300LSE options
-
Compressive strength:
-
2500V/5S
-
Product name:
-
silicone heater panel
-
Power deviation:
-
5%
-
Function:
-
heating or warming
Quick Details
-
Type:
-
Electric Heater
-
Power Source:
-
Electric
-
Voltage:
-
customized, customized
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Alixd or custom
-
Dimension(L*W*H):
-
customized
-
Weight:
-
1 KG
-
Warranty:
-
One year
-
Working Temperature Range:
-
1 - 250 ℃
-
Core Components:
-
silicone heater
-
Size:
-
custom
-
Thickness:
-
1.5mm(standard)
-
Wattage:
-
customized
-
Max temperature:
-
220-230 degree
-
Back adhesive:
-
3M 467 / 468 / 300LSE options
-
Compressive strength:
-
2500V/5S
-
Product name:
-
silicone heater panel
-
Power deviation:
-
5%
-
Function:
-
heating or warming
Product Descriptions

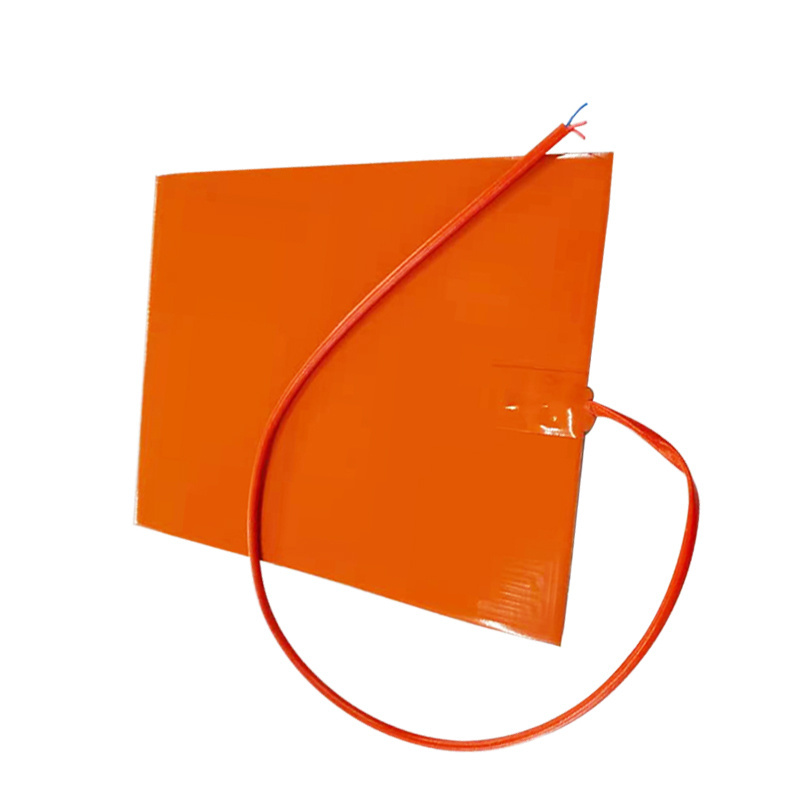

Electric food heating pad silicone rubber Heating Pad element
Desriptions of Silicone heater as below
-- Widely used on industry ,agriculture, medical and household electrical appliances
-- Heat fast and high efficiency thermal conversion
-- Light and flexible heater
-- Can be customized the practice power, voltage ,size,customer's logo and more
-- Lowest price and fast delivery of the goods
-- Professional team after service service
|
Specifications
|
|
|
|
|
||||
|
Main Material
|
|
Silicone(V0,V1) and imported silicone V0 options
|
|
|
||||
|
Temperature Rating
|
|
(250°C)maximum operating
|
|
|
||||
|
Size/Shape Limitations
|
|
Maximum width of 48 inches, no maximum length
|
|
|
||||
|
Thickness
|
|
normally 0.03 inch/ 0.75mm (Single-Ply),0.06 inch / 1.5mm(Dual-Ply),support custom
|
|
|
||||
|
Voltage
|
|
Any AC or DC (3V-660V), or 3phase
|
|
|
||||
|
Power density
|
|
Normal 0.03-0.8watts per square centimeter,maximum 3W per square centimeter |
|
|
||||
|
Power lead wire
|
|
Silicone rubber, SJ Power Cord, or Teflon insulated stranded wire options,usually 100cm length or as requested |
|
|
||||
Product accessories can be added
1.Adhesive gum
2. Add insulation cotton
3. Heating in the air, the highest temperature is 180℃
4. USB interface, thermistor can be added PT100 NTC
2. Add insulation cotton
3. Heating in the air, the highest temperature is 180℃
4. USB interface, thermistor can be added PT100 NTC
PLUG
USB
3M Glue
thermal
thermostat
pt100
